GX71R-XEMGE (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1988
Engine
1GE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )GX71,RX7#..CBR,EFI
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-22030 |
GX71..EFI |
1 | ||
| 88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR | ||||
| 88606-22030 |
GX71..EFI |
1 | ||
| 88683A - HOSE (ENGINE TO MAGNET VALVE) | ||||
| 88689-22070 |
GX71..EFI |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22350 |
GX71..EFI |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22350 |
GX71..EFI |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22350 |
GX71..EFI |
1 | ||
| Common parts | ||||
| 21791-60010 | ||||
| 21821-15010 | ||||
| 90464-00156 | ||||
| 91651-40612 | ||||
| 91651-60814 | ||||
| 96132-30600 | ||||

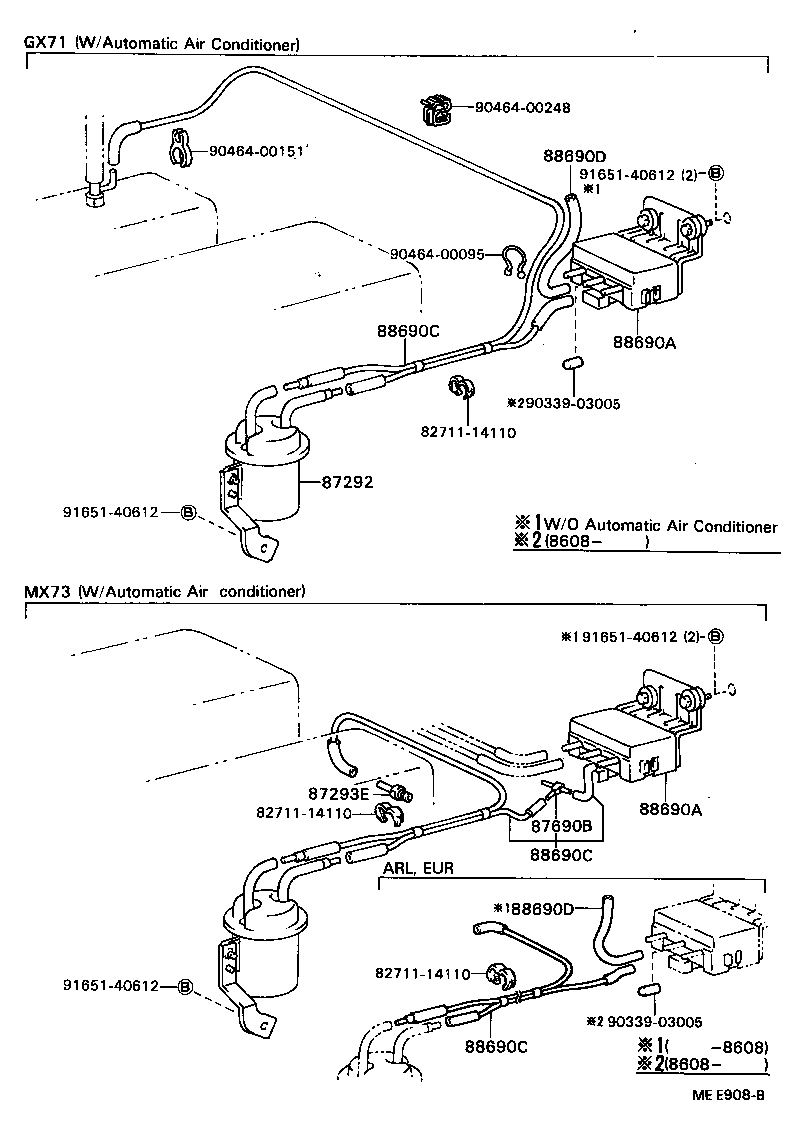

(8408- )GX71,MX73..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87292 - TANK, VACUUM | ||||
| 87292-22040 |
GX71,MX73..RHD..GLX |
1 | ||
| 88690A - VALVE ASSY, COMBINATION | ||||
| 88690-22321 |
GX71,MX73..GLX..(ARL,GEN) |
1 | ||
| 88690-22320 |
GX71,MX73..RHD..GLX |
1 | ||
| 88690A - VALVE ASSY, COMBINATION | ||||
| 88690-22321 |
GX71,MX73..GLX..(ARL,GEN) |
1 | ||
| 88690-22320 |
GX71,MX73..RHD..GLX |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 88807-22110 |
GX71..RHD |
1 | ||
| 88807-22050 |
GX71..RHD |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 88807-22110 |
GX71..RHD |
1 | ||
| 88807-22050 |
GX71..RHD |
1 | ||
| 88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER) | ||||
| 88807-22110 |
GX71..RHD |
1 | ||
| 88807-22050 |
GX71..RHD |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10330 |
GX71..RHD *H,L=230 |
1 | ||
| 88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER) | ||||
| 95411-10330 |
GX71..RHD *H,L=230 |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90339-03005 | ||||
| 90464-00095 | ||||
| 90464-00151 | ||||
| 90464-00248 | ||||
| 91651-40612 | ||||
(8408-8608)GX71,MX7#..LHD..EUR ; (8408- )GX71..LHD..EFI ; (8510- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90464-00141 | ||||
| 90464-00151 | ||||
| 90464-00175 | ||||
| 90464-00248 | ||||
