GX71R-XEMGE (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1988
Engine
1GE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )GX71

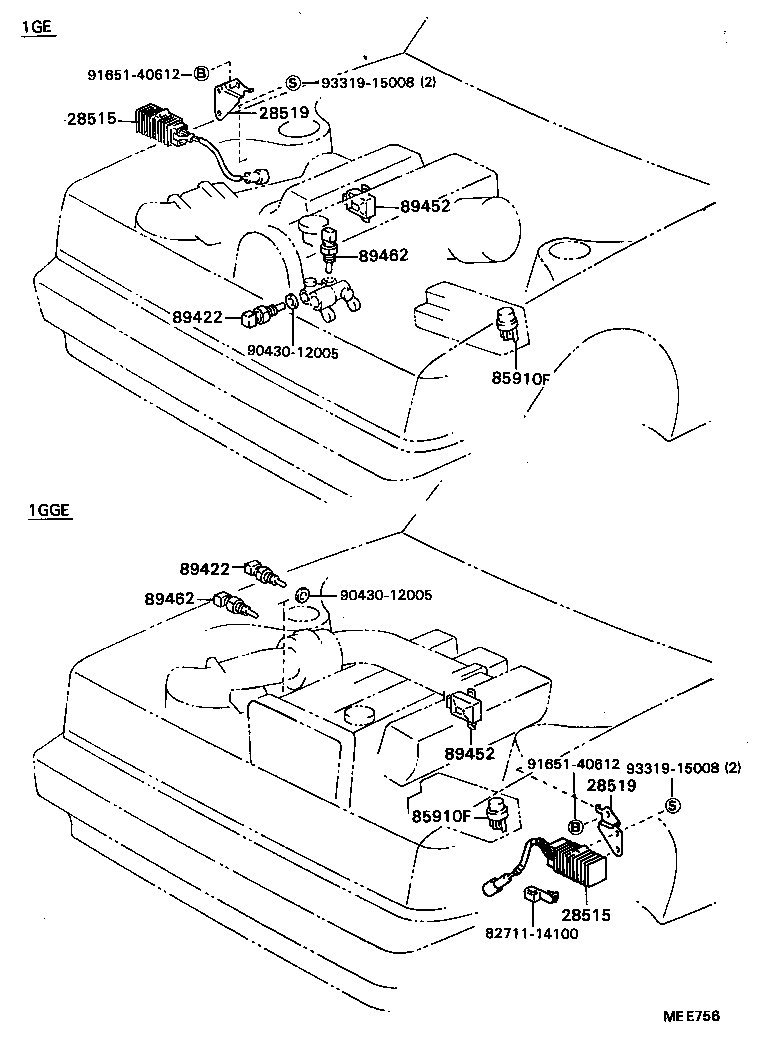

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-70020 |
1GE..GX71 |
1 | ||
| 28515 - RESISTOR, SOLENOID | ||||
| 28515-70020 |
1GE..GX71 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-22070 |
1GE..GX71 |
1 | ||
| 28519 - BRACKET, SOLENOID RESISTOR | ||||
| 28519-22070 |
1GE..GX71 |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
GX71,MX7# |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
GX71,MX7# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GX71,MX7# |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
GX71,MX7# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-22010 |
GX71..EFI |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-22010 |
GX71..EFI |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
GX71 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
GX71 |
1 | ||
| Common parts | ||||
| 82711-14100 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
(8408- )GX71,MX7#

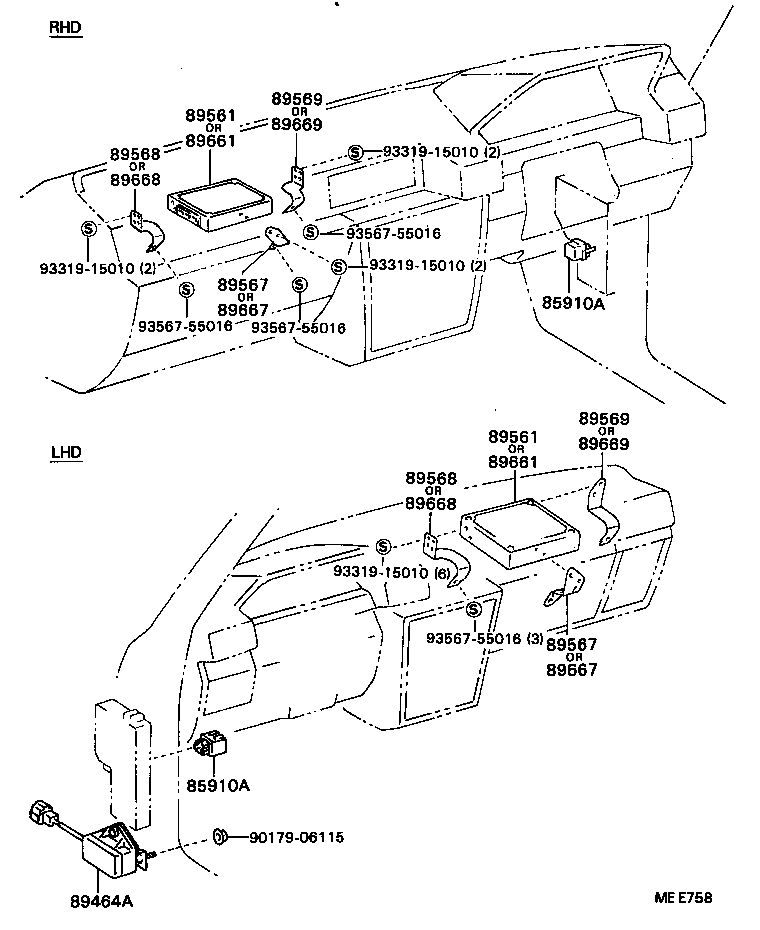

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GX71,MX7# |
1 | ||
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
GX71,MX7# |
1 | ||
| 89561 - COMPUTER, FUEL INJECTION | ||||
| 89561-22081 |
GX71..EFI |
1 | ||
| 89561 - COMPUTER, FUEL INJECTION | ||||
| 89561-22081 |
GX71..EFI |
1 | ||
| 89567 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89667-22060 |
GX71..RHD |
1 | ||
| 89567 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89667-22060 |
GX71..RHD |
1 | ||
| 89568 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89668-22120 |
GX71 |
1 | ||
| 89668-22100 |
GX71..EFI |
1 | ||
| 89568 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89668-22120 |
GX71 |
1 | ||
| 89668-22100 |
GX71..EFI |
1 | ||
| 89569 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89669-22120 |
GX71 |
1 | ||
| 89669-22110 |
GX71..EFI |
1 | ||
| 89569 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89669-22120 |
GX71 |
1 | ||
| 89669-22110 |
GX71..EFI |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-22120 |
GX71;MX73..TWC |
1 | ||
| 89668-22100 |
GX71..EUR,GEN,SA;MX73..TWC..(EUR,GEN,SA) |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-22120 |
GX71;MX73..TWC |
1 | ||
| 89668-22100 |
GX71..EUR,GEN,SA;MX73..TWC..(EUR,GEN,SA) |
1 | ||
| Common parts | ||||
| 90179-06115 | ||||
| 93319-15010 | ||||
| 93567-55016 | ||||
