GX71R-XEMGE (1984)
Toyota Cressida
(8408- )TWC..ARL ; (8408- )GX71,LX7#,MX72,RX7# ; (8408- )MX73..EFI..ARL,EU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850A - LAMP ASSY, INDICATOR | ||||
| 81850-22110 |
GX71,LX7#,RX70,YX70..MTM |
1 | ||
| 81850-22111 |
GX71,LX70,RX7#..5F..(GEN,ME) |
1 | ||
| 81850F - BULB, INDICATOR LAMP | ||||
| 84999-50150 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.4W,GREEN CAP |
1 | ||
| 84999-50140 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.4W |
7 | ||
| 81850F - BULB, INDICATOR LAMP | ||||
| 84999-50150 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.4W,GREEN CAP |
1 | ||
| 84999-50140 |
GX71,LX7#,MX7#,RX7#,YX70 12V 1.4W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX71,LX7#,RX7#,YX70 12V3.4W W(GREEN CAP) |
4 | ||
| 83119-24010 |
GX71,MX73..RHD..GLX..GEN 12V 1.4W W(SOCKET),W/*DS |
3 | ||
| 99132-12034 |
GX71,LX70,RX7#,YX70 12V 3.4W |
4 | ||
| 83119-24050 |
GX71,MX73..RHD..GLX..GEN 12V 1.4W,GREEN,W/*DS |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX71,LX7#,RX7#,YX70 12V3.4W W(GREEN CAP) |
4 | ||
| 83119-24010 |
GX71,MX73..RHD..GLX..GEN 12V 1.4W W(SOCKET),W/*DS |
3 | ||
| 99132-12034 |
GX71,LX70,RX7#,YX70 12V 3.4W |
4 | ||
| 83119-24050 |
GX71,MX73..RHD..GLX..GEN 12V 1.4W,GREEN,W/*DS |
3 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-22920 |
GX71,RX70..RHD W/*AS,W/TACHOMETER |
1 | ||
| 83133-22590 |
GX71,MX73..RHD..GEN W/*DS |
1 | ||
| 83133-22690 |
GX71,MX73..RHD..GLX..GEN W/*DS |
1 | ||
| 83134-2A440 |
GX71,RX70,72..RHD..GEN W/*AS,W/TACHOMETER |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
GX71,LX7#,RX7#,YX70 GREEN |
4 | ||
| 83101-20040 |
GX71,LX7#,RX7#,YX70 |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20070 |
GX71,LX7#,RX7#,YX70 GREEN |
4 | ||
| 83101-20040 |
GX71,LX7#,RX7#,YX70 |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22740 |
GX71,RX70,72..RHD W/*TAC |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A310 |
GX71..RHD..GEN MILE & KM |
1 | ||
| 83110-2A300 |
GX71..RHD KM |
1 | ||
| 83110-2A490 |
GX71..RHD..GEN KM |
1 | ||
| 83110-2A480 |
GX71..RHD..GEN KM,SINGAPORE SPEC |
1 | ||
| 83110-2A500 |
GX71..RHD..GEN MILE & KM |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A310 |
GX71..RHD..GEN MILE & KM |
1 | ||
| 83110-2A300 |
GX71..RHD KM |
1 | ||
| 83110-2A490 |
GX71..RHD..GEN KM |
1 | ||
| 83110-2A480 |
GX71..RHD..GEN KM,SINGAPORE SPEC |
1 | ||
| 83110-2A500 |
GX71..RHD..GEN MILE & KM |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-22020 |
GX71,LX7#,RX70,YX70 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-22370 |
GX71,MX73..RHD..GLX..(EUR,GEN) W/*DS |
1 | ||
| 83132-22260 |
GX71,RX70,72..RHD W/*AS,W/TACHOMETER |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22400 |
GX71..RHD |
1 | ||
| 83242-22880 |
GX71..RHD..GEN |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22320 |
GX71,RX70..RHD W/*TAC |
1 | ||
| 83243-22360 |
GX71,RX70,72..RHD..GEN |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22220 |
GX71,RX70..RHD |
1 | ||
| 83244-22240 |
GX71,RX70,72..RHD..GEN |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20180 | ||||
| 83161-20260 | ||||
| 83161-20300 | ||||
| 83161-20720 | ||||
| 93567-55016 | ||||

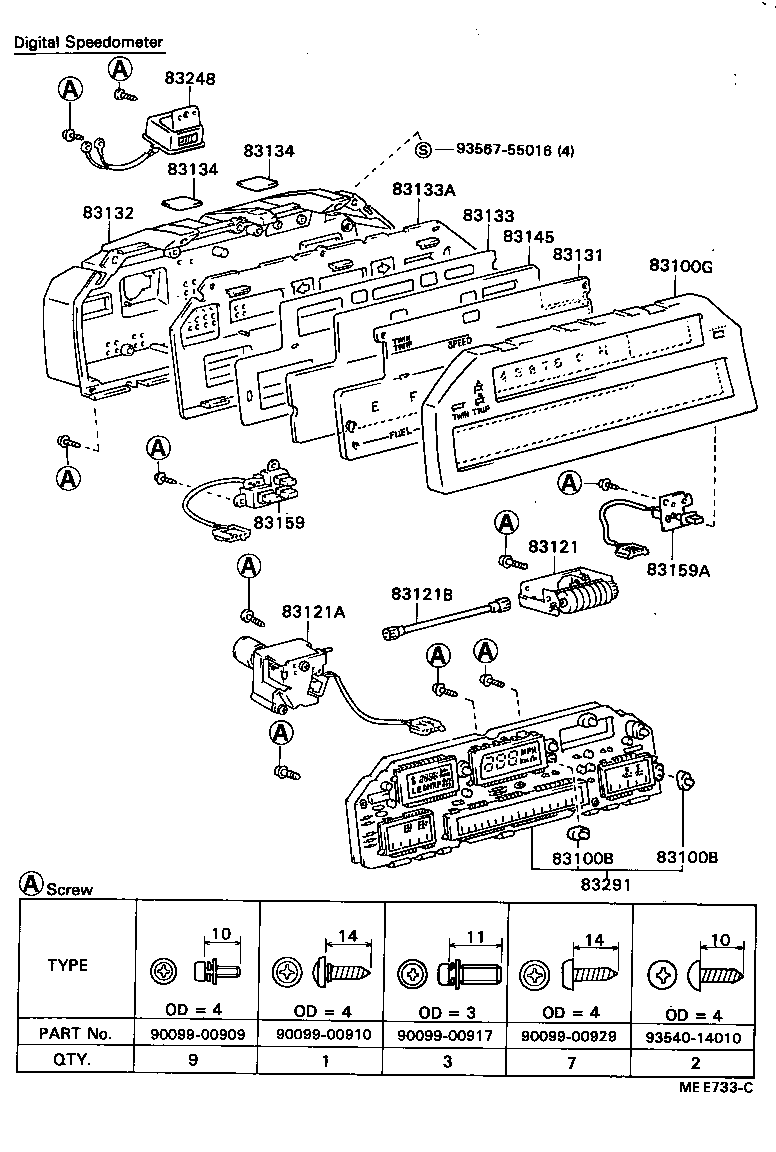

(8408- )GX71,MX73..ME ; (8408- )GX71..RHD..GEN ; (8408- )MX73..GLX..EUR,GE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX71,LX7#,RX7#,YX70 12V3.4W W(GREEN CAP) |
4 | ||
| 83119-24010 |
GX71,MX73..RHD..GLX..GEN 12V 1.4W W(SOCKET),W/*DS |
3 | ||
| 99132-12034 |
GX71,LX70,RX7#,YX70 12V 3.4W |
4 | ||
| 83119-24050 |
GX71,MX73..RHD..GLX..GEN 12V 1.4W,GREEN,W/*DS |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX71,LX7#,RX7#,YX70 12V3.4W W(GREEN CAP) |
4 | ||
| 83119-24010 |
GX71,MX73..RHD..GLX..GEN 12V 1.4W W(SOCKET),W/*DS |
3 | ||
| 99132-12034 |
GX71,LX70,RX7#,YX70 12V 3.4W |
4 | ||
| 83119-24050 |
GX71,MX73..RHD..GLX..GEN 12V 1.4W,GREEN,W/*DS |
3 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83134-22920 |
GX71,RX70..RHD W/*AS,W/TACHOMETER |
1 | ||
| 83133-22590 |
GX71,MX73..RHD..GEN W/*DS |
1 | ||
| 83133-22690 |
GX71,MX73..RHD..GLX..GEN W/*DS |
1 | ||
| 83134-2A440 |
GX71,RX70,72..RHD..GEN W/*AS,W/TACHOMETER |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-22130 |
GX71,MX73..RHD..GLX..(EUR,GEN,SA) |
1 | ||
| 83121A - SENSOR, SPEED | ||||
| 83111-22110 |
GX71,MX73..RHD..GLX..GEN |
1 | ||
| 83121B - CABLE, COUNTER AND SENSOR | ||||
| 83129-22090 |
GX71,MX73..RHD..GLX..(EUR,GEN) |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-22470 |
GX71,MX73..RHD..GEN |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-22370 |
GX71,MX73..RHD..GLX..(EUR,GEN) W/*DS |
1 | ||
| 83132-22260 |
GX71,RX70,72..RHD W/*AS,W/TACHOMETER |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-22630 |
GX71,MX73..RHD..GLX..GEN |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-22570 |
GX71,MX73..RHD..(EUR,GEN) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83146-22010 |
GX71,MX73..RHD..GLX..GEN |
2 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83146-22010 |
GX71,MX73..RHD..GLX..GEN |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-22150 |
GX71,MX73..RHD..(EUR,GEN) |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-22110 |
GX71,MX73..RHD..GEN |
1 | ||
| 83159-22150 |
GX71,MX73..RHD..GLX..GEN |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-22170 |
GX71..RHD..GEN |
1 | ||
| 83291-22171 |
GX71..RHD..GEN |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93540-14010 | ||||
| 93567-55016 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-22290 |
GX71,RX70..RHD..GEN A TYPE |
1 | ||
| 83910-22310 |
GX71,RX70..RHD..GEN A TYPE,W/RADIO SWITCH |
1 | ||
| 83910-22350 |
GX71,RX70,72..RHD..GEN A TYPE |
1 | ||
| 83910-22360 |
GX71,RX70,72..RHD..GEN A TYPE,W/RADIO SWITCH |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22290 |
GX71,RX70..RHD..GEN A TYPE |
1 | ||
| 83910-22310 |
GX71,RX70..RHD..GEN A TYPE,W/RADIO SWITCH |
1 | ||
| 83910-22350 |
GX71,RX70,72..RHD..GEN A TYPE |
1 | ||
| 83910-22360 |
GX71,RX70,72..RHD..GEN A TYPE,W/RADIO SWITCH |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8408-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06067 | ||||
| 90464-00082 | ||||
| 90464-00151 | ||||
| 90464-00175 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22720 |
GX71,MX73..RHD..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22720 |
GX71,MX73..RHD..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-22720 |
GX71,MX73..RHD..5F |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
GX71,LX7#,MX7# |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
GX71,LX7#,MX7# |
1 | ||
