GX71R-XEMGE (1984)

Toyota Cressida

Production Aug 1984 - Aug 1988
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

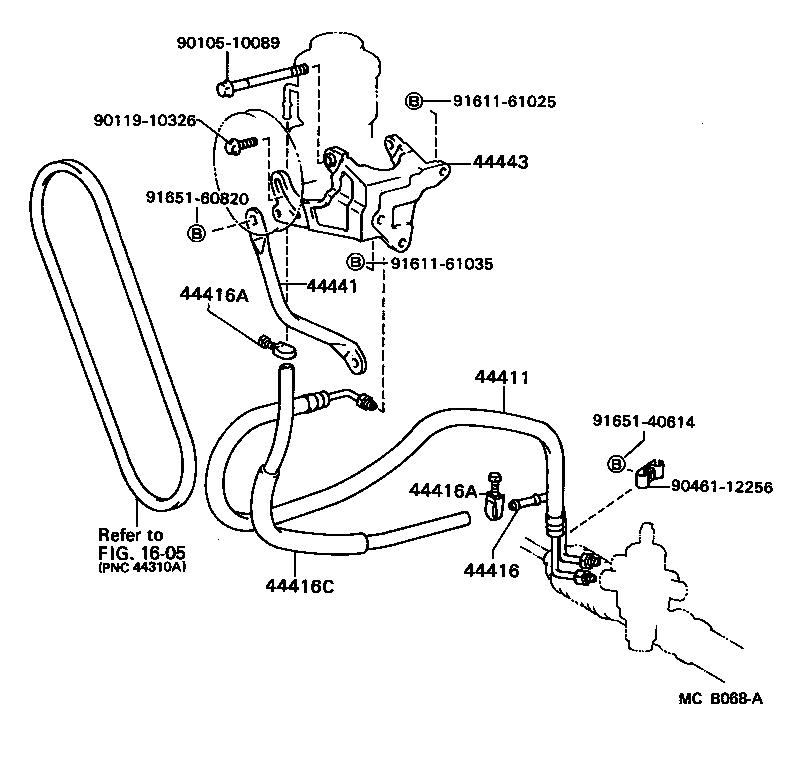

(8408-8608)GX71..RHD ; (8608- )GX71..SA

Click highlighted areas on diagram

diagram 1605 44411 44416 44416A 44416A 44416C 44441 44443 9010510089 9011910326 9046112256 9161161025 9161161035 9165140614 9165160820
Part # Description Qty Price
44411 - HOSE, PRESSURE FEED
44411-22310

GX71..RHD

 1
44411-22450

GX71..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22150

GX71,MX73..RHD

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LX7#;GX71,RX70..RHD

 2
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LX7#;GX71,RX70..RHD

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
44412-22400

GX71..RHD

 1
44412-22340

GX71..RHD

 1
44441 - BRACKET, PUMP, FRONT
44441-22040

GX71..EFI

 1
44441-30050

GX71..GEN

 1
44443 - BRACKET, PUMP
44443-22030

GX71..EFI

 1
44443-30091

GX71..GEN

 1
Common parts
90105-10089
90119-10326
90461-12256
91611-61025
91611-61035
91651-40614
91651-60820
Linked diagrams
1605

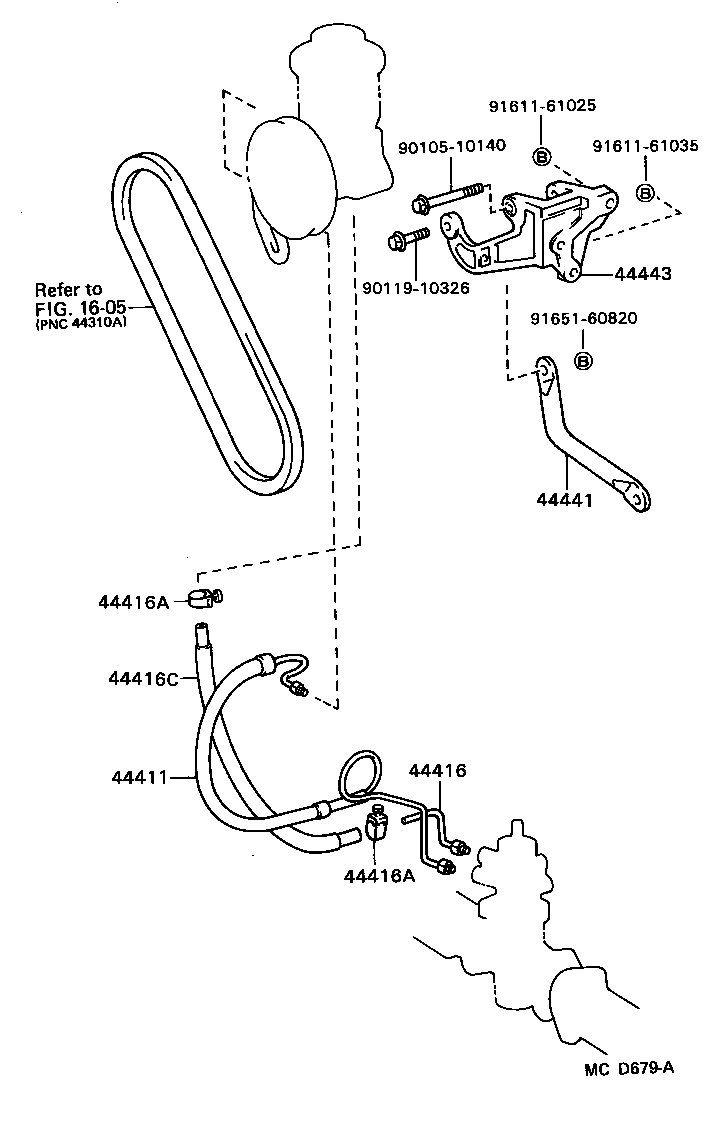

(8608- )GX71..RHD..GEN

Click highlighted areas on diagram

diagram 1605 44411 44416 44416A 44416A 44416C 44441 44443 9010510140 9011910326 9161161025 9161161035 9165160820
Part # Description Qty Price
44411 - HOSE, PRESSURE FEED
44411-22310

GX71..RHD

 1
44411-22450

GX71..RHD

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22150

GX71,MX73..RHD

 1
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LX7#;GX71,RX70..RHD

 2
44416A - CLAMP(FOR RETURN HOSE)
90460-01001

LX7#;GX71,RX70..RHD

 2
44416C - HOSE(FOR RETURN TUBE TO RESERVIOR)
44412-22400

GX71..RHD

 1
44412-22340

GX71..RHD

 1
44441 - BRACKET, PUMP, FRONT
44441-22040

GX71..EFI

 1
44441-30050

GX71..GEN

 1
44443 - BRACKET, PUMP
44443-22030

GX71..EFI

 1
44443-30091

GX71..GEN

 1
Common parts
90105-10140
90119-10326
91611-61025
91611-61035
91651-60820
Linked diagrams
1605
