GX71R-XEMGE (1984)
Toyota Cressida
(8408- )1GE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-79075 |
1GE..GX71 |
1 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-70020 |
1GE..GX71 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79085 |
1GE..GX71 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GX71 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GX71 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1G#..GX71 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1G#..GX71 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01312 |
1GE..GX71 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-70030 |
1GE..GX71 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-70040 |
1GE..GX71 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08003 |
1GE..GX71 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08005 |
1GE..GX71 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08005 |
1GE..GX71 |
2 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-70030 |
1GE..GX71 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
1G#..GX71 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
1G#..GX71 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1G#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1G#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1G#..GX71 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08005 |
1G#..GX71 |
4 | ||
| Common parts | ||||
| 23841-70010 | ||||
| 90179-06045 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
(8408- )1GE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70030 |
1GE..GX71..RHD |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70100 |
1GE..GX71..RHD |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70100 |
1GE..GX71..RHD |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-70040 |
1GE..GX71 |
1 | ||
| 22238 - GASKET, AUXILIARY AIR VALVE | ||||
| 22238-70010 |
1GE..GX71 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-70010 |
1GE..GX71 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-70010 |
1GE..GX71 |
6 | ||
| 23209-70060 |
1GE..GX71 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1G#..GX71 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1G#..GX71 |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-70040 |
1GE..GX71 |
1 | ||
| 23270-70010 |
1GE..GX71 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
1GE..GX71 ID=17.3 |
1 | ||
| 90430-14002 |
1GE..GX71 ID=14.2 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-17002 |
1GE..GX71 ID=17.3 |
1 | ||
| 90430-14002 |
1GE..GX71 ID=14.2 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70060 |
1GE..GX71 |
1 | ||
| 23280-70020 |
1GE..GX71 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
1GE..GX71 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1G#..GX71 |
6 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-70020 |
1GE..GX71 |
1 | ||
| 23807-70030 |
1GE..GX71 |
1 | ||
| Common parts | ||||
| 90099-04298 | ||||
| 90119-08327 | ||||
| 90179-08044 | ||||
| 90339-07016 | ||||
| 90560-08036 | ||||
| 90560-11006 | ||||
| 91611-40855 | ||||
| 91611-60614 | ||||
| 93311-16014 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||

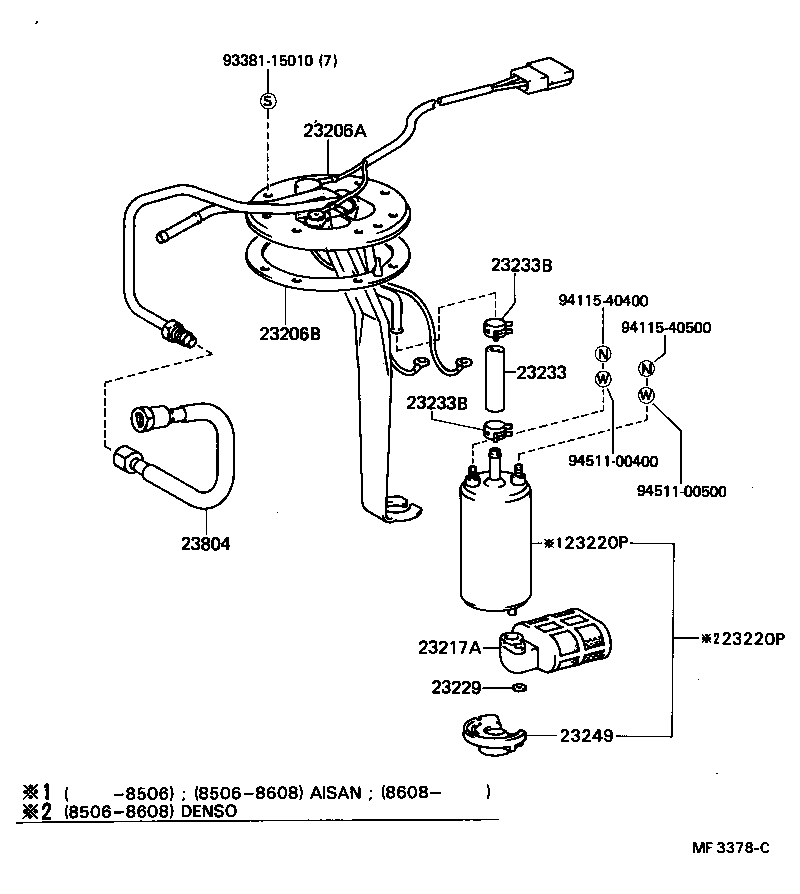

(8408- )1G#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-70100 |
1G#..GX71 |
1 | ||
| 23206-70100 |
1G#..GX71 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
1G#..GX71 |
1 | ||
| 77169-14010 |
1G#..GX71 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16042 |
1G#..GX71 |
1 | ||
| 23217-16042 |
1G#..GX71 |
1 | ||
| 23217-16030 |
1G#..GX71 DENSO |
1 | ||
| 23217-16030 |
1G#..GX71 DENSO |
1 | ||
| 23217-16043 |
1G#..GX71 AISAN |
1 | ||
| 23217-16043 |
1G#..GX71 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16070 |
1G#..GX71 DENSO |
1 | ||
| 23220-16070 |
1G#..GX71 DENSO |
1 | ||
| 23220-16080 |
1G#..GX71 AISAN |
1 | ||
| 23220-16080 |
1G#..GX71 AISAN |
1 | ||
| 23220-16084 |
1GE..GX71 AISAN |
1 | ||
| 23220-16084 |
1GE..GX71 AISAN |
1 | ||
| 23220-19015 |
1G#..GX71 DENSO |
1 | ||
| 23220-19015 |
1G#..GX71 DENSO |
1 | ||
| 23220-16083 |
1G#..GX71 AISAN |
1 | ||
| 23220-16083 |
1G#..GX71 AISAN |
1 | ||
| 23220-16190 |
1GE..GX71 DENSO |
1 | ||
| 23220-16190 |
1GE..GX71 DENSO |
1 | ||
| 23220-16082 |
1G#..GX71 AISAN |
1 | ||
| 23220-16082 |
1G#..GX71 AISAN |
1 | ||
| 23220-70270 |
1GE..GX71 |
1 | ||
| 23220-70270 |
1GE..GX71 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16070 |
1G#..GX71 DENSO |
1 | ||
| 23220-16070 |
1G#..GX71 DENSO |
1 | ||
| 23220-16080 |
1G#..GX71 AISAN |
1 | ||
| 23220-16080 |
1G#..GX71 AISAN |
1 | ||
| 23220-16084 |
1GE..GX71 AISAN |
1 | ||
| 23220-16084 |
1GE..GX71 AISAN |
1 | ||
| 23220-19015 |
1G#..GX71 DENSO |
1 | ||
| 23220-19015 |
1G#..GX71 DENSO |
1 | ||
| 23220-16083 |
1G#..GX71 AISAN |
1 | ||
| 23220-16083 |
1G#..GX71 AISAN |
1 | ||
| 23220-16190 |
1GE..GX71 DENSO |
1 | ||
| 23220-16190 |
1GE..GX71 DENSO |
1 | ||
| 23220-16082 |
1G#..GX71 AISAN |
1 | ||
| 23220-16082 |
1G#..GX71 AISAN |
1 | ||
| 23220-70270 |
1GE..GX71 |
1 | ||
| 23220-70270 |
1GE..GX71 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1G#..GX71 |
1 | ||
| 23229-16010 |
1G#..GX71 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1G#..GX71 |
1 | ||
| 23239-16010 |
1G#..GX71 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1G#..GX71 |
2 | ||
| 90467-13001 |
1G#..GX71 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1G#..GX71 |
2 | ||
| 90467-13001 |
1G#..GX71 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-16010 |
1G#..GX71 AISAN |
1 | ||
| 23249-16010 |
1G#..GX71 AISAN |
1 | ||
| 23249-16010 |
1G#..GX71 |
1 | ||
| 23249-16010 |
1G#..GX71 |
1 | ||
| 23249-43080 |
1G#..GX71 |
1 | ||
| 23249-43080 |
1G#..GX71 |
1 | ||
| 23249-43080 |
1G#..GX71 DENSO |
1 | ||
| 23249-43080 |
1G#..GX71 DENSO |
1 | ||
| 23804 - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23091-70010 |
1GE..GX71..GEN,ME |
1 | ||
| 23091-70010 |
1GE..GX71..GEN,ME |
1 | ||
| Common parts | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
