GX71R-XEMGE (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1988
Engine
1GE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )1GE

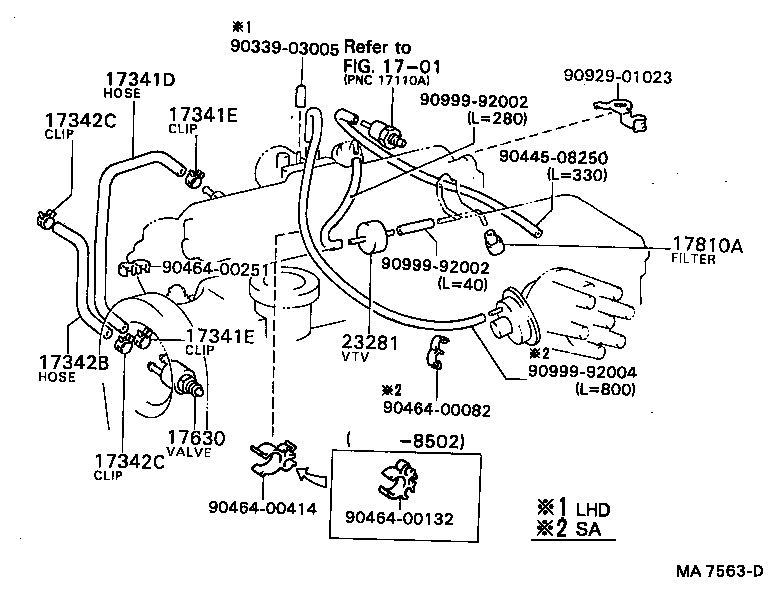

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17342-70050 |
1GE..GX71 |
1 | ||
| 17342-70100 |
1GE..GX71 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1G#..GX71 |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1G#..GX71 |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17341-70050 |
1GE..GX71 |
1 | ||
| 17341-70150 |
1GE..GX71 |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1G#..GX71 |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1G#..GX71 |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70010 |
1GE..GX71 |
1 | ||
| 17810A - FILTER ASSY, AIR | ||||
| 90925-06006 |
1GE..GX71..RHD |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01021 |
1GE..GX71..RHD |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90445-08250 | ||||
| 90464-00082 | ||||
| 90464-00132 | ||||
| 90464-00251 | ||||
| 90464-00414 | ||||
| 90929-01023 | ||||
| 90999-92002 | ||||
| 90999-92004 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(8408- )1G#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
