GX71R-XEMGE (1984)
Toyota Cressida
Production
Aug 1984
-
Aug 1988
Engine
1GE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )1GE

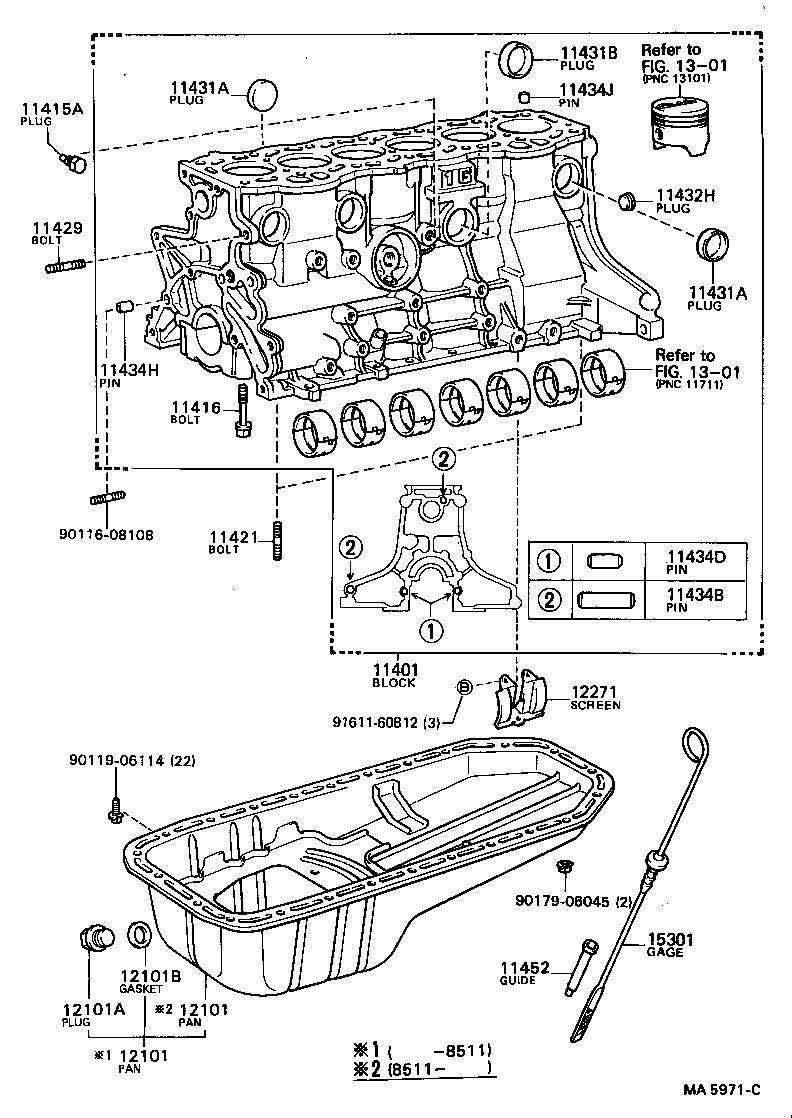

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-79037 |
1GE..GX71 |
1 | ||
| 11401-79038 |
1GE..GX71 |
1 | ||
| 11401-79039 |
1GE..GX71 |
1 | ||
| 11401-79395 |
1GE..GX71 |
1 | ||
| 11401-79396 |
1GE..GX71 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
1G#..GX71 |
1 | ||
| 96431-23814 |
1G#..GX71 L=28 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10028 |
1G#..GX71 *10-1.25PX67-18 |
14 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06014 |
1G#..GX71 L=24.5,S=8.5&8.5 |
2 | ||
| 11429 - BOLT, STUD(FOR ALTERNATOR BRACKET) | ||||
| 90116-10051 |
1G#..GX71 L=70,S=12&22 |
1 | ||
| 90116-10118 |
1G#..GX71 |
1 | ||
| 90116-10051 |
1G#..GX71 |
1 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1G#..GX71 OD=35 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1G#..GX71 OD=35 |
10 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
1G#..GX71 OD=40 |
6 | ||
| 11432H - PLUG, W/HEAD TAPER SCREW, NO.5 | ||||
| 90344-53015 |
1G#..GX71 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1G#..GX71 L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1G#..GX71 L=14,OD=6 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-11021 |
1G#..GX71 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1G#..GX71 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-22011 |
1GE..GX71 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-79015 |
1GE..GX71 |
1 | ||
| 12101-70011 |
1GE..GX71 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-79015 |
1GE..GX71 |
1 | ||
| 12101-70011 |
1GE..GX71 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
1G#..GX71 |
1 | ||
| 90341-18089 |
1G#..GX71 |
1 | ||
| 90341-12012 |
1G#..GX71 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
1G#..GX71 |
1 | ||
| 90430-12011 |
1G#..GX71 |
1 | ||
| 90430-18244 |
1G#..GX71 ID=18 |
1 | ||
| 90430-18244 |
1G#..GX71 ID=18 |
1 | ||
| 90430-12019 |
1GE..GX71 |
1 | ||
| 12271 - SCREEN, OIL SEPARATOR | ||||
| 12271-70010 |
1GE..GX71 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-70010 |
1GE..GX71 |
1 | ||
| Common parts | ||||
| 90116-08108 | ||||
| 90119-06114 | ||||
| 90179-06045 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 1301 | ||||
