GX71L-XTPEEV (1985)
Toyota Cressida
Production
Apr 1985
-
Aug 1986
Engine
1GE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8504- )HT

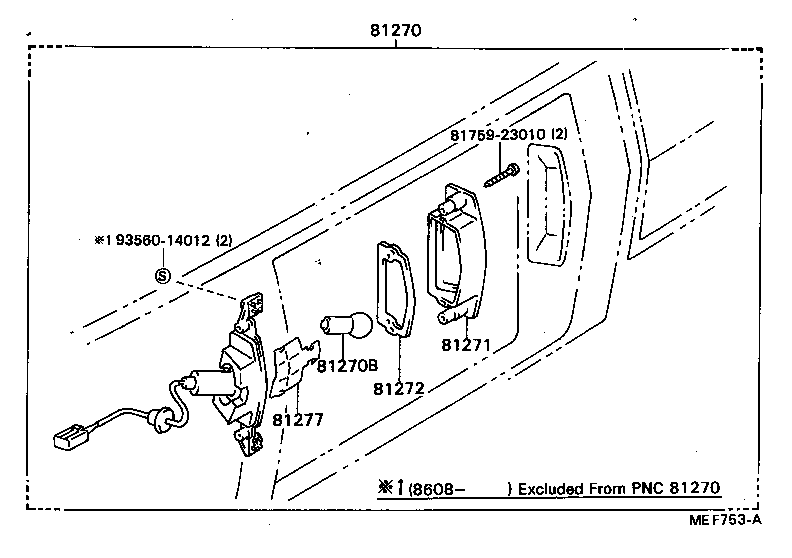

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-80027 |
GX71,MX73,RX70..HT |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-12013 |
GX71,MX73,RX70,72..(HT,SED)..ME 12V 10W,12V 10W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-16151 |
GX71,MX73,RX70..HT |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-20210 |
GX71,MX73,RX70,72..(HT,SED)..ME |
2 | ||
| 81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS | ||||
| 81277-20210 |
GX71,MX73,RX70,72..(HT,SED)..ME |
2 | ||
| Common parts | ||||
| 81759-23010 | ||||
| 93560-14012 | ||||
