GX71L-XTMEEV (1985)

Toyota Cressida

Production Apr 1985 - Aug 1986
Engine 1GE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8608)GX71..LHD..EFI

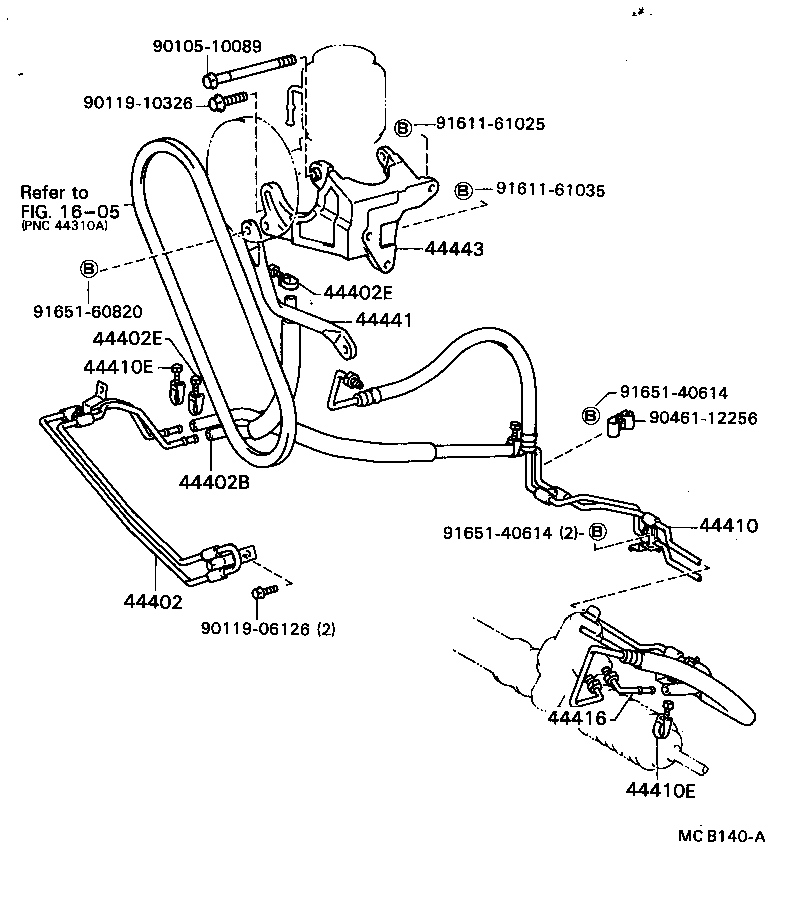

Click highlighted areas on diagram

diagram 1605 44402 44402B 44402E 44402E 44410 44410E 44410E 44416 44441 44443 9010510089 9011906126 9011910326 9046112256 9161161025 9161161035 9165140614 9165140614 9165160820
Part # Description Qty Price
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-22120

MX73;GX71..LHD

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-22370

GX71..LHD..EFI

 1
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MX73;GX71,MX72,RX7#..LHD

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

MX73;GX71,MX72,RX7#..LHD

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-22210

GX71..LHD..EFI

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22160

GX71,MX7#..LHD

 1
44441 - BRACKET, PUMP, FRONT
44441-22040

GX71..EFI

 1
44443 - BRACKET, PUMP
44443-22030

GX71..EFI

 1
Common parts
90105-10089
90119-06126
90119-10326
90461-12256
91611-61025
91611-61035
91651-40614
91651-60820
Linked diagrams
1605
