GX71L-XEPEEV (1984)
Toyota Cressida

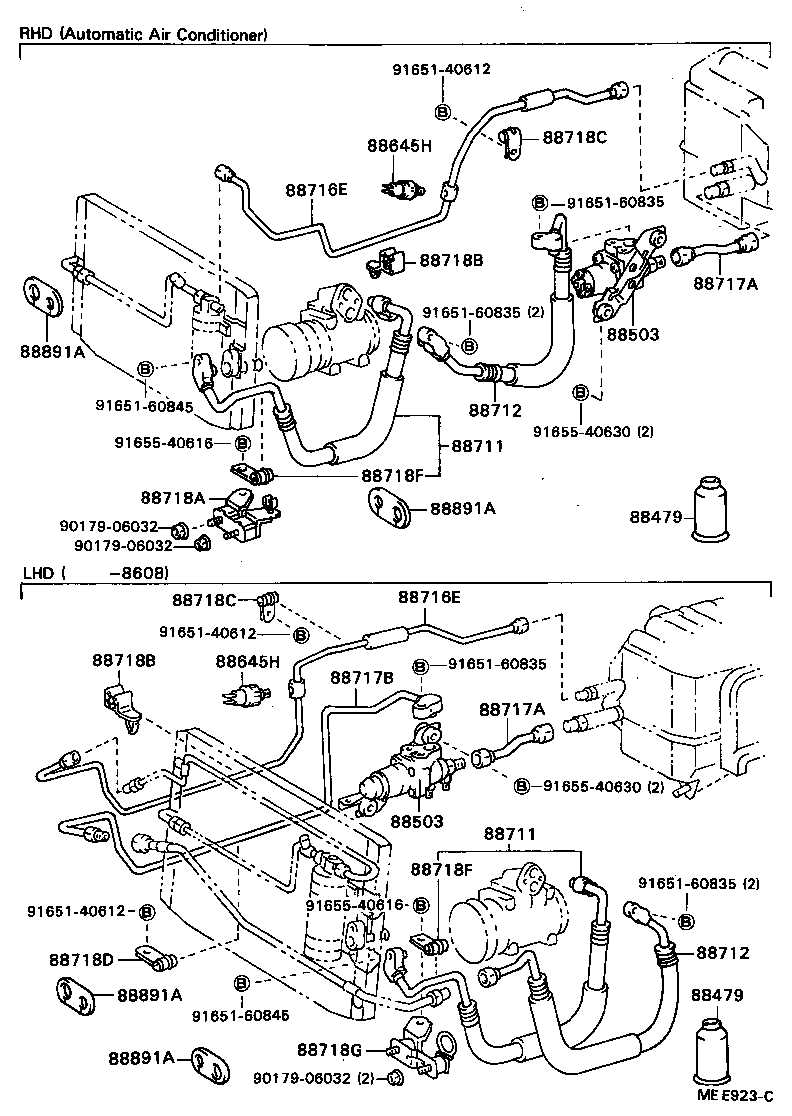

(8408-8504)GX71..ME ; (8408- )GX71..EUR,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 400G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 400G |
2 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22170 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 88503-22171 |
GX71,MX7#,RX70..LHD |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-22170 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 88503-22171 |
GX71,MX7#,RX70..LHD |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30250 |
GX71,MX73,RX70 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30250 |
GX71,MX73,RX70 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22320 |
GX71 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22320 |
GX71 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22510 |
GX71..LHD |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22510 |
GX71..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22470 |
GX71,MX7#,RX7#..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22470 |
GX71,MX7#,RX7#..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22270 |
GX71,LX7#,MX7#,RX70..LHD W/HEATER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-22270 |
GX71,LX7#,MX7#,RX70..LHD W/HEATER |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-22300 |
GX71..ME |
1 | ||
| 88717-22240 |
GX71,MX7#..LHD |
1 | ||
| 88717-22242 |
GX71,MX7#..LHD |
1 | ||
| 88717-22320 |
GX71..ME |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22650 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22650 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22630 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22630 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22640 |
GX71,MX7#..LHD |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-22670 |
MX73..EFI;GX71,MX72,RX7#;MX73..GLX..TWC |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-22670 |
MX73..EFI;GX71,MX72,RX7#;MX73..GLX..TWC |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-22600 |
GX71,MX7#..LHD |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 91655-40616 | ||||
| 91655-40630 | ||||

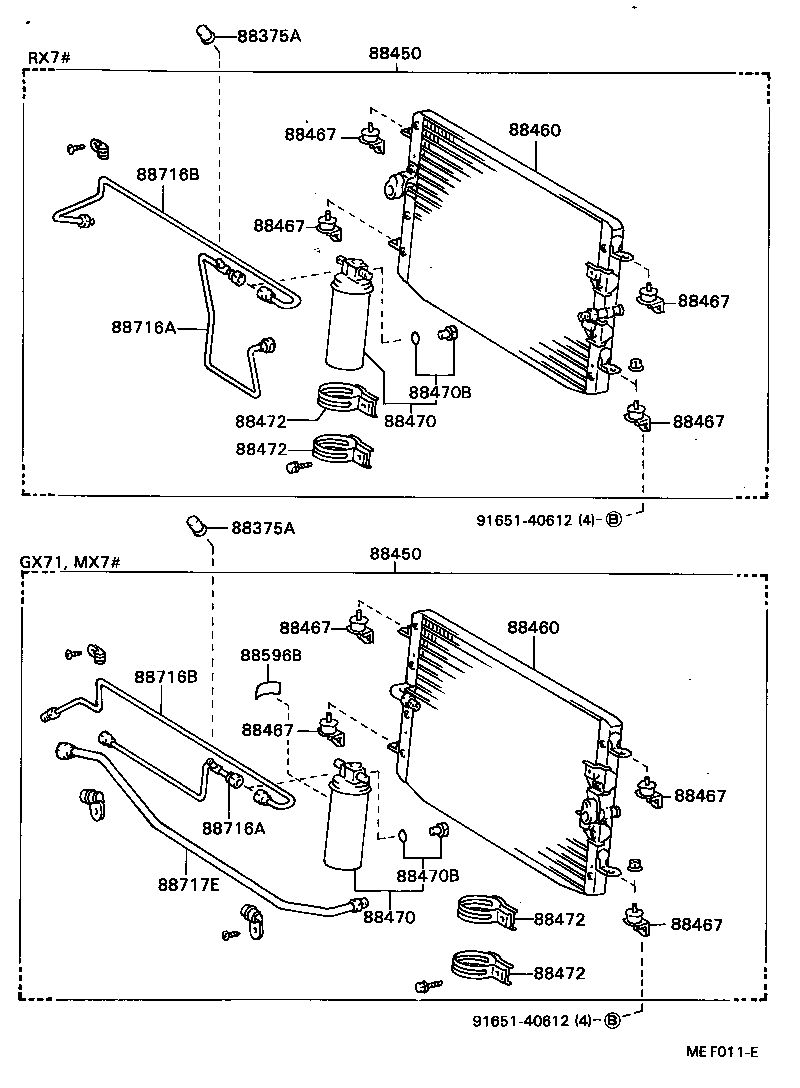

(8408-8504)MX73..ME ; (8408-8508)GX71,MX7#..LHD..GL,GLX ; (8408- )RX7#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
RX72..ME;MX73..EFI;MX73..GLX..TWC;GX71,RX70,71,YX70 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
RX72..ME;MX73..EFI;MX73..GLX..TWC;GX71,RX70,71,YX70 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88460-22250 |
GX71,MX7#..LHD |
1 | ||
| 88460-22251 |
GX71,MX7#..LHD |
1 | ||
| 88460-22251 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88460-22250 |
GX71,MX7#..LHD |
1 | ||
| 88460-22251 |
GX71,MX7#..LHD |
1 | ||
| 88460-22251 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22270 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX7#..GL,GLX |
1 | ||
| 88460-22271 |
GX71,MX7# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22270 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX7#..GL,GLX |
1 | ||
| 88460-22271 |
GX71,MX7# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12070 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12070 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12010 |
GX71,MX7#..LHD RECEIVER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22430 |
GX71,MX7#..GL,GLX |
1 | ||
| 88716-22430 |
GX71,MX7# |
1 | ||
| 88716-22580 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22430 |
GX71,MX7#..GL,GLX |
1 | ||
| 88716-22430 |
GX71,MX7# |
1 | ||
| 88716-22580 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22460 |
GX71,MX7#,RX70..LHD |
1 | ||
| 88716-22490 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88716-22460 |
GX71,MX7#,RX70..LHD..(GL,GLX,XL) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22460 |
GX71,MX7#,RX70..LHD |
1 | ||
| 88716-22490 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88716-22460 |
GX71,MX7#,RX70..LHD..(GL,GLX,XL) |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-22310 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88717-22250 |
GX71,MX7#..LHD |
1 | ||
| 88717-22250 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||

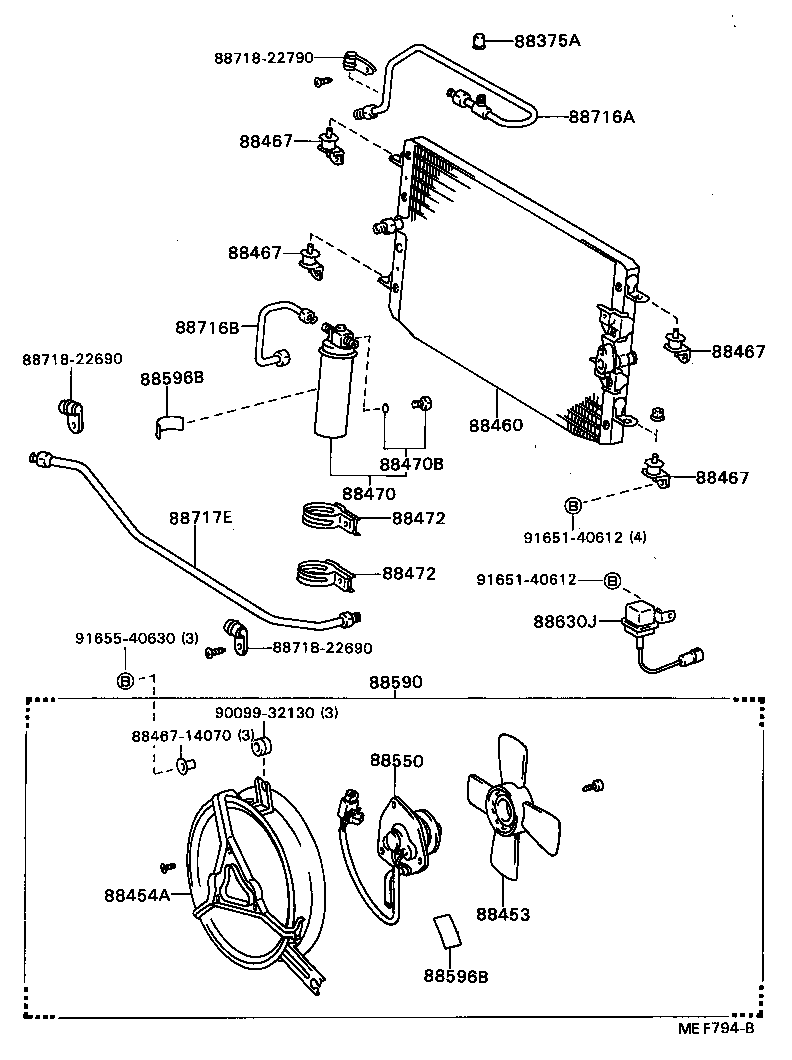

(8504- )MX73..ME ; (8508- )GX71,MX72..LHD; (8508- )MX73..LHD..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
RX72..ME;MX73..EFI;MX73..GLX..TWC;GX71,RX70,71,YX70 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-22270 |
GX71,MX7# |
1 | ||
| 88460-22271 |
GX71,MX7#..GL,GLX |
1 | ||
| 88460-22271 |
GX71,MX7# |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-22060 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
4 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12070 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 |
2 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12010 |
GX71,MX7#..LHD RECEIVER |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-12010 |
GX71,MX7#..LHD RECEIVER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-22430 |
GX71,MX7#..GL,GLX |
1 | ||
| 88716-22430 |
GX71,MX7# |
1 | ||
| 88716-22580 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-22460 |
GX71,MX7#,RX70..LHD |
1 | ||
| 88716-22490 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88716-22460 |
GX71,MX7#,RX70..LHD..(GL,GLX,XL) |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-22310 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| 88717-22250 |
GX71,MX7#..LHD |
1 | ||
| 88717-22250 |
GX71,MX7#..LHD..(GL,GLX) |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 88718-22690 | ||||
| 88718-22790 | ||||
| 90099-32130 | ||||
| 91651-40612 | ||||
| 91655-40630 | ||||

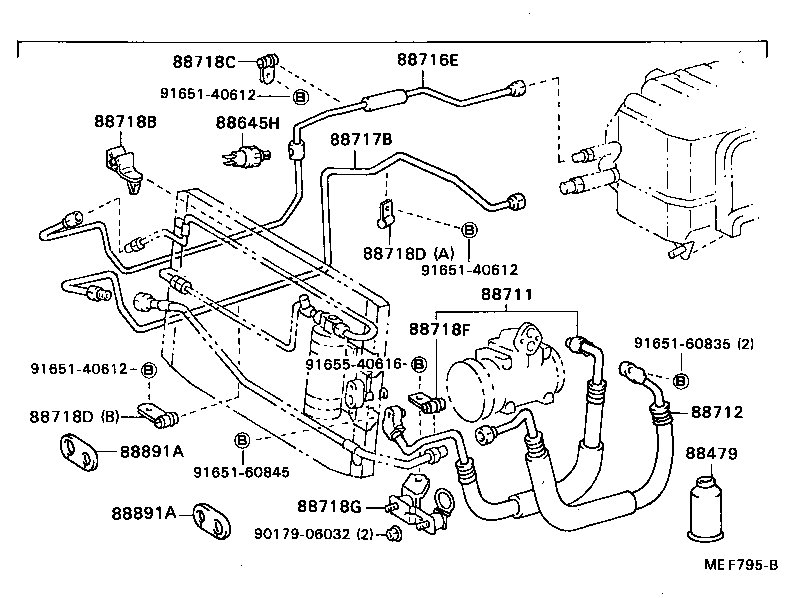

(8504- )GX71..ME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
MX73..GLX..SA;MX73..ARL,EUR,GEN,ME;GX71,LX7#,MX72,RX7#,YX70 400G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-30250 |
GX71,MX73,RX70 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-22320 |
GX71 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-22510 |
GX71..LHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-22470 |
GX71,MX7#,RX7#..LHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-22300 |
GX71..ME |
1 | ||
| 88717-22240 |
GX71,MX7#..LHD |
1 | ||
| 88717-22242 |
GX71,MX7#..LHD |
1 | ||
| 88717-22320 |
GX71..ME |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22650 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22630 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22640 |
GX71,MX7#..LHD |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-22640 |
GX71,MX7#..LHD |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-22670 |
MX73..EFI;GX71,MX72,RX7#;MX73..GLX..TWC |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-22600 |
GX71,MX7#..LHD |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88892-22110 |
MX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70 |
2 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 91655-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
