GX71L-XEMGE (1984)
Toyota Cressida
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22090 |
GX71,MX72..EFI..(EUR,GEN,SA) *IP INNER |
1 | ||
| 88625-22110 |
GX71,MX72..EFI..(EUR,GEN,SA) *IP TOP |
1 | ||
| 88625-22110 |
GX71,MX73..GD,GLX,GTX *IP TOP |
1 | ||
| 88625-22120 |
GX71,MX7#..LHD..EFI ENGINE ROOM |
1 | ||
| 88625-22120 |
GX71,MX73..GD,GLX,GTX ENGINE ROOM |
1 | ||
| 88625-22090 |
GX71,MX73..GD,GLX,GTX *IP INNER |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22090 |
GX71,MX72..EFI..(EUR,GEN,SA) *IP INNER |
1 | ||
| 88625-22110 |
GX71,MX72..EFI..(EUR,GEN,SA) *IP TOP |
1 | ||
| 88625-22110 |
GX71,MX73..GD,GLX,GTX *IP TOP |
1 | ||
| 88625-22120 |
GX71,MX7#..LHD..EFI ENGINE ROOM |
1 | ||
| 88625-22120 |
GX71,MX73..GD,GLX,GTX ENGINE ROOM |
1 | ||
| 88625-22090 |
GX71,MX73..GD,GLX,GTX *IP INNER |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-22090 |
GX71,MX72..EFI..(EUR,GEN,SA) *IP INNER |
1 | ||
| 88625-22110 |
GX71,MX72..EFI..(EUR,GEN,SA) *IP TOP |
1 | ||
| 88625-22110 |
GX71,MX73..GD,GLX,GTX *IP TOP |
1 | ||
| 88625-22120 |
GX71,MX7#..LHD..EFI ENGINE ROOM |
1 | ||
| 88625-22120 |
GX71,MX73..GD,GLX,GTX ENGINE ROOM |
1 | ||
| 88625-22090 |
GX71,MX73..GD,GLX,GTX *IP INNER |
1 | ||
| 88894F - HOSE, AIR | ||||
| 88669-22030 |
GX71..LHD..GEN |
1 | ||
| 88669-22030 |
GX71,MX73..LHD..(GD,GLX,GTX) |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 90183-05094 | ||||
| 93567-55016 | ||||
(8408- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-22110 |
GX71,LX70,RX7#..LHD..GEN |
1 | ||
| 87211-22110 |
GX71,LX7#,MX7#,RX70..LHD..(GL,GLX,XL) |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 55088-22080 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 55088-22090 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55089-22030 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87202-22020 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 87202-22021 |
GX71,LX70,MX73,RX7#..ARL,GEN,ME |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87203-22030 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 87203-22031 |
GX71,LX70,MX73,RX7#..ARL,GEN,ME |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55085-22100 |
GX71,LX7#,MX7#,RX70..LHD W/COOLER |
1 | ||
| 55085-22140 |
GX71,LX70,MX73,RX7#..LHD W/COOLER |
1 | ||
| 55085-22110 |
GX71,LX7#,MX7#,RX70..LHD..(GL,GLX,XL) W/O COOLER |
1 | ||
| 55085-22150 |
GX71,RX7#..LHD..GEN W/O COOLER |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55084-22070 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| 55084-22070 |
GX71,LX7#,MX7#,RX70..LHD..(EUR,GEN) |
1 | ||
| 55084-22100 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55086-22020 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55087-22110 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 55087-22090 |
GX71,LX7#,MX7#,RX70..LHD |
1 | ||
| Common parts | ||||
| 90159-60195 | ||||
| 90183-05007 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8408- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-22110 |
GX71,LX7#,MX7#,RX7#..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-22170 |
GX71,LX7#,RX70..LHD |
1 | ||
| 55907-22170 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-22040 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 55909-22040 |
GX71,LX7#,RX70,YX70 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22330 |
GX71..LHD..GEN W/*AAC |
1 | ||
| 55910-22320 |
GX71,LX7#,RX70..LHD W/*HEA |
1 | ||
| 55910-22380 |
GX71..GEN W/*AAC |
1 | ||
| 55910-22320 |
GX71,LX70,MX73,RX7#..LHD W/*HEA |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
GX71,LX70,MX73,RX7#..LHD |
3 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-22060 |
GX71..LHD..GEN W/*AAC |
1 | ||
| 88032-22051 |
GX71..GEN W/*AAC |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-22140 |
GX71,LX70,MX73,RX7#..LHD |
1 | ||
| 88681A - SWITCH, HEATER CONTROL VACUUM, NO.1 | ||||
| 88681-22020 |
GX71,LX7#,MX7#,RX70..LHD AIR INLET DAMPER CONTROL,LEVER |
1 | ||
| 88681-22060 |
GX71..GEN W/*AAC |
1 | ||
| 88681A - SWITCH, HEATER CONTROL VACUUM, NO.1 | ||||
| 88681-22020 |
GX71,LX7#,MX7#,RX70..LHD AIR INLET DAMPER CONTROL,LEVER |
1 | ||
| 88681-22060 |
GX71..GEN W/*AAC |
1 | ||
| Common parts | ||||
| 55922-20030 | ||||
| 55931-22030 | ||||
| 87293-22030 | ||||
| 90202-06013 | ||||
| 90386-04159 | ||||
| 90480-25027 | ||||
| 90520-05006 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

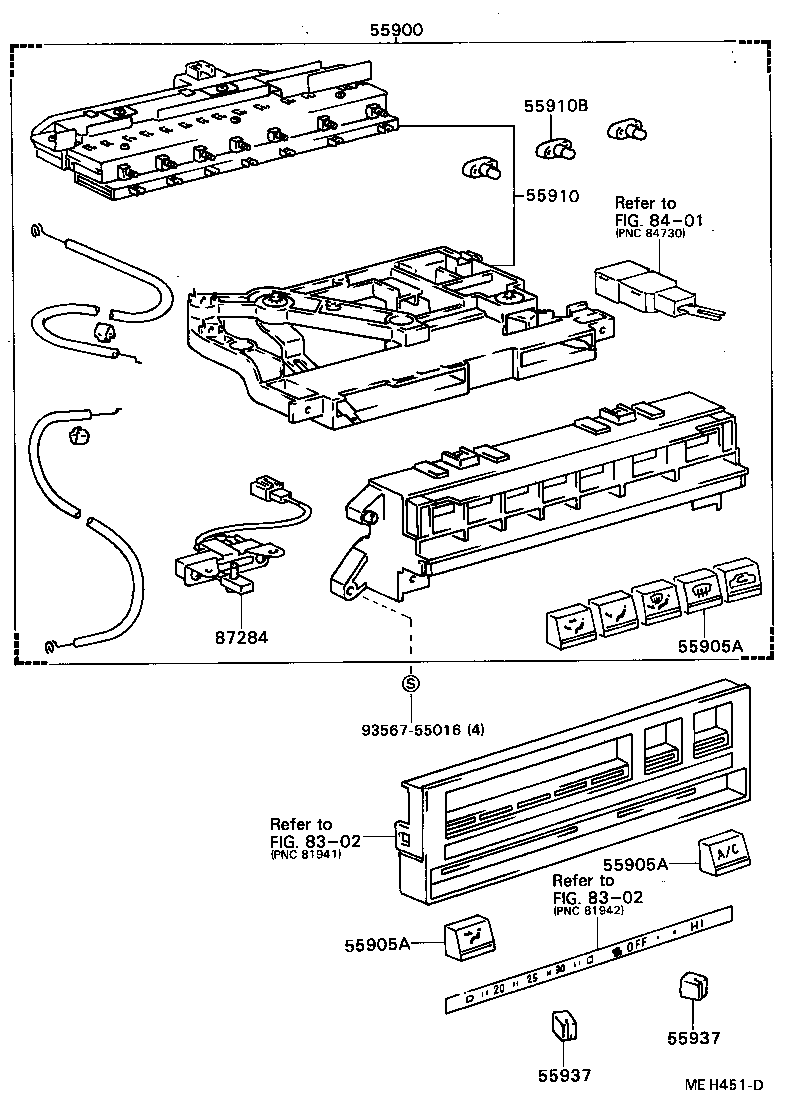

(8608- )GLX..ARL ; (8608- )GX71..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-22290 |
GX71..GEN |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22090 |
GX71..GEN BI-LEVEL,W/*AAC |
1 | ||
| 55905-22190 |
GX71..GEN HEAT,W/*AAC |
1 | ||
| 55905-22200 |
GX71..GEN HEAT & DEF,W/*AAC |
1 | ||
| 55905-22210 |
GX71..GEN DEF,W/*AAC |
1 | ||
| 55905-22240 |
GX71..GEN A/C,W/*AAC |
1 | ||
| 55905-22220 |
GX71..GEN REC,W/*AAC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22090 |
GX71..GEN BI-LEVEL,W/*AAC |
1 | ||
| 55905-22190 |
GX71..GEN HEAT,W/*AAC |
1 | ||
| 55905-22200 |
GX71..GEN HEAT & DEF,W/*AAC |
1 | ||
| 55905-22210 |
GX71..GEN DEF,W/*AAC |
1 | ||
| 55905-22240 |
GX71..GEN A/C,W/*AAC |
1 | ||
| 55905-22220 |
GX71..GEN REC,W/*AAC |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22090 |
GX71..GEN BI-LEVEL,W/*AAC |
1 | ||
| 55905-22190 |
GX71..GEN HEAT,W/*AAC |
1 | ||
| 55905-22200 |
GX71..GEN HEAT & DEF,W/*AAC |
1 | ||
| 55905-22210 |
GX71..GEN DEF,W/*AAC |
1 | ||
| 55905-22240 |
GX71..GEN A/C,W/*AAC |
1 | ||
| 55905-22220 |
GX71..GEN REC,W/*AAC |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-22330 |
GX71..LHD..GEN W/*AAC |
1 | ||
| 55910-22320 |
GX71,LX7#,RX70..LHD W/*HEA |
1 | ||
| 55910-22380 |
GX71..GEN W/*AAC |
1 | ||
| 55910-22320 |
GX71,LX70,MX73,RX7#..LHD W/*HEA |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 81850-14650 |
GX71..GEN |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
GX71,LX70,MX73,RX7#..LHD |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-30081 |
GX71,LX70,MX73,RX7#..LHD |
3 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-22060 |
GX71..LHD..GEN W/*AAC |
1 | ||
| 88032-22051 |
GX71..GEN W/*AAC |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
