GX71L-XEMGE (1984)
Toyota Cressida
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12770 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-14560 | ||||
| 82711-22220 | ||||
| 82711-22300 | ||||
| 82711-22350 | ||||
| 82711-22490 | ||||
| 82711-22620 | ||||
| 82711-22640 | ||||
| 82711-22670 | ||||
| 82711-22720 | ||||
| 82711-22820 | ||||
| 82711-22860 | ||||
| 82711-22870 | ||||
| 82711-24070 | ||||
| 82711-24090 | ||||
| 82711-2A010 | ||||
| 82711-2A020 | ||||
| 82711-2A090 | ||||
| 82711-30070 | ||||
| 82711-30130 | ||||
| 82711-30360 | ||||
| 82711-30380 | ||||
| 82711-30550 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14100 | ||||
| 82711-14570 | ||||
| 82711-16180 | ||||
| 82711-22270 | ||||
| 82711-22620 | ||||
| 82711-2A040 | ||||
| 82711-2A050 | ||||
| 82711-2A110 | ||||
| 82711-2A130 | ||||
| 82711-30590 | ||||
| 82711-30640 | ||||
| 82711-30780 | ||||
| 82819-22160 | ||||
| 82819-22220 | ||||
| 90461-08183 | ||||
| 90461-08200 | ||||
| 90461-08312 | ||||
| 90461-08483 | ||||
| 90461-08514 | ||||
| 90463-10337 | ||||
| 90463-12014 | ||||
| 90464-00052 | ||||
| 90464-00137 | ||||
| 90464-00166 | ||||
| 90950-01252 | ||||

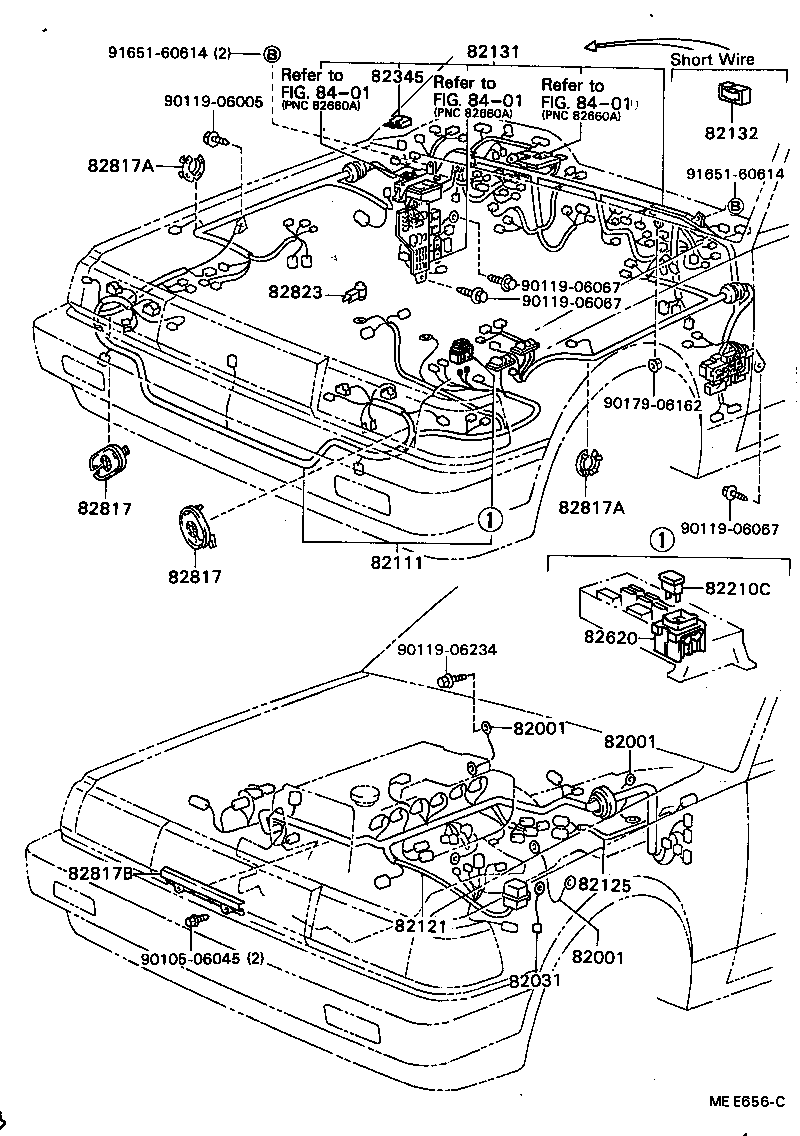

(8408- )GX71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
GX71,MX7#,RX7#,YX70 CLUTCH-MEMBER |
1 | ||
| 90980-07252 |
GX71,MX7#,RX7# MISSION-MEMBER |
1 | ||
| 90980-07309 |
GX71..GEN ENGINE-COWL |
1 | ||
| 90980-07109 |
GX71..EFI ENGINE-COWL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
GX71,MX7#,RX7#,YX70 CLUTCH-MEMBER |
1 | ||
| 90980-07252 |
GX71,MX7#,RX7# MISSION-MEMBER |
1 | ||
| 90980-07309 |
GX71..GEN ENGINE-COWL |
1 | ||
| 90980-07109 |
GX71..EFI ENGINE-COWL |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07119 |
GX71,MX7#,RX7#,YX70 CLUTCH-MEMBER |
1 | ||
| 90980-07252 |
GX71,MX7#,RX7# MISSION-MEMBER |
1 | ||
| 90980-07309 |
GX71..GEN ENGINE-COWL |
1 | ||
| 90980-07109 |
GX71..EFI ENGINE-COWL |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12060 |
GX71..EFI |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-22351 |
GX71..SED..LHD..EFI |
1 | ||
| 82111-22350 |
GX71..LHD..EFI |
1 | ||
| 82111-22351 |
GX71..LHD..GEN |
1 | ||
| 82111-22352 |
GX71..LHD..GEN |
1 | ||
| 82111-22353 |
GX71..LHD |
1 | ||
| 82111-22354 |
GX71..LHD |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-22210 |
GX71..LHD..EFI |
1 | ||
| 82121-22211 |
GX71..LHD..EFI |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-22030 |
GX71..5F..EFI |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-22831 |
GX71..LHD..GEN |
1 | ||
| 82131-22830 |
GX71..LHD..GEN |
1 | ||
| 82131-22832 |
GX71..LHD..GEN |
1 | ||
| 82131-22852 |
RX70,71..LHD |
1 | ||
| 82131-22833 |
GX71..LHD |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-22040 |
GX71,RX7#..GEN SHORT PIN(BLOWER MOTOR) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
GX71,LX7#,MX7#,RX7#,YX70 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08246 |
GX71..GEN 100A,TERM.:MALE,BLUE,100A |
1 | ||
| 90982-08203 |
GX71,LX7#,MX7#,RX7# 80A,TERM.:MALE,BLK,80A |
2 | ||
| 90982-08245 |
GX71..EFI |
1 | ||
| 90982-08188 |
GX71,LX7#,MX7#,RX7#,YX70 30A,TERM.:FEMALE,PNK,30A |
1 | ||
| 82345 - DIODE | ||||
| 82345-22051 |
GX71,MX73,RX72,73..LHD |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82602-22150 |
GX71,LX70,MX73,RX7#,YX70 |
1 | ||
| 82602-22150 |
GX71..EFI |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22420 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22420 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
GX71,LX7#,MX7#,RX7#,YX70 |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20040 |
GX71 ALTERNATOR(B)TERMINAL |
1 | ||
| 82823-20040 |
GX71 ALTERNATOR(B)TERMINAL |
1 | ||
| 82823-20040 |
GX71..EFI ALTERNATOR(B)TERMINAL |
1 | ||
| 82823-20040 |
GX71..EFI ALTERNATOR(B)TERMINAL |
1 | ||
| 82823-22060 |
GX71 ALTERNATOR(B)TERMINAL |
1 | ||
| Common parts | ||||
| 90105-06045 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90119-06234 | ||||
| 90179-06162 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8408- )HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-22171 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82151-22170 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82151-22180 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GL,XL) W/*RCM,W/O *PW |
1 | ||
| 82151-22172 |
GX71,LX70,MX73,RX7#..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-22141 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82152-22140 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82152-22150 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GL,XL) W/*RCM,W/O *PW |
1 | ||
| 82152-22142 |
GX71,LX70,MX73,RX7#..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-22040 |
GX71,LX7#,MX7#,RX70..(SED,WG)..(GD,GL,GLX) |
1 | ||
| 82153-22041 |
GX71,LX70,MX73,RX7#..GD,GL,GLX |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-22010 |
GX71,LX7#,MX7#,RX70..(SED,WG)..(GD,GL,GLX) |
1 | ||
| 82154-22011 |
GX71,LX70,MX73,RX7#..GD,GL,GLX |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-22350 |
GX71,LX7#,MX73,RX70..SED..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82161-22360 |
GX71,LX7#,MX73,RX70..SED..LHD..(GL,XL) |
1 | ||
| 82161-22351 |
GX71,LX70,MX73,RX7#..SED..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-22060 |
GX71,LX7#,MX73,RX70..SED..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82162-22061 |
GX71,LX70,MX73,RX7#..SED..LHD..(GD,GL,GLX) W/*PW |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-22140 |
GX71,MX73..LHD..(GD,GLX) |
1 | ||
| 82171-22150 |
GX71,LX7#,MX7#,RX70..(SED,WG)..LHD..(GL,XL) |
1 | ||
| 82171-22180 |
GX71,LX70,RX70..LHD..(GL,GLX)..GEN W/SUN ROOF |
1 | ||
| 82171-22181 |
GX71,LX70,RX7#..LHD..(GL,GLX)..GEN W/SUN ROOF |
1 | ||
| 82171-22141 |
GX71,MX73..LHD..(GD,GLX) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-22100 |
GX71,LX70,MX73,RX70..SED..LHD..(GEN,ME) |
1 | ||
| 82181-22101 |
GX71,LX70,MX73,RX7#..SED..LHD |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-22010 |
MX73..XL..SA;MX73..GD,GL,GLX;GX71,LX7#,RX7#,YX70..SED |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-22360 |
GX71,LX7#,MX73,RX70 |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-22360 |
GX71,LX7#,MX73,RX70 |
2 | ||
| Common parts | ||||
| 82819-22250 | ||||
| 90119-06067 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-16010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 82982-22050 |
GX71,LX70,MX73,RX7#,YX70..SED,WG |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22050 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 82983-22050 |
GX71,LX70,MX73,RX7#,YX70..SED,WG |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
GX71,LX70,MX73,RX7#..ARL,GEN,ME |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22010 |
GX71,LX70,MX73,RX7#..ARL,GEN,ME |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-14010 |
GX71,LX7#,MX7#,RX7#,YX70 |
1 | ||
| Common parts | ||||
| 82981-16010 | ||||
| 82982-22050 | ||||
| 82983-22050 | ||||
| 82984-22010 | ||||
| 82984-22020 | ||||
| 82991-14010 | ||||

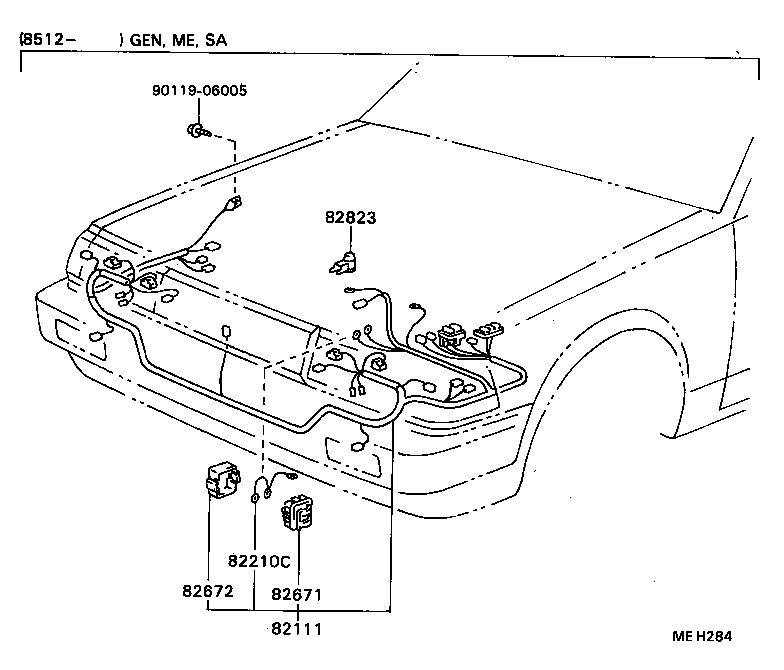

(8408- )GX71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-22351 |
GX71..SED..LHD..EFI |
1 | ||
| 82111-22350 |
GX71..LHD..EFI |
1 | ||
| 82111-22351 |
GX71..LHD..GEN |
1 | ||
| 82111-22352 |
GX71..LHD..GEN |
1 | ||
| 82111-22353 |
GX71..LHD |
1 | ||
| 82111-22354 |
GX71..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
GX71,LX7#,MX7#,RX7#,YX70 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08246 |
GX71..GEN 100A,TERM.:MALE,BLUE,100A |
1 | ||
| 90982-08203 |
GX71,LX7#,MX7#,RX7# 80A,TERM.:MALE,BLK,80A |
2 | ||
| 90982-08245 |
GX71..EFI |
1 | ||
| 90982-08188 |
GX71,LX7#,MX7#,RX7#,YX70 30A,TERM.:FEMALE,PNK,30A |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30030 |
GX71..EFI |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-30010 |
GX71..EFI JANCTION BLOCK |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20040 |
GX71 ALTERNATOR(B)TERMINAL |
1 | ||
| 82823-20040 |
GX71 ALTERNATOR(B)TERMINAL |
1 | ||
| 82823-20040 |
GX71..EFI ALTERNATOR(B)TERMINAL |
1 | ||
| 82823-20040 |
GX71..EFI ALTERNATOR(B)TERMINAL |
1 | ||
| 82823-22060 |
GX71 ALTERNATOR(B)TERMINAL |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-22050 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 82982-22050 |
GX71,LX70,MX73,RX7#,YX70..SED,WG |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-22050 |
GX71,LX7#,MX7#,RX70,YX70 |
1 | ||
| 82983-22050 |
GX71,LX70,MX73,RX7#,YX70..SED,WG |
1 | ||
| Common parts | ||||
| 82982-22040 | ||||
| 82983-22060 | ||||
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-14120 | ||||
| 82711-14620 | ||||
| 82711-1A210 | ||||
| 82711-20260 | ||||
| 82711-22140 | ||||
| 82711-22150 | ||||
| 82711-22460 | ||||
| 82711-22710 | ||||
| 82711-22880 | ||||
| 82711-24240 | ||||
| 82711-24400 | ||||
| 82711-2A170 | ||||
| 82711-2A210 | ||||
| 82711-2A480 | ||||
| 82711-30180 | ||||
| 82711-30200 | ||||
| 90463-10012 | ||||
| 90463-12570 | ||||
