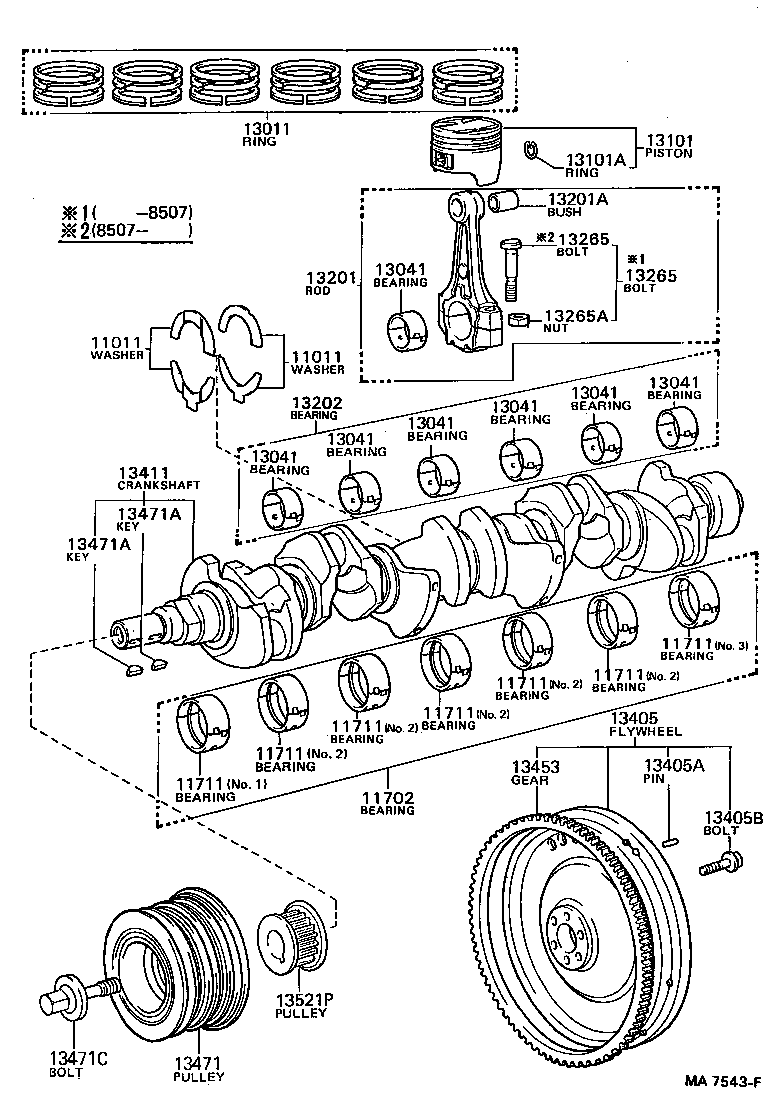

GX71L-XEMEEV (1984)
Toyota Cressida
(8408- )1GE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-70010 |
1G#..GX71 STD |
2 | ||
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-70010 |
1G#..GX71 STD |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-70012 |
1GE..GX71 U/S 0.25,U/S 0.25 |
1 | ||
| 11704-70020 |
1G#..GX71 U/S 0.25,U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GE..GX71 MARK"1",MARK 1 |
7 | ||
| 11701-7001202 |
1GE..GX71 MARK"2",MARK 2 |
7 | ||
| 11701-7001203 |
1GE..GX71 MARK"3",MARK 3 |
7 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GE..GX71 MARK"1",MARK 1 |
7 | ||
| 11701-7001202 |
1GE..GX71 MARK"2",MARK 2 |
7 | ||
| 11701-7001203 |
1GE..GX71 MARK"3",MARK 3 |
7 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GE..GX71 MARK"1",MARK 1 |
7 | ||
| 11701-7001202 |
1GE..GX71 MARK"2",MARK 2 |
7 | ||
| 11701-7001203 |
1GE..GX71 MARK"3",MARK 3 |
7 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GE..GX71 MARK"1",MARK 1 |
7 | ||
| 11701-7001202 |
1GE..GX71 MARK"2",MARK 2 |
7 | ||
| 11701-7001203 |
1GE..GX71 MARK"3",MARK 3 |
7 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GE..GX71 MARK"1",MARK 1 |
7 | ||
| 11701-7001202 |
1GE..GX71 MARK"2",MARK 2 |
7 | ||
| 11701-7001203 |
1GE..GX71 MARK"3",MARK 3 |
7 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GE..GX71 MARK"1",MARK 1 |
7 | ||
| 11701-7001202 |
1GE..GX71 MARK"2",MARK 2 |
7 | ||
| 11701-7001203 |
1GE..GX71 MARK"3",MARK 3 |
7 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7001201 |
1GE..GX71 MARK"1",MARK 1 |
7 | ||
| 11701-7001202 |
1GE..GX71 MARK"2",MARK 2 |
7 | ||
| 11701-7001203 |
1GE..GX71 MARK"3",MARK 3 |
7 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-70030 |
1GE..GX71 STD,STD |
1 | ||
| 13013-70030 |
1GE..GX71 O/S 0.50,O/S 0.50 |
1 | ||
| 13014-70030 |
1GE..GX71 O/S 0.75,O/S 0.75 |
1 | ||
| 13015-70030 |
1GE..GX71 O/S 1.00,O/S 1.00 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001005 |
1GE..GX71 MARK"5",MARK 5 |
6 | ||
| 13041-7001003 |
1GE..GX71 MARK"3",MARK 3 |
6 | ||
| 13041-7001004 |
1GE..GX71 MARK"4",MARK 4 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001005 |
1GE..GX71 MARK"5",MARK 5 |
6 | ||
| 13041-7001003 |
1GE..GX71 MARK"3",MARK 3 |
6 | ||
| 13041-7001004 |
1GE..GX71 MARK"4",MARK 4 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001005 |
1GE..GX71 MARK"5",MARK 5 |
6 | ||
| 13041-7001003 |
1GE..GX71 MARK"3",MARK 3 |
6 | ||
| 13041-7001004 |
1GE..GX71 MARK"4",MARK 4 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001005 |
1GE..GX71 MARK"5",MARK 5 |
6 | ||
| 13041-7001003 |
1GE..GX71 MARK"3",MARK 3 |
6 | ||
| 13041-7001004 |
1GE..GX71 MARK"4",MARK 4 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001005 |
1GE..GX71 MARK"5",MARK 5 |
6 | ||
| 13041-7001003 |
1GE..GX71 MARK"3",MARK 3 |
6 | ||
| 13041-7001004 |
1GE..GX71 MARK"4",MARK 4 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001005 |
1GE..GX71 MARK"5",MARK 5 |
6 | ||
| 13041-7001003 |
1GE..GX71 MARK"3",MARK 3 |
6 | ||
| 13041-7001004 |
1GE..GX71 MARK"4",MARK 4 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7001005 |
1GE..GX71 MARK"5",MARK 5 |
6 | ||
| 13041-7001003 |
1GE..GX71 MARK"3",MARK 3 |
6 | ||
| 13041-7001004 |
1GE..GX71 MARK"4",MARK 4 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13104-70010 |
1GE..GX71 O/S 0.75,O/S 0.75 |
6 | ||
| 13105-70010 |
1GE..GX71 O/S 1.00,O/S 1.00 |
6 | ||
| 13103-70010 |
1GE..GX71 O/S 0.50,O/S 0.50 |
6 | ||
| 13101-70010 |
1GE..GX71 STD,STD |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-21088 |
1G#..GX71 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79055 |
1GE..GX71 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73070 |
1G#..GX71 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-70010 |
1GE..GX71 U/S 0.25,U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29015 |
1G#..GX71 |
12 | ||
| 13265-70010 |
1G#..GX71 |
12 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29015 |
1G#..GX71 |
12 | ||
| 13265-70010 |
1G#..GX71 |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
1G#..GX71 |
12 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-79025 |
1GE..GX71..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
1G#..GX71..5F L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
1G#..GX71..5F *10-1.25PX26-18 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-70902 |
1GE..GX71 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
1G#..GX71..5F N=115 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-70060 |
1GE..GX71 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
1G#..GX71 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
1G#..GX71 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-18001 |
1G#..GX71 *18-1.5PX40-20 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-70030 |
1GE..GX71 |
1 | ||
