ST191R-DWMDK (1992)

Toyota Corona Wg

Production Nov 1992 - Jan 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )JPP

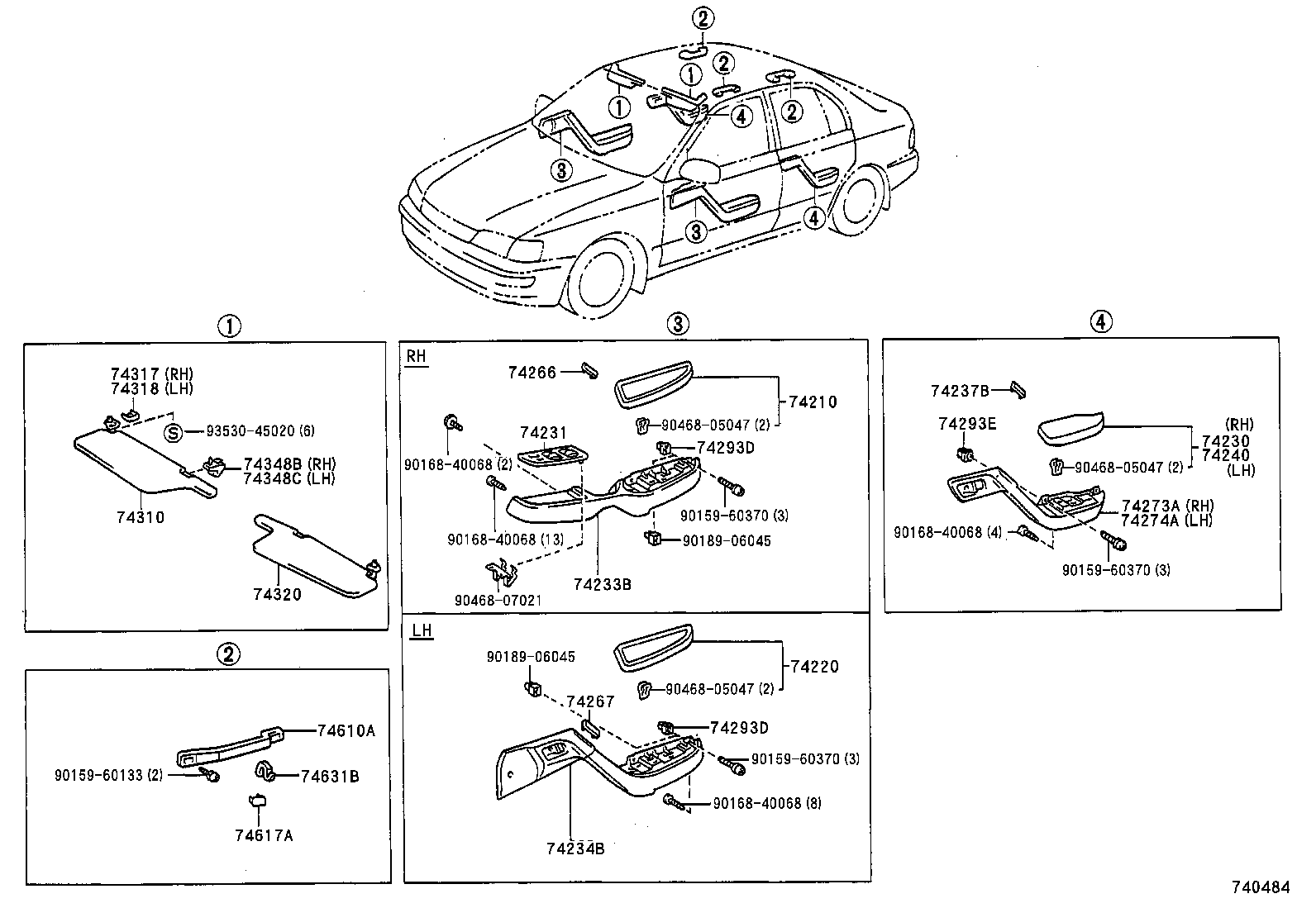

Click highlighted areas on diagram

diagram 74210 74220 74230 74231 74233B 74234B 74237B 74240 74266 74267 74273A 74274A 74293D 74293D 74293E 74310 74317 74318 74320 74348B 74348C 74610A 74617A 74631B 9015960133 9015960370 9015960370 9015960370 9016840068 9016840068 9016840068 9016840068 9018906045 9018906045 9046805047 9046805047 9046805047 9046807021 9353045020
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-20220B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74210-20220J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74210-20220C0

ST191..JPP

BLACK,TRIM2#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-20220J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74220-20220B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74220-20220C0

ST191..JPP

BLACK,TRIM2#

 1
74230 - ARMREST ASSY, REAR, RH
74250-20130C0

ST191..JPP

BLACK,TRIM2#

 1
74250-20130B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74250-20130J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-20270C0

ST191..JPP

BLACK,TRIM2#,8#

 1
74231-20270C0

ST191..JPP

BLACK,TRIM1#,8#

 1
74233B - PANEL, FRONT DOOR ARMREST BASE, LOWER RH
74233-20120C0

ST191..JPP

BLACK,TRIM2#

 1
74233-20120B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74233-20120J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74233-20130B0

ST191..JPP

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
74233-20130J0

ST191..JPP

W(POWER WINDOW),DK.BLUE,TRIM8#

 1
74233-20130C0

ST191..JPP

W(POWER WINDOW),BLACK,TRIM2#

 1
74234B - PANEL, FRONT DOOR ARMREST BASE, LOWER LH
74234-20130C0

ST191..JPP

BLACK,TRIM2#

 1
74234-20130B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74234-20130J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74237B - CAP, DOOR ARMREST BASE
74237-20040J0

ST191..JPP

DK.BLUE,TRIM8#

 2
74237-20040C0

ST191..JPP

BLACK,TRIM2#

 2
74237-20040B0

ST191..JPP

SHADOW GRAY,TRIM1#

 2
74240 - ARMREST ASSY, REAR, LH
74260-20080J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74260-20080C0

ST191..JPP

BLACK,TRIM2#

 1
74260-20080B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74266 - CAP, DOOR ARMREST, RH
74266-20070B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74266-20070J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74266-20070C0

ST191..JPP

BLACK,TRIM2#

 1
74267 - CAP, DOOR ARMREST, LH
74266-20070J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74266-20070B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74266-20070C0

ST191..JPP

BLACK,TRIM2#

 1
74273A - PANEL, REAR DOOR ARMREST BASE, LOWER RH
74273-20060C0

ST191..JPP

BLACK,TRIM2#

 1
74273-20060B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74273-20060J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74274A - PANEL, REAR DOOR ARMREST BASE, LOWER LH
74274-20050J0

ST191..JPP

DK.BLUE,TRIM8#

 1
74274-20050B0

ST191..JPP

SHADOW GRAY,TRIM1#

 1
74274-20050C0

ST191..JPP

BLACK,TRIM2#

 1
74293D - PLATE, FRONT DOOR ARMREST, NO.1
74293-32010

ST191..JPP

 4
74293D - PLATE, FRONT DOOR ARMREST, NO.1
74293-32010

ST191..JPP

 4
74293E - PLATE, REAR DOOR ARMREST, NO.1
74293-32010

ST191..JPP

 6
74310 - VISOR ASSY, RH
74310-2B280B1

ST191..JPP

GRAY,TRIM1#,8#

 1
74310-2B280B1

ST191..JPP

GRAY,TRIM2#,8#

 1
74317 - COVER, VISOR BRACKET, RH
74317-32010B0

ST191..JPP

GRAY,TRIM2#,8#

 1
74317-32010B0

ST191..JPP

GRAY,TRIM1#,8#

 1
74318 - COVER, VISOR BRACKET, LH
74317-32010B0

ST191..JPP

GRAY,TRIM2#,8#

 1
74317-32010B0

ST191..JPP

GRAY,TRIM1#,8#

 1
74320 - VISOR ASSY, LH
74320-2B090B1

ST191..JPP

GRAY,TRIM2#,8#

 1
74320-2B090B1

ST191..JPP

GRAY,TRIM1#,8#

 1
74348B - HOLDER, VISOR, RH
74348-20030B0

ST191..JPP

GRAY,TRIM1#,8#

 1
74348-20030B0

ST191..JPP

GRAY,TRIM2#,8#

 1
74348C - HOLDER, VISOR, LH
74348-20030B0

ST191..JPP

GRAY,TRIM1#,8#

 1
74348-20030B0

ST191..JPP

GRAY,TRIM2#,8#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-32020B1

ST191..JPP

GRAY,TRIM1#,8#

 3
74610-32020B1

ST191..JPP

GRAY,TRIM2#,8#

 3
74617A - PLUG, ASSIST GRIP
74617-16010B4

ST191..JPP

GRAY,TRIM1#,8#

 6
74617-16010B4

ST191..JPP

GRAY,TRIM2#,8#

 6
74631B - HOOK, COAT
74631-32020B1

ST191..JPP

GRAY,TRIM1#,8#

 2
74631-32020B1

ST191..JPP

GRAY,TRIM2#,8#

 2
Common parts
90159-60133
90159-60370
90168-40068
90189-06045
90468-05047
90468-07021
93530-45020
