ST191R-DWMDK (1992)

Toyota Corona Wg

Production Nov 1992 - Jan 1996
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )JPP

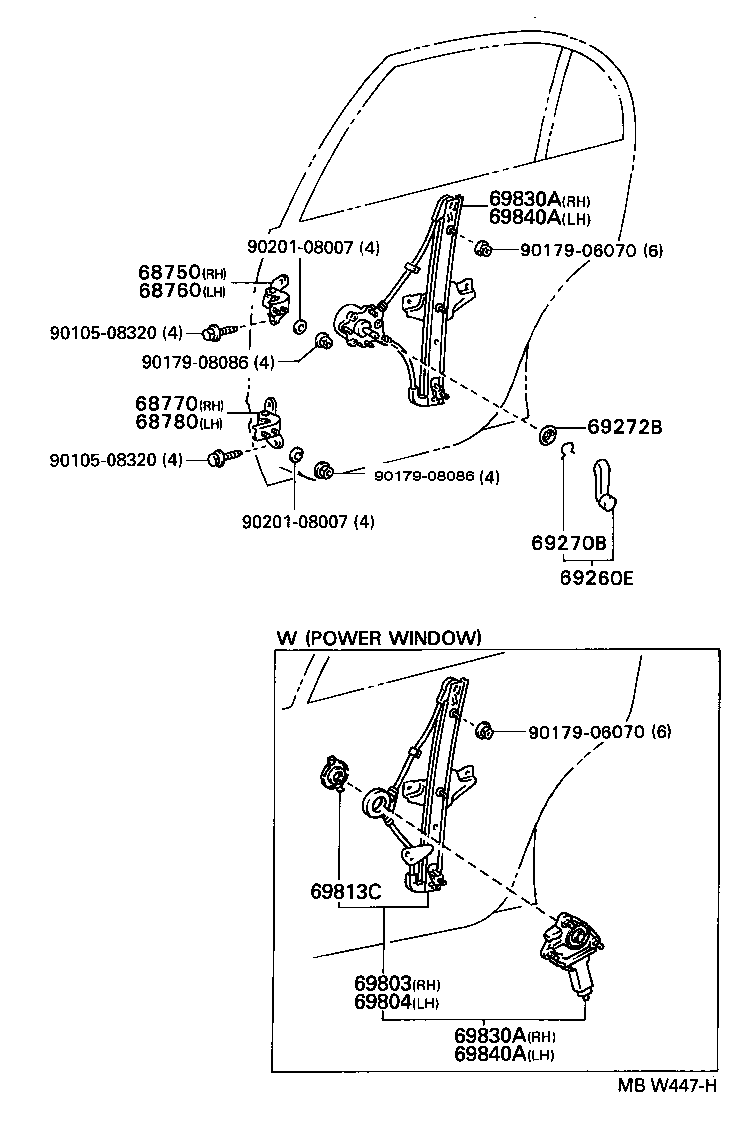

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69270B 69272B 69803 69804 69813C 69830A 69830A 69840A 69840A 9010508320 9010508320 9017906070 9017906070 9017908086 9017908086 9020108007 9020108007
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20100

ST191..JPP

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20100

ST191..JPP

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-20080

ST191..JPP

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-20090

ST191..JPP

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-20090J0

ST191..JPP

DARK BLUE,TRIM8#

 2
69260-20090B1

ST191..JPP

SHADOW GRAY,TRIM1#

 2
69260-20090C0

ST191..JPP

BLACK,TRIM2#

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

ST191..JPP

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-2201008

ST191..JPP

NATURAL WHITE,TRIM2#,8#

 2
69285-2201008

ST191..JPP

NATURAL WHITE,TRIM1#,8#

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-20220

ST191..JPP

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-20220

ST191..JPP

 1
69813C - PLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69813-32010

ST191..JPP

 2
69813-32040

ST191..JPP

RH

 1
69814-32010

ST191..JPP

LH

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-20260

ST191..JPP

 1
69830-20270

ST191..JPP

W(POWER WINDOW)

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-20260

ST191..JPP

 1
69830-20270

ST191..JPP

W(POWER WINDOW)

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-20250

ST191..JPP

 1
69840-20260

ST191..JPP

W(POWER WINDOW)

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-20250

ST191..JPP

 1
69840-20260

ST191..JPP

W(POWER WINDOW)

 1
Common parts
90105-08320
90179-06070
90179-08086
90201-08007
