ST191R-DWMDK (1992)
Toyota Corona Wg
Production
Nov 1992
-
Jan 1996
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9211- )JPP

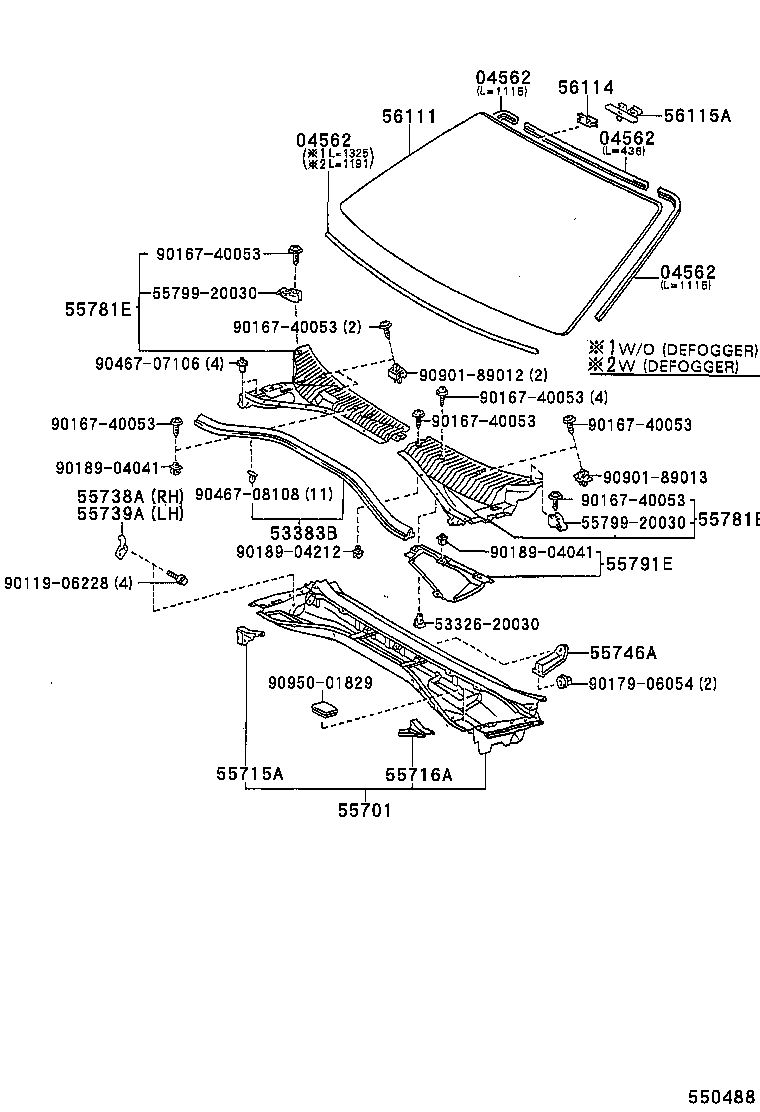

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
ST191..JPP |
1 | ||
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
ST191..JPP |
1 | ||
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
ST191..JPP |
1 | ||
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
ST191..JPP |
1 | ||
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-20160 |
ST191..JPP |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-2B030 |
ST191..JPP |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-20120 |
ST191..JPP |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-20090 |
ST191..JPP |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-20050 |
ST191..JPP |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-20050 |
ST191..JPP |
1 | ||
| 55746A - REINFORCEMENT, COWL TOP, INNER LOWER | ||||
| 55746-20100 |
ST191..JPP |
1 | ||
| 55746-20100 |
ST191..JPP |
1 | ||
| 55746-20100 |
ST191..JPP |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-20150 |
ST191..JPP RH |
1 | ||
| 55709-20070 |
ST191..JPP LH |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-20150 |
ST191..JPP RH |
1 | ||
| 55709-20070 |
ST191..JPP LH |
1 | ||
| 55791E - COVER, HEATER DUCT HOLE | ||||
| 55790-20010 |
ST191..JPP |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-2B121 |
ST191..JPP *LAM,T=4.76,BLUE,W(TOP SHADE) |
1 | ||
| 56111-2B110 |
ST191..JPP *LAM,T=4.76,BLUE |
1 | ||
| 56111-2B111 |
ST191..JPP *LAM,T=4.76,BLUE |
1 | ||
| 56111-2B120 |
ST191..JPP *LAM,T=4.76,BLUE,W(TOP SHADE) |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-20010 |
ST191..JPP |
2 | ||
| 56114-20040 |
ST191..JPP |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-20060 |
ST191..JPP |
2 | ||
| Common parts | ||||
| 53326-20030 | ||||
| 55799-20030 | ||||
| 90119-06228 | ||||
| 90167-40053 | ||||
| 90179-06054 | ||||
| 90189-04041 | ||||
| 90189-04212 | ||||
| 90467-07106 | ||||
| 90467-08108 | ||||
| 90901-89012 | ||||
| 90901-89013 | ||||
| 90950-01829 | ||||
