ST191R-BEPNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

Click highlighted areas on diagram

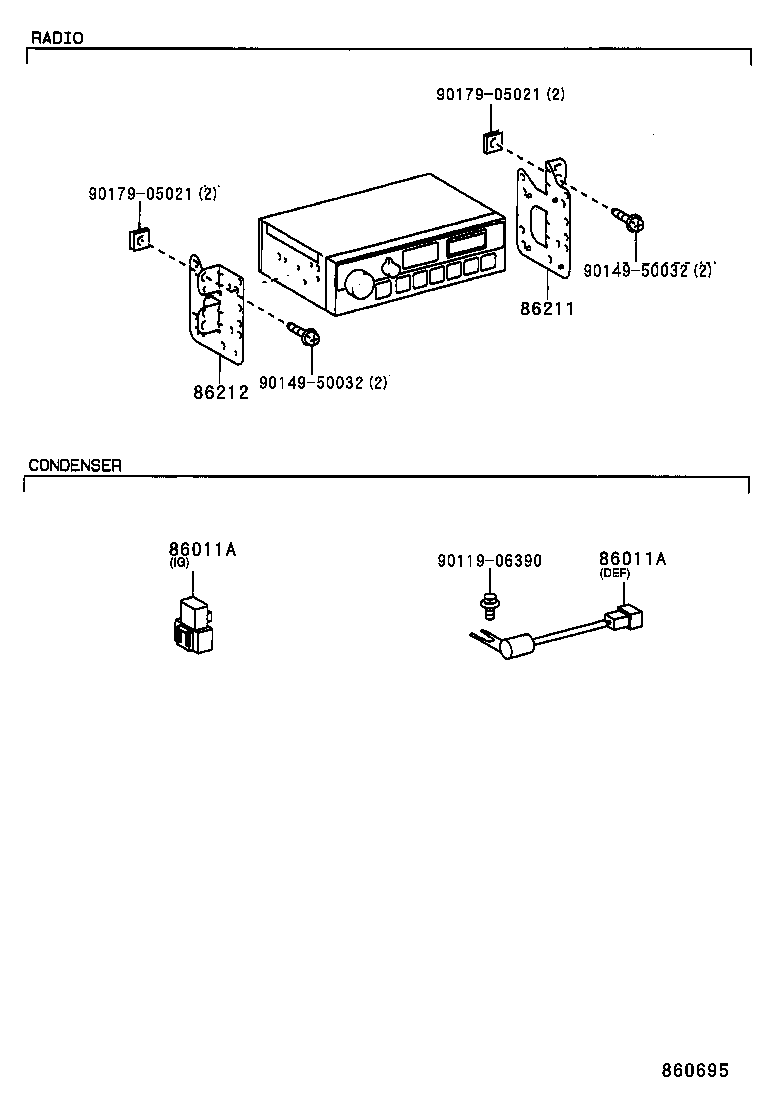

diagram 86011A 86011A 86211 86212 9011906390 9014950032 9014950032 9017905021 9017905021
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04119

AT190,CT190,ST191..UKP

DEF

 1
90980-04083

ST191..UKP

IG

 1
86011A - CONDENSER, RADIO SETTING
90980-04119

AT190,CT190,ST191..UKP

DEF

 1
90980-04083

ST191..UKP

IG

 1
86211 - BRACKET, RADIO, NO.1
86211-20310

AT190,ST191..UKP..RHD

 1
86212 - BRACKET, RADIO, NO.2
86212-20300

AT190,ST191..UKP..RHD

 1
Common parts
90119-06390
90149-50032
90179-05021
