ST191R-BEPNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )ST191..UKP..ATM

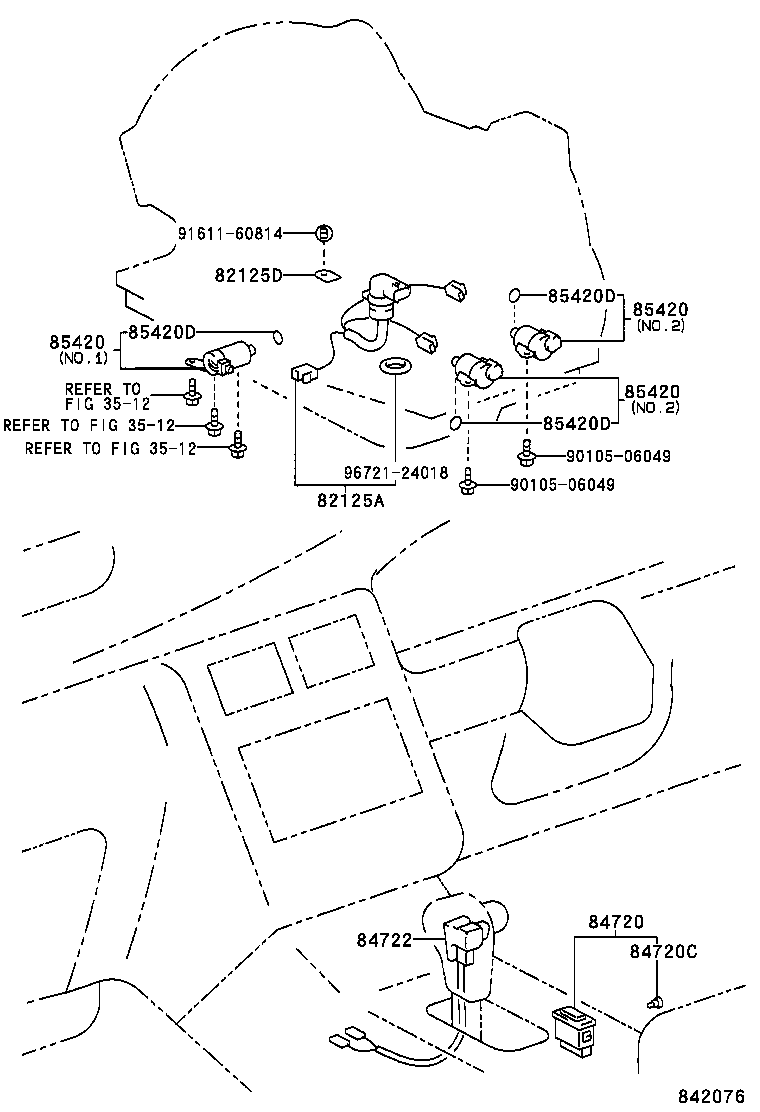

Click highlighted areas on diagram

diagram 3512 3512 3512 82125A 82125D 84720 84720C 84722 85420 85420 85420 85420D 85420D 85420D 9010506049 9010506049 9161160814 9672124018
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-20220

ST191..UKP..ATM

 1
82125D - PLATE, TRANSMISSION WIRE LOCK
33485-30020

ST191..UKP..ATM

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-05010

AT190,ST191..UKP..ATM

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
84999-05040

AT190,ST191..UKP..ATM

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-20150C0

ST191..UKP..RHD..ATM

BLACK,TRIM1#,8#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-20140

ST191..UKP..ATM

NO.1

 1
85420-30200

ST191..UKP..ATM

NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-20140

ST191..UKP..ATM

NO.1

 1
85420-30200

ST191..UKP..ATM

NO.2

 2
85420 - SOLENOID ASSY, TRANSMISSION
85420-20140

ST191..UKP..ATM

NO.1

 1
85420-30200

ST191..UKP..ATM

NO.2

 2
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AT190,ST191..UKP..ATM

 6
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AT190,ST191..UKP..ATM

 6
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AT190,ST191..UKP..ATM

 6
Common parts
90105-06049
91611-60814
96721-24018
Linked diagrams
3512
