ST191R-BEPNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

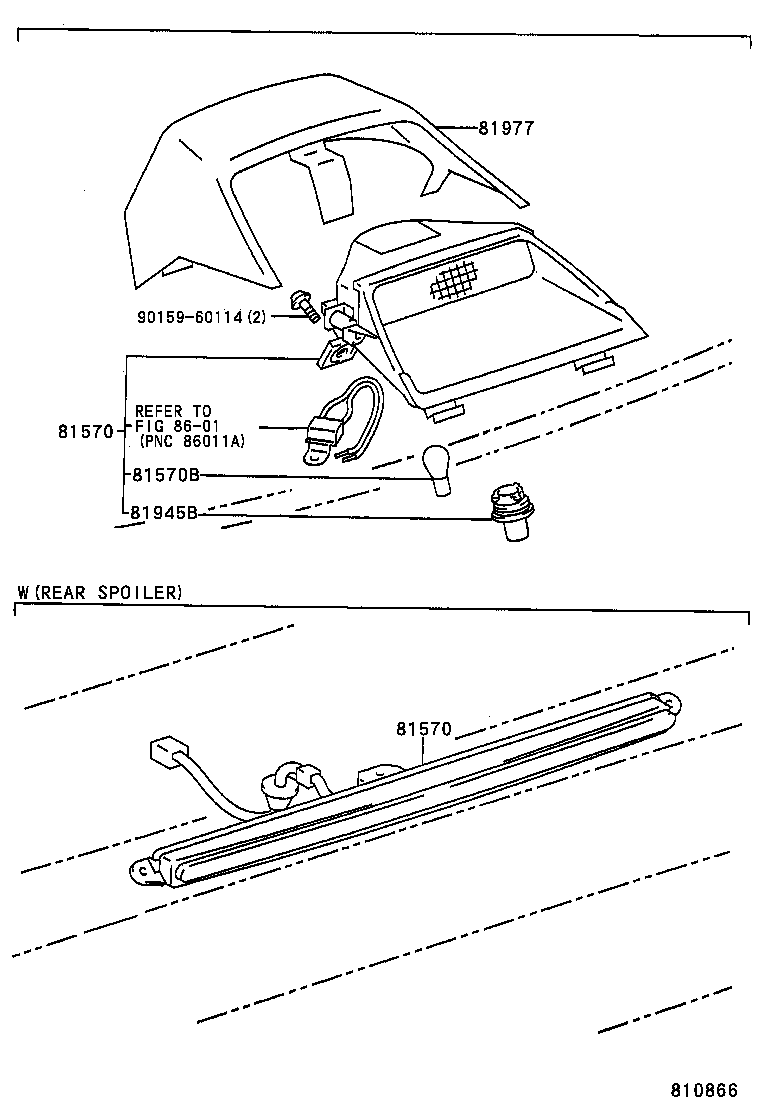

Click highlighted areas on diagram

diagram 81570 81570 81570B 81945B 81977 8601 9015960114
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-20181

AT190,ST191..UKP

W(REAR SPOILER)

 1
81570-05010C0

AT190,ST191..UKP

W/O(REAR SPOILER),BLACK,TRIM1#,8#

 1
81570 - LAMP ASSY, CENTER STOP
81570-20181

AT190,ST191..UKP

W(REAR SPOILER)

 1
81570-05010C0

AT190,ST191..UKP

W/O(REAR SPOILER),BLACK,TRIM1#,8#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90080-81035

AT190,ST191..UKP

12V 21W

 1
81945B - SOCKET, STOP CENTER LAMP BULB
81945-05010

AT190,ST191..UKP

 1
81977 - COVER, CENTER STOP LAMP
81977-05010B0

AT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
81977-05010J0

AT190,ST191..UKP

DK.BLUE,TRIM8#

 1
Common parts
90159-60114
Linked diagrams
8601
