ST191R-BEPNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)3SFE..UKP

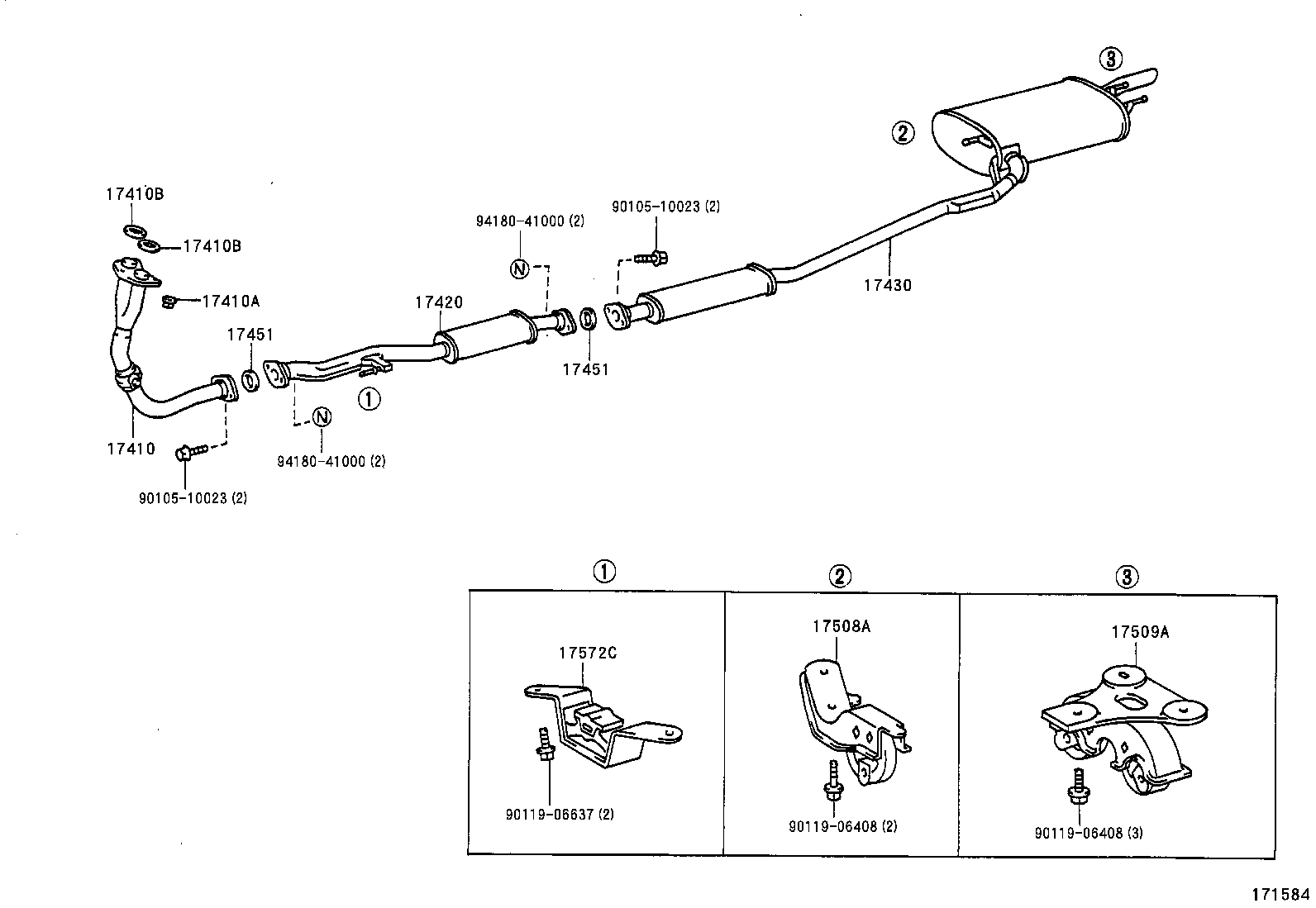

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17420 17430 17451 17451 17508A 17509A 17572C 9010510023 9010510023 9011906408 9011906408 9011906637 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-03220

3SFE..ST191..UKP

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,3SFE..AT190,ST191..UKP

 3
17410B - GASKET, EXHAUST PIPE
90917-06061

3SFE..ST191..UKP

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

3SFE..ST191..UKP

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-02111

4AFE,3SFE..AT190,ST191..UKP

 1
17420-02110

4AFE,3SFE..AT190,ST191..UKP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-02140

4AFE,3SFE..AT190,ST191..UKP

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,3SFE..AT190,ST191..UKP

 2
17451 - GASKET, EXHAUST PIPE
90917-06046

4AFE,3SFE..AT190,ST191..UKP

 2
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-74030

4AFE,2CT,3SFE..AT190,CT190,ST191..UKP

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-74110

4AFE,2CT,3SFE..AT190,CT190,ST191..UKP

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-02020

4AFE,3SFE..AT190,ST191..UKP

 1
17571-02030

4AFE,3SFE..AT190,ST191..UKP

 1
Common parts
90105-10023
90119-06408
90119-06637
94180-41000
