ST191R-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

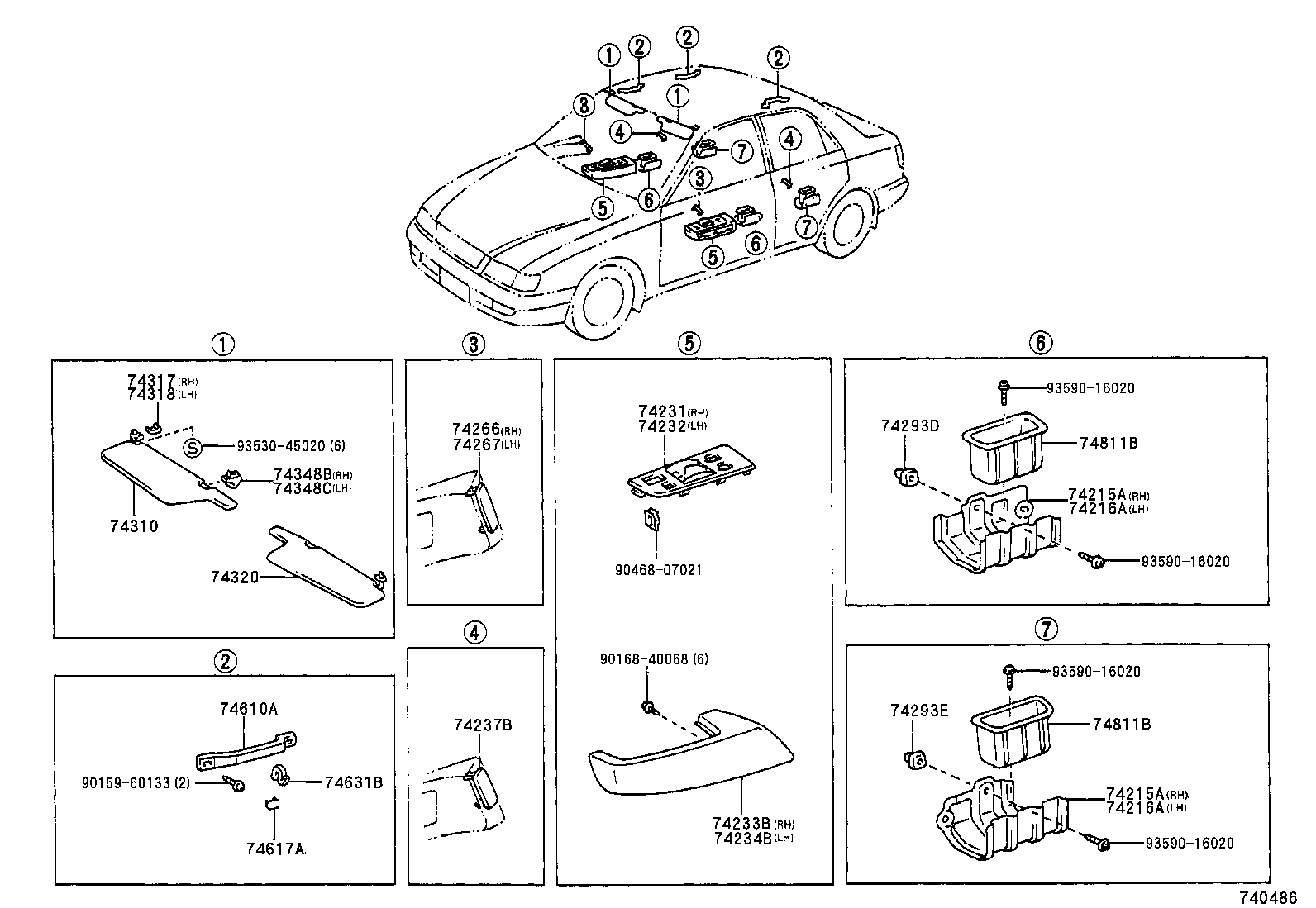

Click highlighted areas on diagram

diagram 74215A 74215A 74216A 74216A 74231 74232 74233B 74234B 74237B 74266 74267 74293D 74293E 74310 74317 74318 74320 74348B 74348C 74610A 74617A 74631B 74811B 74811B 9015960133 9016840068 9046807021 9353045020 9359016020 9359016020 9359016020 9359016020
Part # Description Qty Price
74215A - BASE, DOOR ARMREST RH
74215-20040

AT190,CT190,ST191..UKP

REAR

 1
74215-20030

AT190,CT190,ST191..UKP

FRONT

 1
74215A - BASE, DOOR ARMREST RH
74215-20040

AT190,CT190,ST191..UKP

REAR

 1
74215-20030

AT190,CT190,ST191..UKP

FRONT

 1
74216A - BASE, DOOR ARMREST, LH
74216-20040

AT190,CT190,ST191..UKP

REAR

 1
74216-20030

AT190,CT190,ST191..UKP

FRONT

 1
74216A - BASE, DOOR ARMREST, LH
74216-20040

AT190,CT190,ST191..UKP

REAR

 1
74216-20030

AT190,CT190,ST191..UKP

FRONT

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-05010C0

AT190,ST191..UKP..RHD

BLACK,TRIM1#,8#

 1
74233B - PANEL, FRONT DOOR ARMREST BASE, LOWER RH
74233-05030B0

AT190,ST191..UKP..RHD

SHADOW GRAY,TRIM1#

 1
74233-05030J0

AT190,ST191..UKP..RHD

DK.BLUE,TRIM8#

 1
74293D - PLATE, FRONT DOOR ARMREST, NO.1
74293-32010

AT190,CT190,ST191..UKP

 4
74293E - PLATE, REAR DOOR ARMREST, NO.1
74293-32010

AT190,CT190,ST191..UKP

 4
74310 - VISOR ASSY, RH
74310-05010B0

AT190,ST191..UKP..RHD

GRAY,TRIM1#,8#

 1
74310-05030B0

AT190,ST191..UKP..RHD

W(MOON ROOF),GRAY,TRIM1#,8#

 1
74317 - COVER, VISOR BRACKET, RH
74317-05010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 1
74318 - COVER, VISOR BRACKET, LH
74317-05010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 1
74320 - VISOR ASSY, LH
74320-05030B0

AT190,ST191..UKP..RHD

W(MOON ROOF),GRAY,TRIM1#,8#

 1
74320-05010B0

AT190,ST191..UKP..RHD

GRAY,TRIM1#,8#

 1
74348B - HOLDER, VISOR, RH
74348-05010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 1
74348C - HOLDER, VISOR, LH
74348-05010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 1
74610A - GRIP SUB-ASSY, ASSIST
74610-05010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 3
74617A - PLUG, ASSIST GRIP
74617-05010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 6
74631B - HOOK, COAT
74631-05010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 1
74811B - HANDLE, DOOR PULL
74811-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 4
74811-05010J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 4
74811B - HANDLE, DOOR PULL
74811-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 4
74811-05010J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 4
Common parts
90159-60133
90168-40068
90468-07021
93530-45020
93590-16020
