ST191R-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

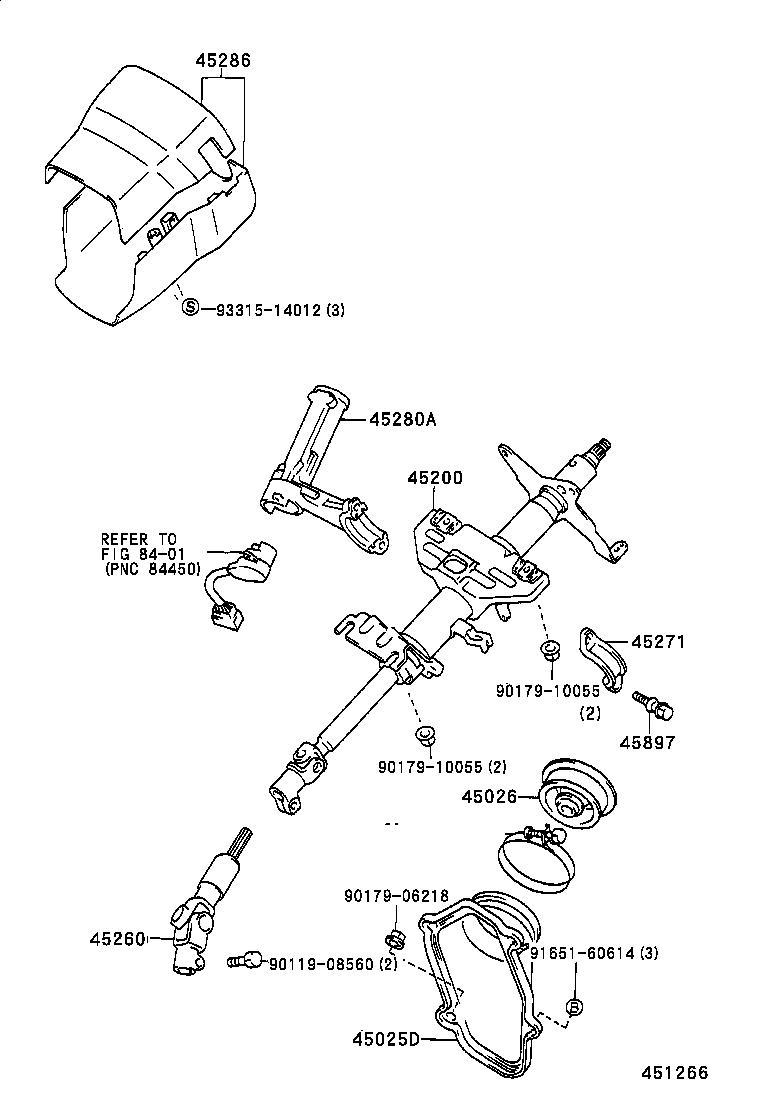

Click highlighted areas on diagram

diagram 45025D 45026 45200 45260 45271 45280A 45286 45897 8401 9011908560 9017906218 9017910055 9017910055 9165160614 9331514012
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-05010

AT190,ST191..UKP..RHD

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-05010

AT190,CT190,ST191..UKP

 1
45200 - POST ASSY, STEERING
45200-05080

AT190,ST191..UKP..RHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-05010

AT190,ST191..UKP..RHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-05010

AT190,CT190,ST191..UKP

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-05021

CT190,ST191..UKP

 1
45286 - COVER, STEERING COLUMN
45286-05908C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AT190,CT190,ST191..UKP

 2
Common parts
90119-08560
90179-06218
90179-10055
91651-60614
93315-14012
Linked diagrams
8401
