ST191L-BEPNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

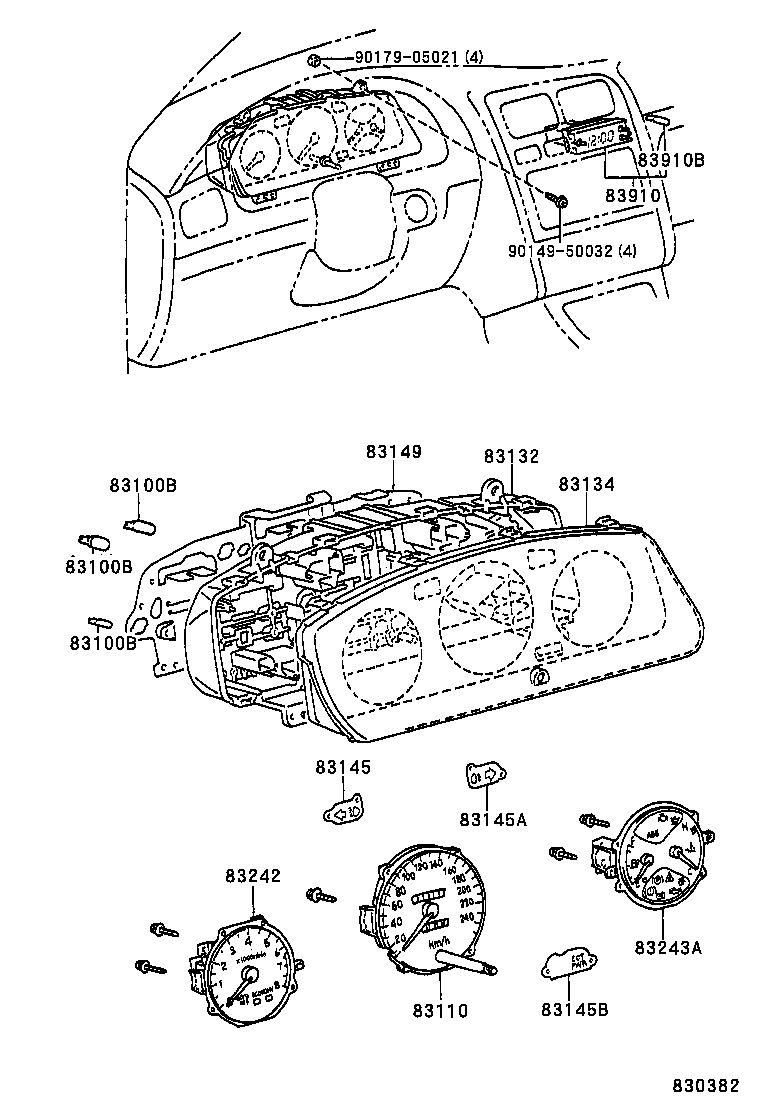

ILLUST NO. 1 OF 2(9601- )UKP

Click highlighted areas on diagram

W(TACHOMETER) VDO

diagram 83100B 83100B 83100B 83110 83132 83134 83145 83145A 83145B 83149 83242 83243A 83910 83910B 9014950032 9017905021
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
83120-05030

AT190,CT190,ST191..UKP

12V 3.4W,GREEN CAP

 4
83120-05020

AT190,CT190,ST191..UKP

12V 3.4W

 3
83120-05010

ST191..UKP..ATM

12V 1.2W

 15
83100B - BULB, COMBINATION METER, NO.1
83120-05030

AT190,CT190,ST191..UKP

12V 3.4W,GREEN CAP

 4
83120-05020

AT190,CT190,ST191..UKP

12V 3.4W

 3
83120-05010

ST191..UKP..ATM

12V 1.2W

 15
83100B - BULB, COMBINATION METER, NO.1
83120-05030

AT190,CT190,ST191..UKP

12V 3.4W,GREEN CAP

 4
83120-05020

AT190,CT190,ST191..UKP

12V 3.4W

 3
83120-05010

ST191..UKP..ATM

12V 1.2W

 15
83110 - SPEEDOMETER ASSY
83110-05042

AT190,ST191..UKP

W(TACHOMETER)

 1
83110-05021

AT190,ST191..UKP

 1
83132 - CASE, COMBINATION METER
83841-05060

AT190,CT190,ST191..UKP

 1
83134 - COVER, COMBINATION METER, NO.1
83138-05020

AT190,CT190,ST191..UKP

 1
83145 - LENS, METER, NO.1
83145-05010

AT190,CT190,ST191..UKP

 1
83145A - LENS, METER, NO.2
83145-05020

AT190,CT190,ST191..UKP

 1
83145B - LENS, METER, NO.3
83831-05060

AT190,CT190,ST191..UKP

 1
83149 - PLATE, METER CIRCUIT
83861-05060

AT190,ST191..UKP

 1
83242 - TACHOMETER ASSY, ENGINE
83881-05110

ST191..UKP..ATM

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83882-05100

ST191..UKP

 1
83910 - CLOCK ASSY
83910-05020

AT190,CT190,ST191..UKP

 1
83910B - BULB, CLOCK INDICATOR
90011-11003

AT190,CT190,ST191..UKP

 1
Common parts
90149-50032
90179-05021

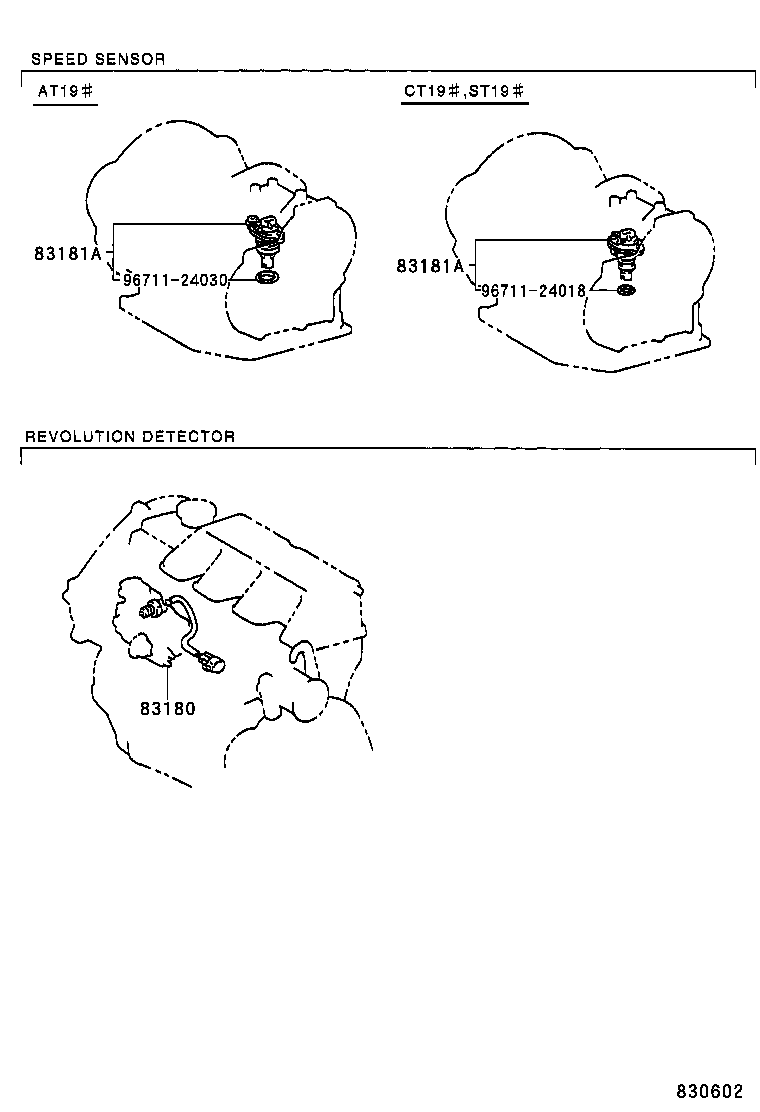

ILLUST NO. 2 OF 2(9601- )UKP

Click highlighted areas on diagram

diagram 83180 83181A 83181A 9671124018 9671124030
Part # Description Qty Price
83181A - SENSOR, SPEEDOMETER
83181-12060

ST191..UKP..ATM

 1
83181A - SENSOR, SPEEDOMETER
83181-12060

ST191..UKP..ATM

 1
Common parts
96711-24018
96711-24030
