ST191L-BEPNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

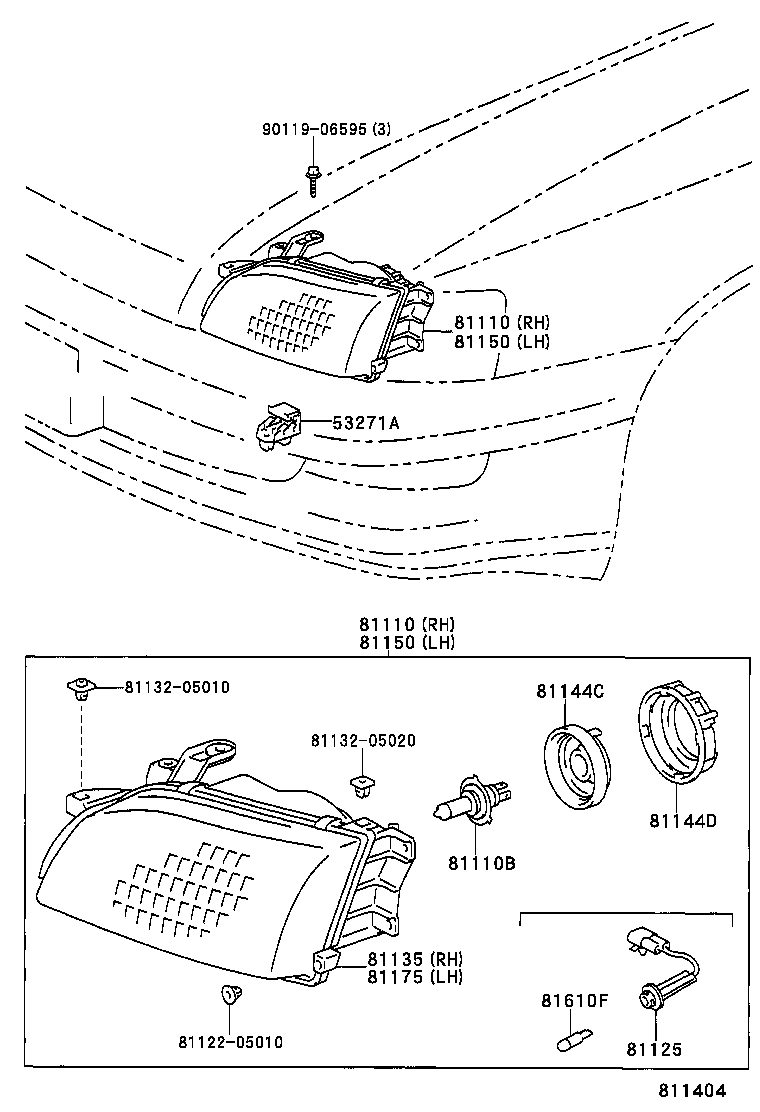

Click highlighted areas on diagram

diagram 53271A 81110 81110 81110B 8112205010 81125 8113205010 8113205020 81135 81144C 81144D 81150 81150 81175 81610F 9011906595
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

AT190,CT190,ST191..UKP

 2
81110 - HEADLAMP ASSY, RH
81110-05011

AT190,CT190,ST191..UKP..LHD

 1
81110-05070

AT190,CT190,ST191..UKP..LHD

2-HALOGEN

 1
81110 - HEADLAMP ASSY, RH
81110-05011

AT190,CT190,ST191..UKP..LHD

 1
81110-05070

AT190,CT190,ST191..UKP..LHD

2-HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81031

AT190,CT190,ST191..UKP

12V 60/55W,*HAL *WH

 2
81125 - CORD, HEADLAMP
81125-2B650

AT190,CT190,ST191..UKP

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-05010

AT190,CT190,ST191..UKP..LHD

 1
81130-05060

AT190,CT190,ST191..UKP..LHD

2-HALOGEN

 1
81144C - COVER, HEADLAMP SOCKET
81139-05010

AT190,CT190,ST191..UKP

 2
81144D - CAP, HEADLAMP LOCKING
81139-05020

AT190,CT190,ST191..UKP

 2
81150 - HEADLAMP ASSY, LH
81150-05011

AT190,CT190,ST191..UKP..LHD

 1
81150-05070

AT190,CT190,ST191..UKP..LHD

2-HALOGEN

 1
81150 - HEADLAMP ASSY, LH
81150-05011

AT190,CT190,ST191..UKP..LHD

 1
81150-05070

AT190,CT190,ST191..UKP..LHD

2-HALOGEN

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-05010

AT190,CT190,ST191..UKP..LHD

 1
81170-05060

AT190,CT190,ST191..UKP..LHD

2-HALOGEN

 1
81610F - BULB(FOR CLEARANCE LAMP)
90080-81030

AT190,CT190,ST191..UKP

12V 5W

 2
Common parts
81122-05010
81132-05010
81132-05020
90119-06595
