ST191L-BEPNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

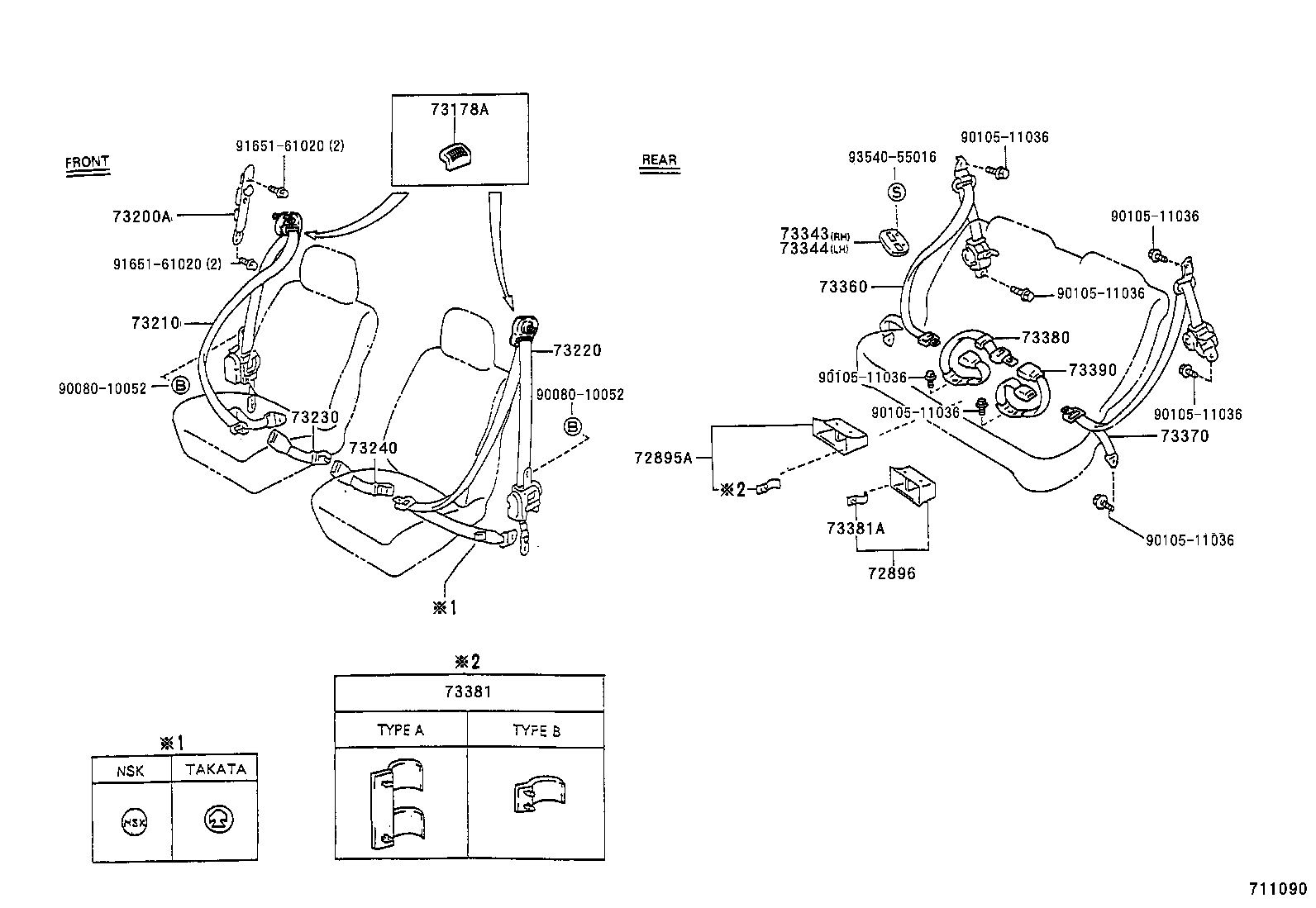

Click highlighted areas on diagram

diagram 72895A 72896 73178A 73200A 73210 73220 73230 73240 73343 73344 73360 73370 73380 73381 73381A 73390 9008010052 9008010052 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9165161020 9165161020 9354055016
Part # Description Qty Price
72895A - CASE, REAR SEAT BELT, RH
72895-05010C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
72896 - CASE, RR SEAT BELT, LH
72896-05010C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-05010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-05012B0

AT190,CT190,ST191..UKP

MD.GRAY,TRIM1#,8#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-05020C1

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73210-05021C1

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-05021C1

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73220-05020C1

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-05020C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-05020C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-05010C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-05010C1

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-05110C0

CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73360-05111C0

CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-05111C0

CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73370-05110C0

CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-05020C1

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
73381 - HOLDER, REAR SEAT BELT
73381-05010

AT190,CT190,ST191..UKP

TYPE A

 1
73381-05020

AT190,CT190,ST191..UKP

TYPE B

 1
73381A - HOLDER, REAR SEAT BELT NO.2
73381-05020

AT190,CT190,ST191..UKP

 2
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-05020C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
Common parts
90080-10052
90105-11036
91651-61020
93540-55016
