ST191L-BEPNK (1996)
Toyota Corona Sed (Ukp)

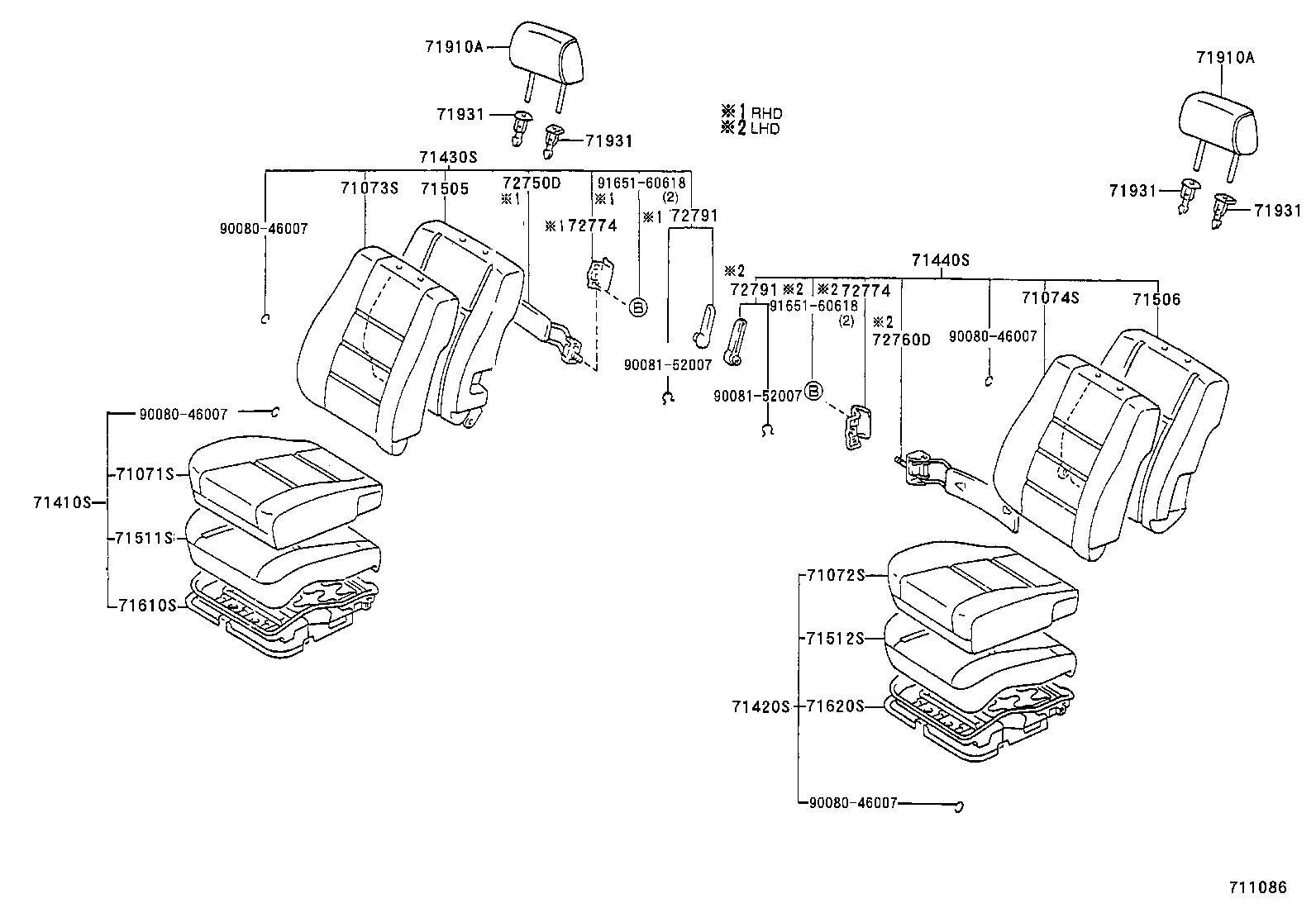

ILLUST NO. 1 OF 2(9601- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-05280B0 |
CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71071-05280J0 |
CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-05310B0 |
CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71072-05310J0 |
CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-05280J0 |
CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 71073-05280B0 |
CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-05190B0 |
CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71074-05190J0 |
CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-05260J0 |
CT190,ST191..UKP..LHD ***,DK. BLUE,TRIM8# |
1 | ||
| 71410-05260B0 |
CT190,ST191..UKP..LHD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-05280J0 |
CT190,ST191..UKP..LHD ***,DK. BLUE,TRIM8# |
1 | ||
| 71420-05280B0 |
CT190,ST191..UKP..LHD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-05270B0 |
CT190,ST191..UKP..LHD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-05270J0 |
CT190,ST191..UKP..LHD ***,DK. BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-05220B0 |
CT190,ST191..UKP..LHD ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-05220J0 |
CT190,ST191..UKP..LHD ***,DK. BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-05050 |
CT190,ST191..UKP..LHD |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-05030 |
CT190,ST191..UKP..LHD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-05030 |
CT190,ST191..UKP |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-05030 |
CT190,ST191..UKP |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-05020 |
ST191..UKP..LHD;AT190,CT190..UKP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-05010 |
CT190,ST191..UKP..LHD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-05080B0 |
CT190,ST191..UKP SHADOW GRAY,TRIM1# |
2 | ||
| 71910-05080J0 |
CT190,ST191..UKP DK. BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-05080B0 |
CT190,ST191..UKP SHADOW GRAY,TRIM1# |
2 | ||
| 71910-05080J0 |
CT190,ST191..UKP DK. BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-05010B0 |
AT190,CT190,ST191..UKP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-05010B0 |
AT190,CT190,ST191..UKP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-05010J0 |
AT190,CT190,ST191..UKP W(LOCK),DK. BLUE,TRIM8# |
2 | ||
| 71931-05010J0 |
AT190,CT190,ST191..UKP W/O(LOCK),DK. BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-05010B0 |
AT190,CT190,ST191..UKP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-05010B0 |
AT190,CT190,ST191..UKP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-05010J0 |
AT190,CT190,ST191..UKP W(LOCK),DK. BLUE,TRIM8# |
2 | ||
| 71931-05010J0 |
AT190,CT190,ST191..UKP W/O(LOCK),DK. BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-05010B0 |
AT190,CT190,ST191..UKP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-05010B0 |
AT190,CT190,ST191..UKP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-05010J0 |
AT190,CT190,ST191..UKP W(LOCK),DK. BLUE,TRIM8# |
2 | ||
| 71931-05010J0 |
AT190,CT190,ST191..UKP W/O(LOCK),DK. BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-05010B0 |
AT190,CT190,ST191..UKP W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-05010B0 |
AT190,CT190,ST191..UKP W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-05010J0 |
AT190,CT190,ST191..UKP W(LOCK),DK. BLUE,TRIM8# |
2 | ||
| 71931-05010J0 |
AT190,CT190,ST191..UKP W/O(LOCK),DK. BLUE,TRIM8# |
2 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-12100 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72775-05020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 72774 - PROTECTOR, LUMBAR SUPPORT SPRING | ||||
| 72775-05020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 72791-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 72791-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90081-52007 | ||||
| 91651-60618 | ||||

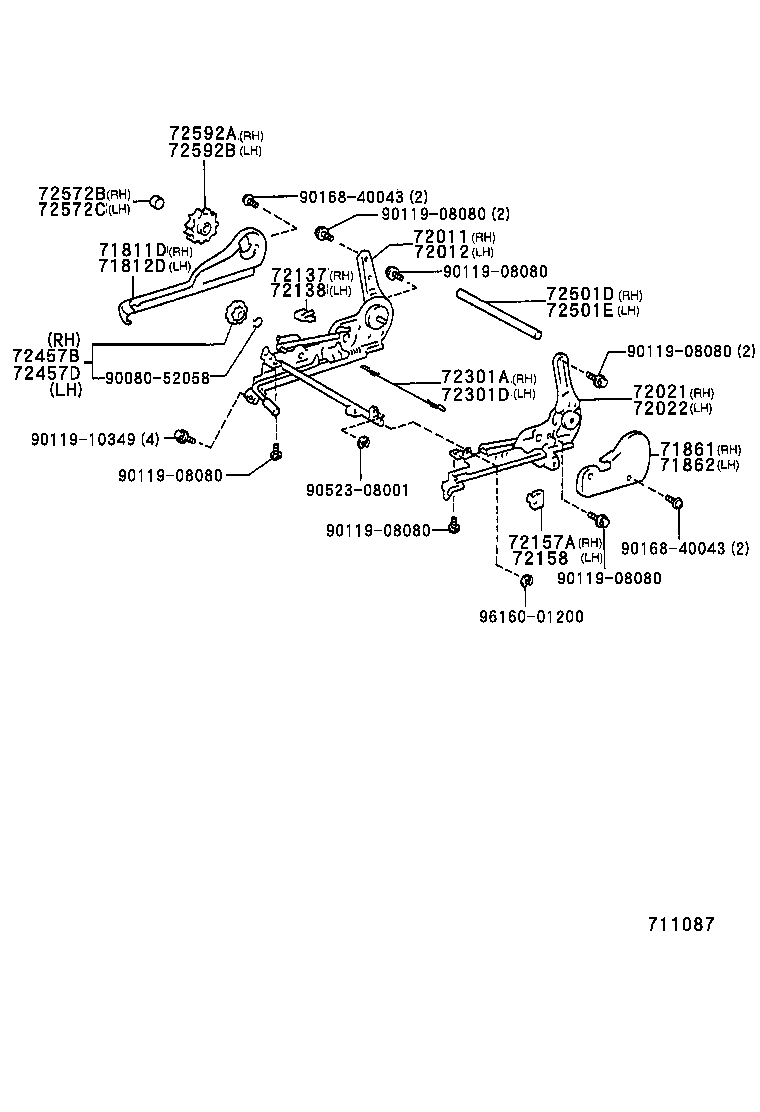

ILLUST NO. 2 OF 2(9601- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-05010J0 |
ST191..UKP..LHD;AT190,CT190..UKP DK. BLUE,TRIM8# |
1 | ||
| 71811-05010B0 |
ST191..UKP..LHD;AT190,CT190..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-05020B0 |
CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 71812-05020J0 |
CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 71861-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 71862-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-05011 |
ST191..UKP..LHD;AT190,CT190..UKP |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-05021 |
CT190,ST191..UKP..LHD |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-05011 |
ST191..UKP..LHD;AT190,CT190..UKP |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-05021 |
CT190,ST191..UKP..LHD |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-05010C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-05010C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-05010C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-05010C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72311-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72311-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-05010J0 |
AT190,CT190,ST191..UKP..LHD DK. BLUE,TRIM8# |
1 | ||
| 72457-05010B0 |
AT190,CT190,ST191..UKP..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 72572-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-05010J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 72572-05010B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 72592A - KNOB,RECLINING ADJUSTER, RH | ||||
| 72592-05020B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 72592-05020J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72592-05020B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 72592-05020J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90080-52058 | ||||
| 90119-08080 | ||||
| 90119-10349 | ||||
| 90168-40043 | ||||
| 90523-08001 | ||||
| 96160-01200 | ||||
