ST191L-BEPNK (1996)
Toyota Corona Sed (Ukp)
(9601- )UKP
W(*80)

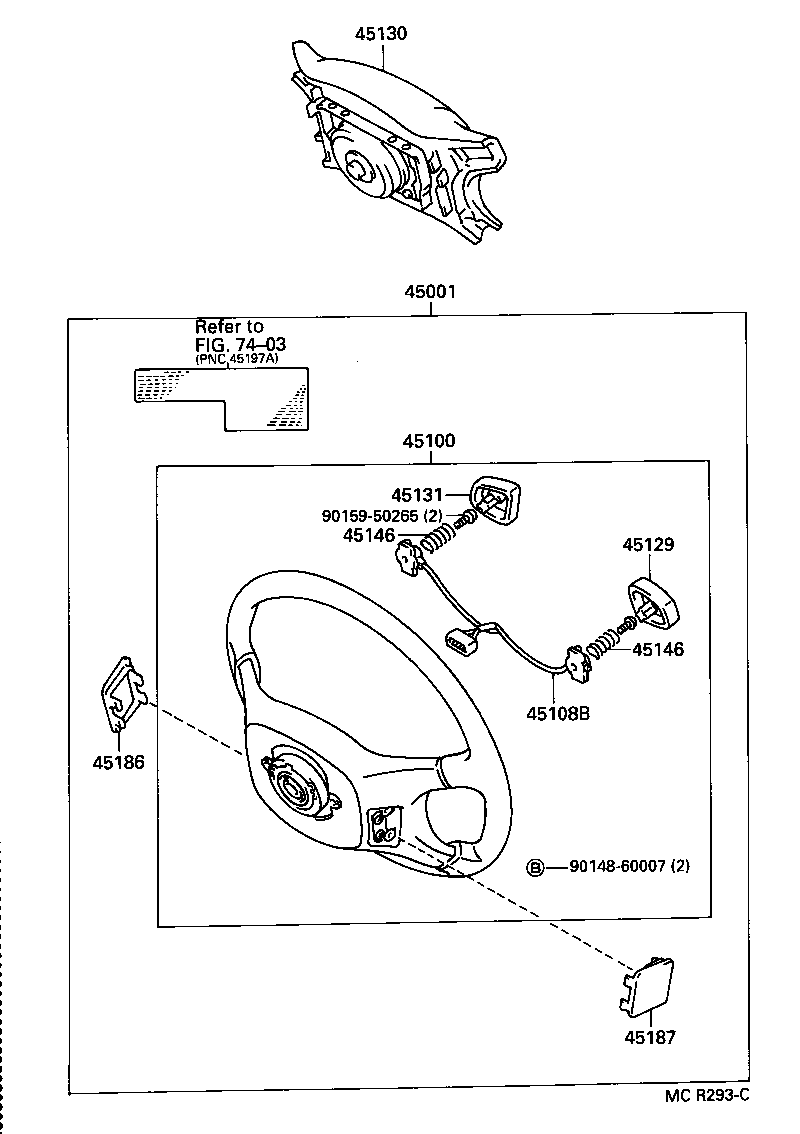

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45001 - AIR BAG KIT, STTERING WHEEL | ||||
| 45001-20050C0 |
AT190,CT190,ST191..UKP W(MECHANICAL TYPE *80),LEATHER,BLACK,TRIM1#,8# |
1 | ||
| 45001-20031C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 45001-20031C0 |
AT190,CT190,ST191..UKP W(MECHANICAL TYPE *80),URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45001-20051C0 |
AT190,CT190,ST191..UKP W(MECHANICAL TYPE *80),LEATHER,BLACK,TRIM1#,8# |
1 | ||
| 45001-20030C0 |
AT190,CT190,ST191..UKP W(MECHANICAL TYPE *80),URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-05020C0 |
AT190,CT190,ST191..UKP 4-SPOKE,URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B440C0 |
AT190,CT190,ST191..UKP 4-SPOKE,W(MECHANICAL TYPE *80),URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100-05031C0 |
AT190,CT190,ST191..UKP 4-SPOKE,LEATHER,W/O(*80),LEATHER,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B450C0 |
AT190,CT190,ST191..UKP 4-SPOKE,LEATHER,W(MECHANICAL TYPE *80),LEATHER,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B630C0 |
AT190,CT190,ST191..UKP 4-SPOLE,LEATHER,W(MECHANICAL TYPE *80),LEATHER,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B620C0 |
AT190,CT190,ST191..UKP 4-SPOKE,W(MECHANICAL TYPE *80),URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45108B - BUTTON SUB-ASSY, HORN(FOR STEERING WHEEL ASSY) | ||||
| 45108-32080 |
AT190,CT190,ST191..UKP |
1 | ||
| 45129 - BUTTON, HORN, NO.2 | ||||
| 45129-32020C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B390C0 |
AT190,CT190,ST191..UKP W(MECHANICAL TYPE *80),BLACK,TRIM1#,8# |
1 | ||
| 45130-05040C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 45130-2B351C0 |
AT190,CT190,ST191..UKP W(MECHANICAL TYPE *80),BLACK,TRIM1#,8# |
1 | ||
| 45131 - BUTTON, HORN, NO.1 | ||||
| 45131-32070C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-32070 |
AT190,CT190,ST191..UKP W(LEATHER STEERING WHEEL) |
6 | ||
| 45146-32070 |
AT190,CT190,ST191..UKP W(URETHANE STEERING WHEEL) |
2 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-32070 |
AT190,CT190,ST191..UKP W(LEATHER STEERING WHEEL) |
6 | ||
| 45146-32070 |
AT190,CT190,ST191..UKP W(URETHANE STEERING WHEEL) |
2 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-32040C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-32040C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| Common parts | ||||
| 90148-60007 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 7403 | ||||

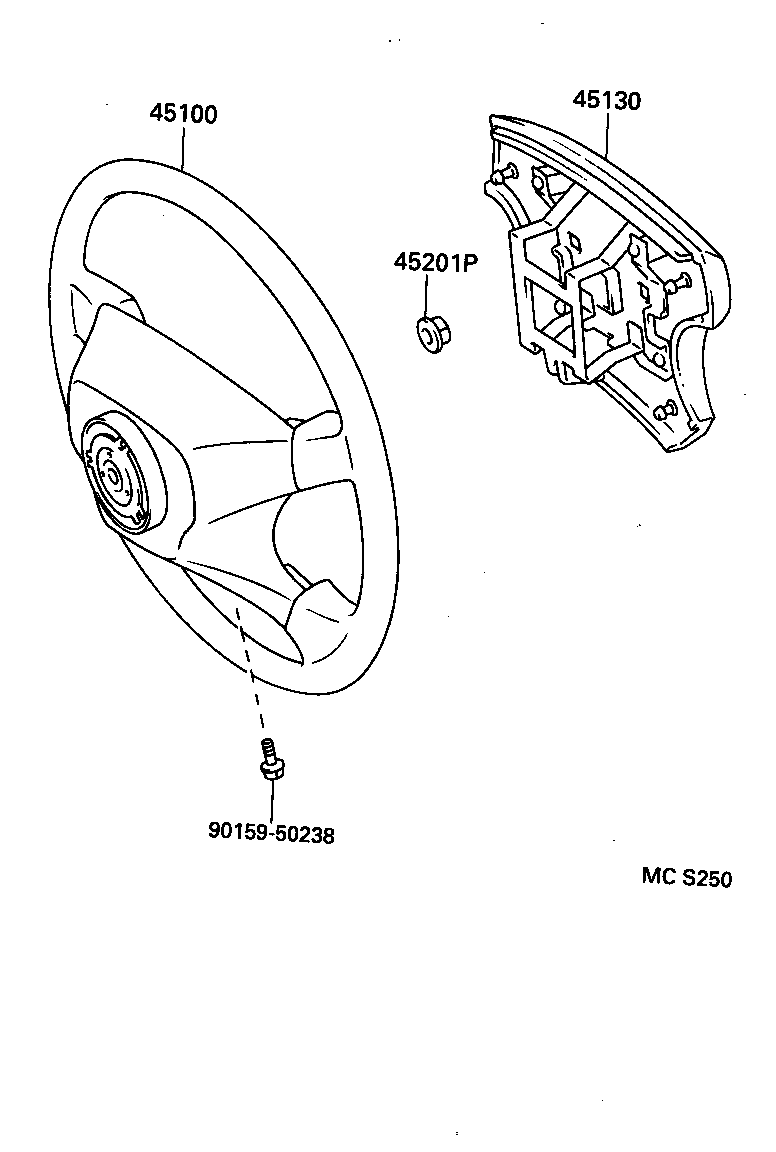

(9601- )UKP
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-05020C0 |
AT190,CT190,ST191..UKP 4-SPOKE,URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B440C0 |
AT190,CT190,ST191..UKP 4-SPOKE,W(MECHANICAL TYPE *80),URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45100-05031C0 |
AT190,CT190,ST191..UKP 4-SPOKE,LEATHER,W/O(*80),LEATHER,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B450C0 |
AT190,CT190,ST191..UKP 4-SPOKE,LEATHER,W(MECHANICAL TYPE *80),LEATHER,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B630C0 |
AT190,CT190,ST191..UKP 4-SPOLE,LEATHER,W(MECHANICAL TYPE *80),LEATHER,BLACK,TRIM1#,8# |
1 | ||
| 45100-2B620C0 |
AT190,CT190,ST191..UKP 4-SPOKE,W(MECHANICAL TYPE *80),URETHANE,BLACK,TRIM1#,8# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-2B390C0 |
AT190,CT190,ST191..UKP W(MECHANICAL TYPE *80),BLACK,TRIM1#,8# |
1 | ||
| 45130-05040C0 |
AT190,CT190,ST191..UKP BLACK,TRIM1#,8# |
1 | ||
| 45130-2B351C0 |
AT190,CT190,ST191..UKP W(MECHANICAL TYPE *80),BLACK,TRIM1#,8# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
AT190,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 90159-50238 | ||||
