ST191L-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )AT190,ST191..UKP..LHD

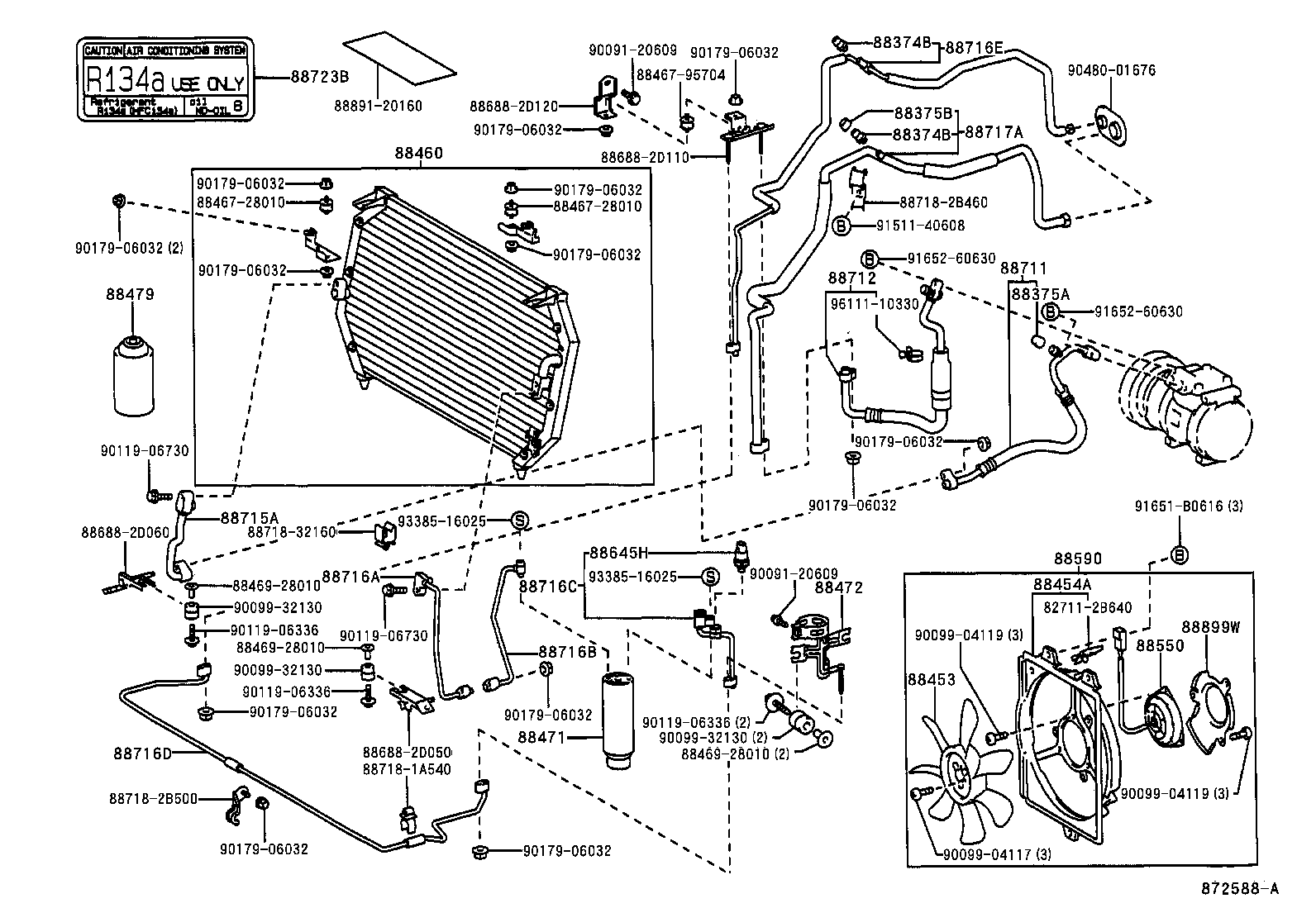

Click highlighted areas on diagram

DEALER OPTION

diagram 827112B640 88374B 88374B 88375A 88375B 88453 88454A 88460 8846728010 8846728010 8846795704 8846928010 8846928010 8846928010 88471 88472 88479 88550 88590 88645H 886882D050 886882D060 886882D110 886882D120 88711 88712 88715A 88716A 88716B 88716C 88716D 88716E 88717A 887181A540 887182B460 887182B500 8871832160 88723B 8889120160 88899W 9009120609 9009120609 9009904117 9009904119 9009904119 9009932130 9009932130 9009932130 9011906336 9011906336 9011906336 9011906730 9011906730 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9048001676 9151140608 91651B0616 9165260630 9165260630 9338516025 9338516025 9611110330
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

ST191..UKP;AT190..UKP..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080

AT190,ST191..UKP

 1
88454A - SHROUD, FAN
88454-20020

AT190,ST191..UKP

 1
88460 - CONDENSER ASSY, COOLER
88460-20370

AT190,ST191..UKP

DEALER OPITON

 1
88460-05010

AT190,ST191..UKP

W(AIR CONDITIONER)

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT190,CT190,ST191..UKP

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20150

AT190,CT190,ST191..UKP..LHD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007

AT190,ST191..UKP

250G

 3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-46030

AT190,ST191..UKP

 1
88590 - BLOWER ASSY, W/SHROUD
88590-20270

AT190,ST191..UKP

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AT190,CT190,ST191..UKP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20870

ST191..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B260

ST191..UKP..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

AT190,CT190,ST191..UKP

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

AT190,CT190,ST191..UKP

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D151

ST191..UKP;AT190,CT190..UKP..LHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D160

AT190,CT190,ST191..UKP..LHD

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2D132

AT190,CT190,ST191..UKP..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D440

ST191..UKP..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B530

ST191..UKP..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

AT190,CT190,ST191..UKP

 1
88899W - SUPPORT SUB-ASSY, B
88899-20270

AT190,ST191..UKP

 1
Common parts
82711-2B640
88467-28010
88467-95704
88469-28010
88688-2D050
88688-2D060
88688-2D110
88688-2D120
88718-1A540
88718-2B460
88718-2B500
88718-32160
88891-20160
90091-20609
90099-04117
90099-04119
90099-32130
90119-06336
90119-06730
90179-06032
90480-01676
91511-40608
91651-B0616
91652-60630
93385-16025
96111-10330

(9601- )AT190,ST191..UKP..LHD

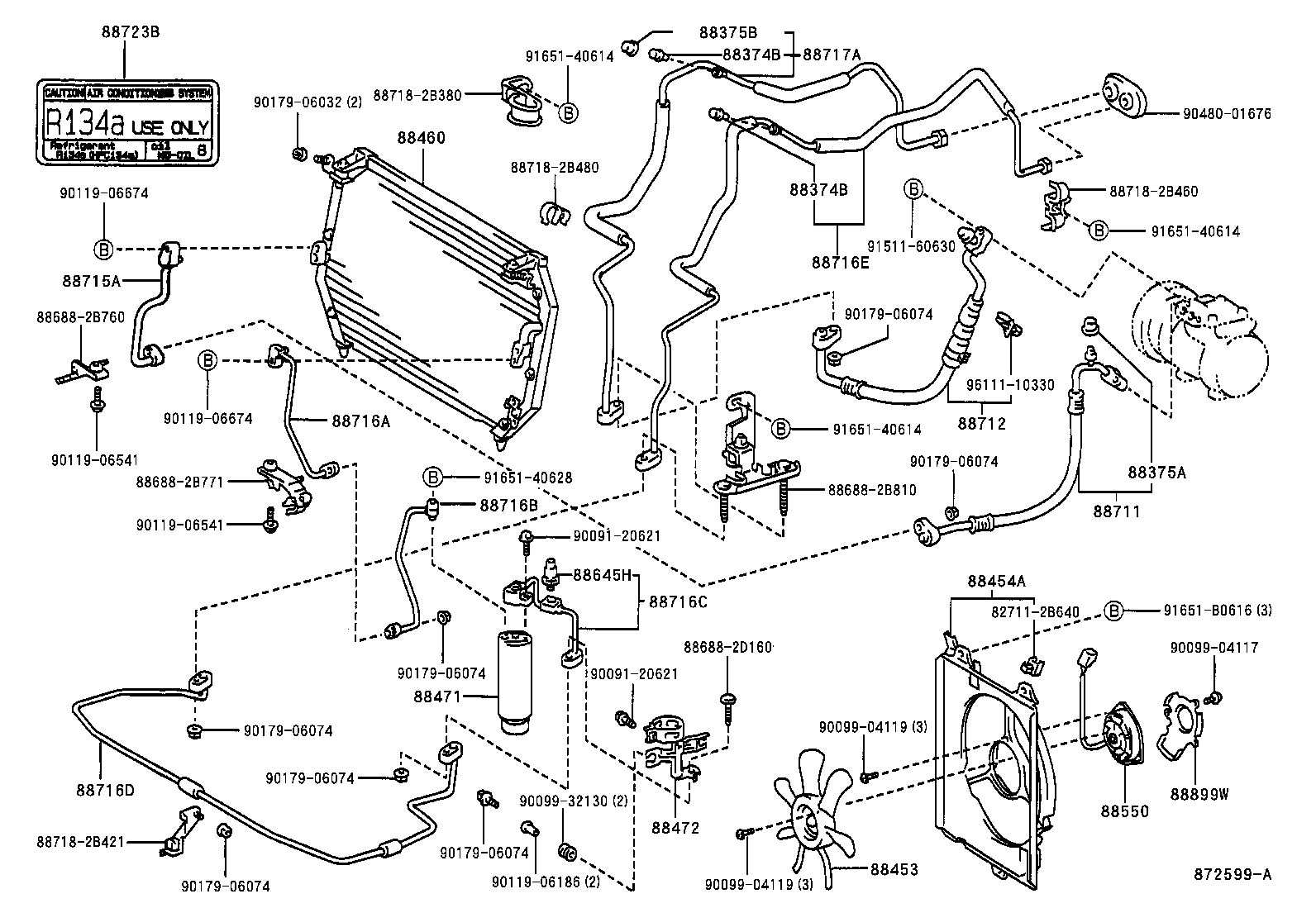

Click highlighted areas on diagram

MAKER OPTION

diagram 827112B640 88374B 88374B 88375A 88375B 88453 88454A 88460 88471 88472 88550 88645H 886882B760 886882B771 886882B810 886882D160 88711 88712 88715A 88716A 88716B 88716C 88716D 88716E 88717A 887182B380 887182B421 887182B460 887182B480 88723B 88899W 9009120621 9009120621 9009904117 9009904119 9009904119 9009932130 9011906186 9011906541 9011906541 9011906674 9011906674 9017906032 9017906074 9017906074 9017906074 9017906074 9017906074 9017906074 9017906074 9048001676 9151160630 9165140614 9165140614 9165140614 9165140628 91651B0616 9611110330
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280

ST191..UKP;AT190..UKP..LHD

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-20080

AT190,ST191..UKP

 1
88454A - SHROUD, FAN
88454-20020

AT190,ST191..UKP

 1
88460 - CONDENSER ASSY, COOLER
88460-20370

AT190,ST191..UKP

DEALER OPITON

 1
88460-05010

AT190,ST191..UKP

W(AIR CONDITIONER)

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT190,CT190,ST191..UKP

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20150

AT190,CT190,ST191..UKP..LHD

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-46030

AT190,ST191..UKP

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AT190,CT190,ST191..UKP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20870

ST191..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B260

ST191..UKP..LHD

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

AT190,CT190,ST191..UKP

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

AT190,CT190,ST191..UKP

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D151

ST191..UKP;AT190,CT190..UKP..LHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D160

AT190,CT190,ST191..UKP..LHD

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2D132

AT190,CT190,ST191..UKP..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D440

ST191..UKP..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B530

ST191..UKP..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

AT190,CT190,ST191..UKP

 1
88899W - SUPPORT SUB-ASSY, B
88899-20270

AT190,ST191..UKP

 1
Common parts
82711-2B640
88688-2B760
88688-2B771
88688-2B810
88688-2D160
88718-2B380
88718-2B421
88718-2B460
88718-2B480
90091-20621
90099-04117
90099-04119
90099-32130
90119-06186
90119-06541
90119-06674
90179-06032
90179-06074
90480-01676
91511-60630
91651-40614
91651-40628
91651-B0616
96111-10330
