ST191L-BEMNK (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

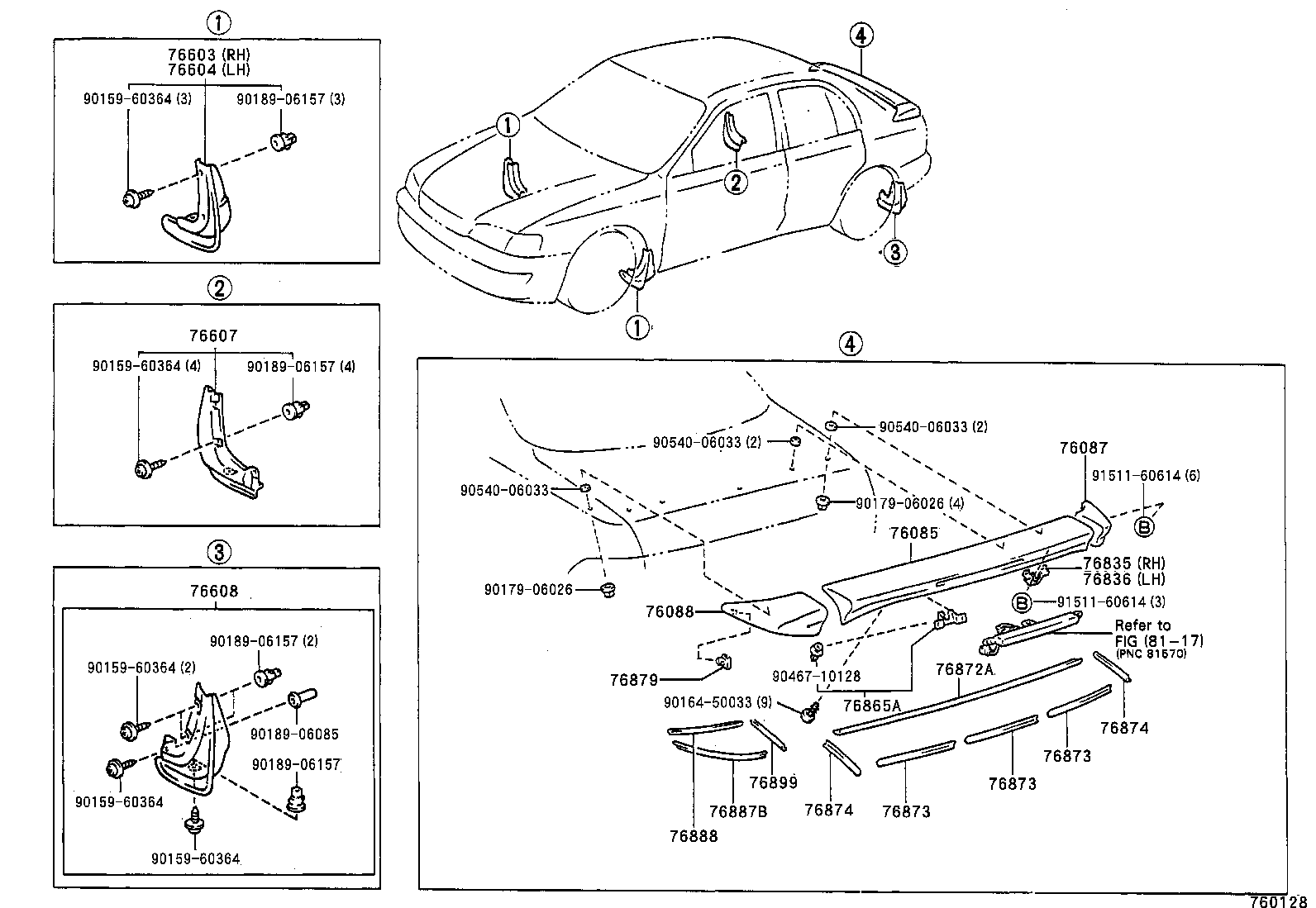

Click highlighted areas on diagram

diagram 76085 76087 76088 76603 76604 76607 76608 76835 76836 76865A 76872A 76873 76873 76873 76874 76874 76879 76887B 76888 76899 9015960364 9015960364 9015960364 9015960364 9015960364 9016450033 9017906026 9017906026 9018906085 9018906157 9018906157 9018906157 9018906157 9046710128 9054006033 9054006033 9054006033 9151160614 9151160614
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-05901

AT190,ST191..UKP

 1
76087 - SPOILER SUB-ASSY, REAR NO.1
76087-05900

AT190,ST191..UKP

 1
76088 - SPOILER SUB-ASSY, REAR NO.2
76088-05900

AT190,ST191..UKP

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-09120

AT190,CT190,ST191..UKP

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-09120

AT190,CT190,ST191..UKP

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-09130

AT190,CT190,ST191..UKP

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-09130

AT190,CT190,ST191..UKP

 1
76835 - RETAINER, REAR SPOILER SIDE, NO.1
76835-20030

AT190,ST191..UKP

 1
76836 - RETAINER, REAR SPOILER SIDE, NO.2
76836-20030

AT190,ST191..UKP

 1
76865A - RETAINER, SIDE MUDGUARD
76865-20100

AT190,ST191..UKP

 1
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-20130

AT190,ST191..UKP

 1
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-20110

AT190,ST191..UKP

 3
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-20110

AT190,ST191..UKP

 3
76873 - PROTECTOR, REAR SPOILER, NO.2
76873-20110

AT190,ST191..UKP

 3
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-20100

AT190,ST191..UKP

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-20100

AT190,ST191..UKP

 2
76879 - CLIP, REAR SPOILER, NO.1
76879-20040

AT190,ST191..UKP

 2
76887B - PROTECTOR, REAR SPOILER SIDE, NO.2
76887-20070

AT190,ST191..UKP

 2
76888 - PROTECTOR, REAR SPOILER SIDE, NO.3
76888-20070

AT190,ST191..UKP

 2
76899 - PROTECTOR, REAR SPOILER, SIDE NO.6
76899-20050

AT190,ST191..UKP

 2
Common parts
90159-60364
90164-50033
90179-06026
90189-06085
90189-06157
90467-10128
90540-06033
91511-60614
