ST191L-BEMNK (1996)
Toyota Corona Sed (Ukp)
Production
Jan 1996
-
Oct 1997
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601-9710)UKP..LHD

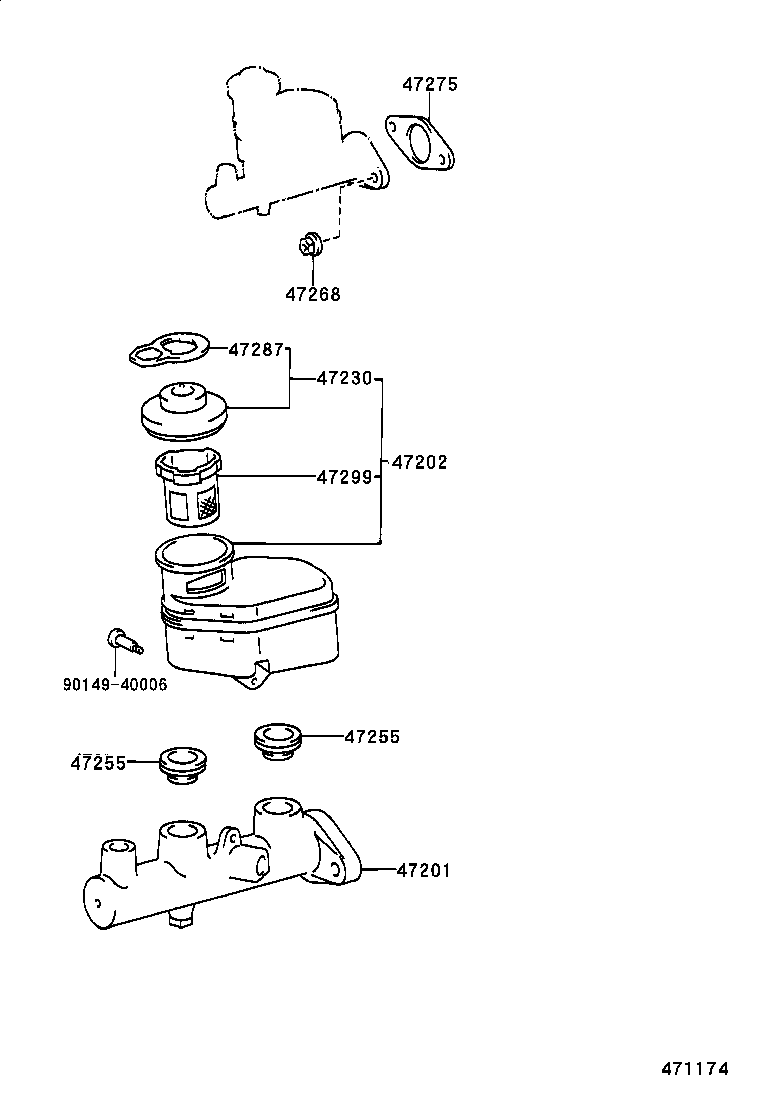

Click highlighted areas on diagram
TEVES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-05020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-20200 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 47202-20510 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
AT190,CT190,ST191..UKP |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AT190,CT190,ST191..UKP |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AT190,CT190,ST191..UKP |
2 | ||
| 47268 - RING, MASTER CYLINDER BOOT RETAINING | ||||
| 47268-05010 |
AT190,CT190,ST191..UKP |
2 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 47287 - LABEL, BRAKE FLUID INFORMATION | ||||
| 47287-20010 |
AT190,CT190,ST191..UKP |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-24010 |
AT190,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
