ST191L-BEMNK (1996)
Toyota Corona Sed (Ukp)
Production
Jan 1996
-
Oct 1997
Engine
3SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )ST191..UKP..LHD

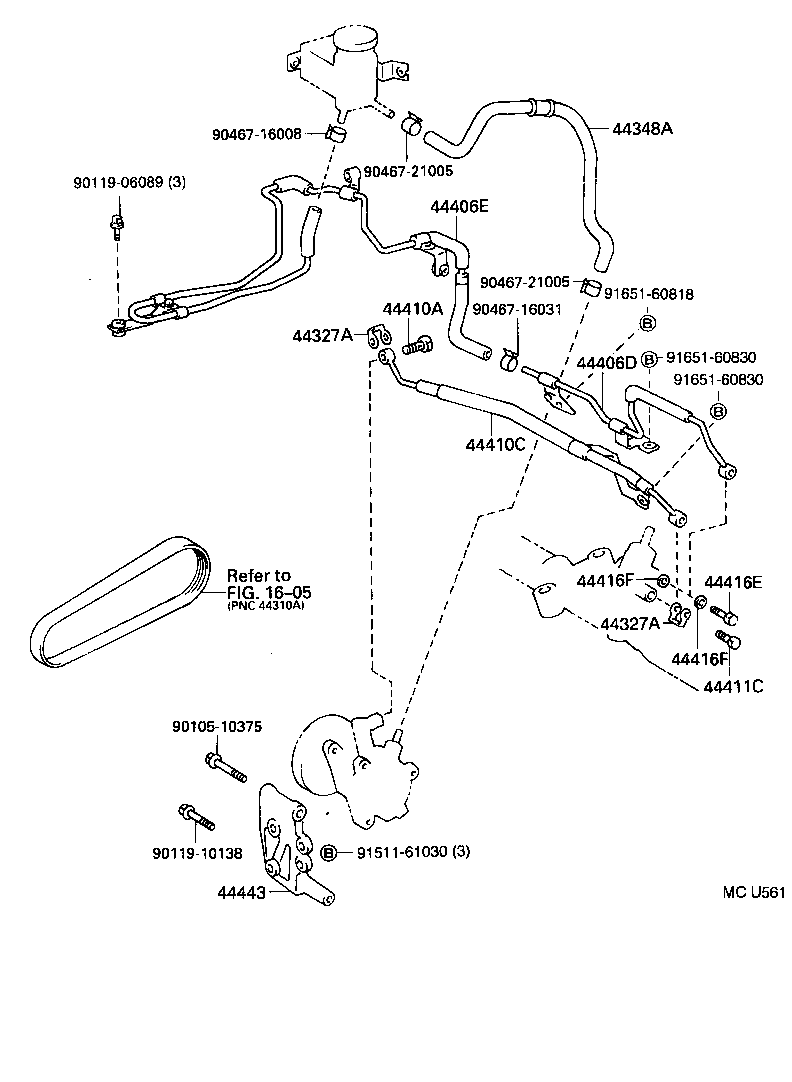

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT190,CT190,ST191..UKP..LHD |
2 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT190,CT190,ST191..UKP..LHD |
2 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-20460 |
ST191..UKP..LHD |
1 | ||
| 44406D - TUBE SUB-ASSY, RETURN, NO.1 | ||||
| 44406-20660 |
ST191..UKP..LHD |
1 | ||
| 44406E - TUBE SUB-ASSY, RETURN, NO.2 | ||||
| 44406-20650 |
ST191..UKP..LHD |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AT190,CT190,ST191..UKP |
1 | ||
| 44410C - TUBE ASSY, PRESSURE FEED, NO.1 | ||||
| 44410-2B090 |
ST191..UKP..LHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 96341-41603 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-11703 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
AT190,CT190,ST191..UKP..LHD |
2 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
AT190,CT190,ST191..UKP..LHD |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-33020 |
ST191..UKP |
1 | ||
| Common parts | ||||
| 90105-10375 | ||||
| 90119-06089 | ||||
| 90119-10138 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91511-61030 | ||||
| 91651-60818 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 1605 | ||||
