CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )CT190..UKP

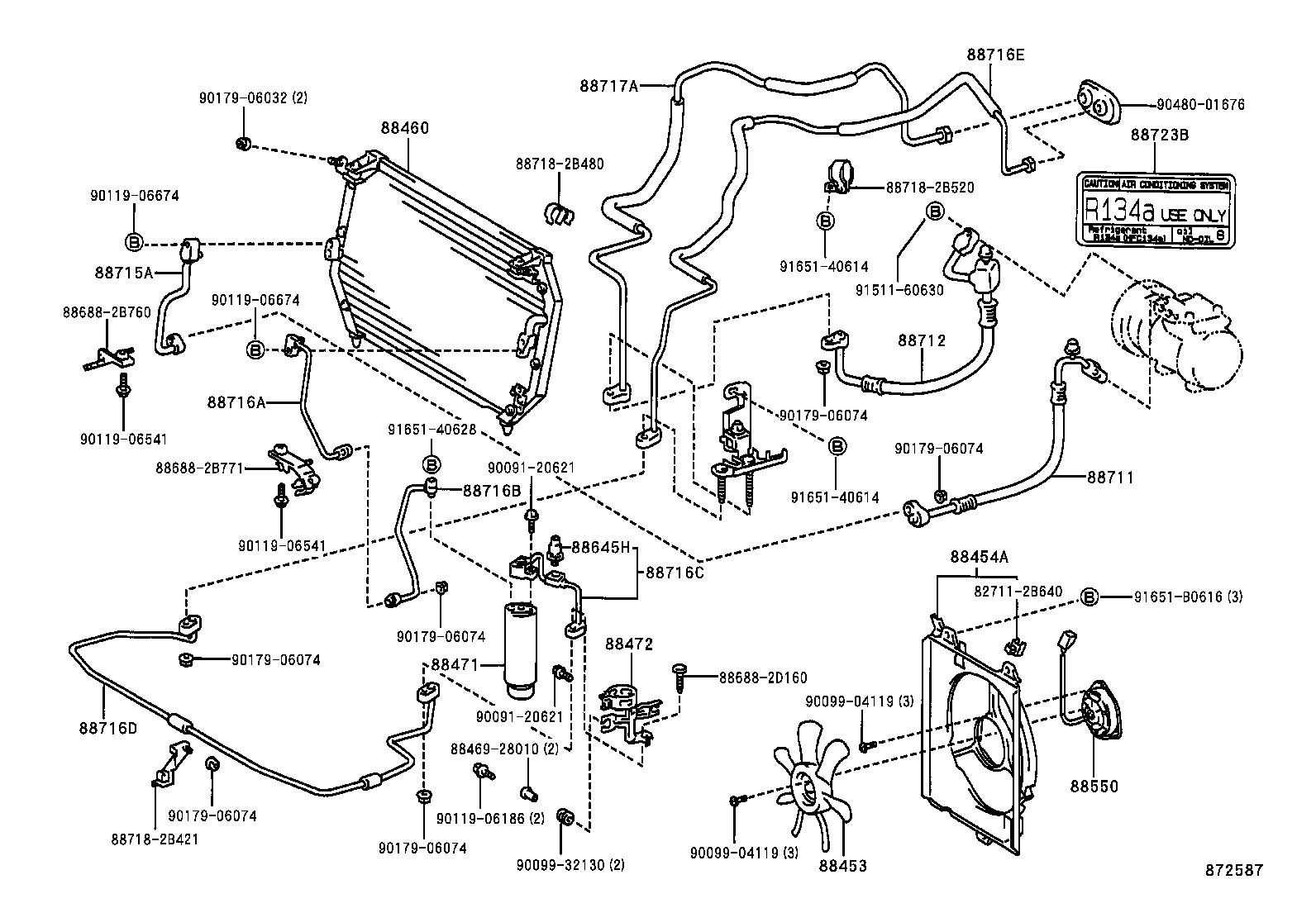

Click highlighted areas on diagram

MAKER OPTION

diagram 827112B640 88453 88454A 88460 8846928010 88471 88472 88550 88645H 886882B760 886882B771 886882D160 88711 88712 88715A 88716A 88716B 88716C 88716D 88716E 88717A 887182B421 887182B480 887182B520 88723B 9009120621 9009120621 9009904119 9009904119 9009932130 9011906186 9011906541 9011906541 9011906674 9011906674 9017906032 9017906074 9017906074 9017906074 9017906074 9017906074 9017906074 9048001676 9151160630 9165140614 9165140614 9165140628 91651B0616
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-20090

CT190..UKP

 1
88454A - SHROUD, FAN
88454-20122

CT190..UKP

 1
88460 - CONDENSER ASSY, COOLER
88460-05020

CT190..UKP

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AT190,CT190,ST191..UKP

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-20150

AT190,CT190,ST191..UKP..LHD

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64070

CT190..UKP

 1
88645H - SWITCH, PRESSURE NO.1
88645-20050

AT190,CT190,ST191..UKP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-2B310

CT190..UKP

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B860

CT190..UKP

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20120

AT190,CT190,ST191..UKP

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2D140

AT190,CT190,ST191..UKP

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2D151

ST191..UKP;AT190,CT190..UKP..LHD

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2D160

AT190,CT190,ST191..UKP..LHD

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2D132

AT190,CT190,ST191..UKP..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2D460

CT190..UKP

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B550

CT190..UKP

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20040

AT190,CT190,ST191..UKP

 1
Common parts
82711-2B640
88469-28010
88688-2B760
88688-2B771
88688-2D160
88718-2B421
88718-2B480
88718-2B520
90091-20621
90099-04119
90099-32130
90119-06186
90119-06541
90119-06674
90179-06032
90179-06074
90480-01676
91511-60630
91651-40614
91651-40628
91651-B0616
