CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9601- )UKP

Click highlighted areas on diagram

diagram 9009914044 9009914045 9009914046 9009914056 9009914067 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

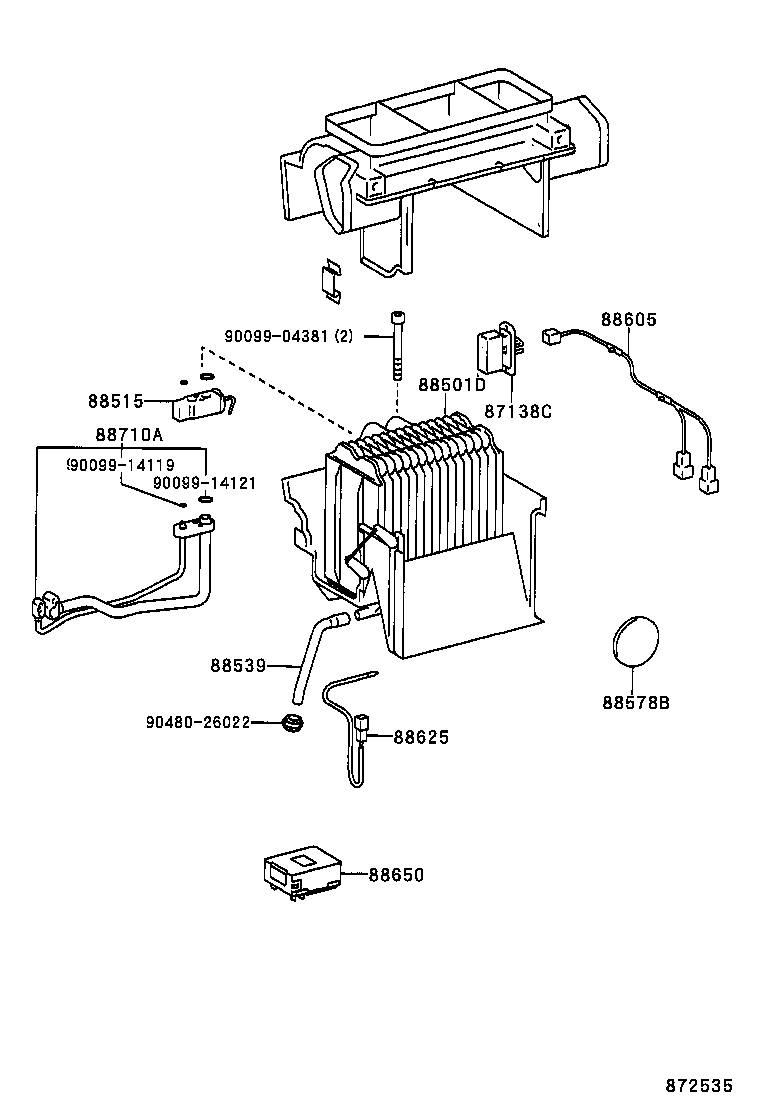

ILLUST NO. 1 OF 2(9601- )UKP

Click highlighted areas on diagram

diagram 87138C 88501D 88515 88539 88578B 88605 88625 88650 88710A 9009904381 9009914119 9009914121 9048026022
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-20310

AT190,CT190,ST191..UKP

 1
88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2
88501-05010

AT190,CT190,ST191..UKP

 1
88515 - VALVE, COOLER EXPANSION
88515-20100

AT190,CT190,ST191..UKP

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20280

AT190,CT190,ST191..UKP..LHD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-2D230

AT190,CT190,ST191..UKP..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20400

AT190,CT190,ST191..UKP..LHD

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-2B390

CT190..UKP

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-20590

AT190,CT190,ST191..UKP..LHD

 1
Common parts
90099-04381
90099-14119
90099-14121
90480-26022
