CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

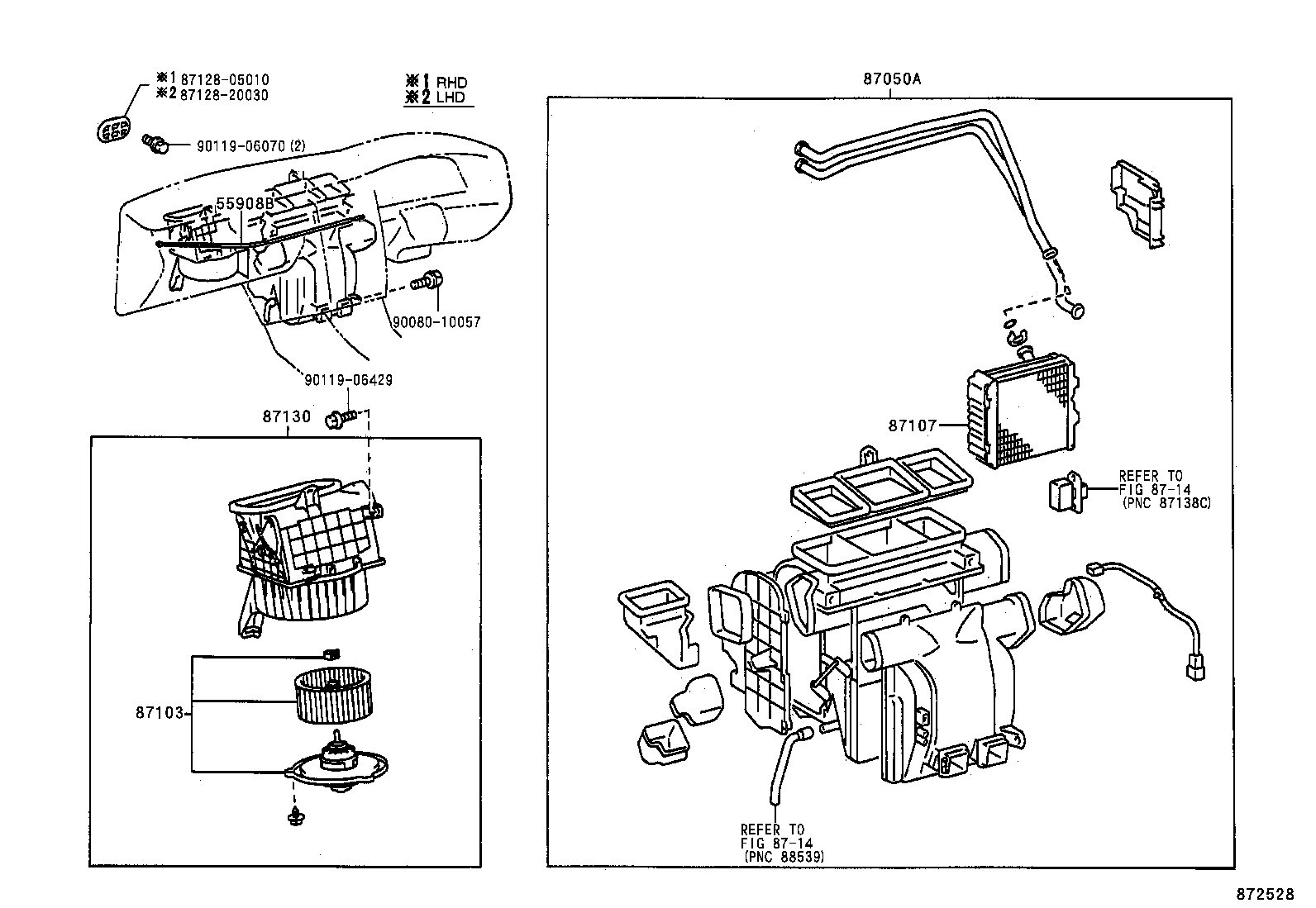

Click highlighted areas on diagram

diagram 55908B 87050A 87103 87107 8712805010 8712820030 87130 8714 8714 9008010057 9011906070 9011906429
Part # Description Qty Price
55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20170

AT190,CT190,ST191..UKP

 1
87050A - RADIATOR ASSY, AIR CONDITIONER
87050-05110

CT190..UKP

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-05020

AT190,CT190,ST191..UKP..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-05040

AT190,CT190,ST191..UKP..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-05040

AT190,CT190,ST191..UKP..LHD

 1
Common parts
87128-05010
87128-20030
90080-10057
90119-06070
90119-06429
Linked diagrams
8714

(9601- )UKP

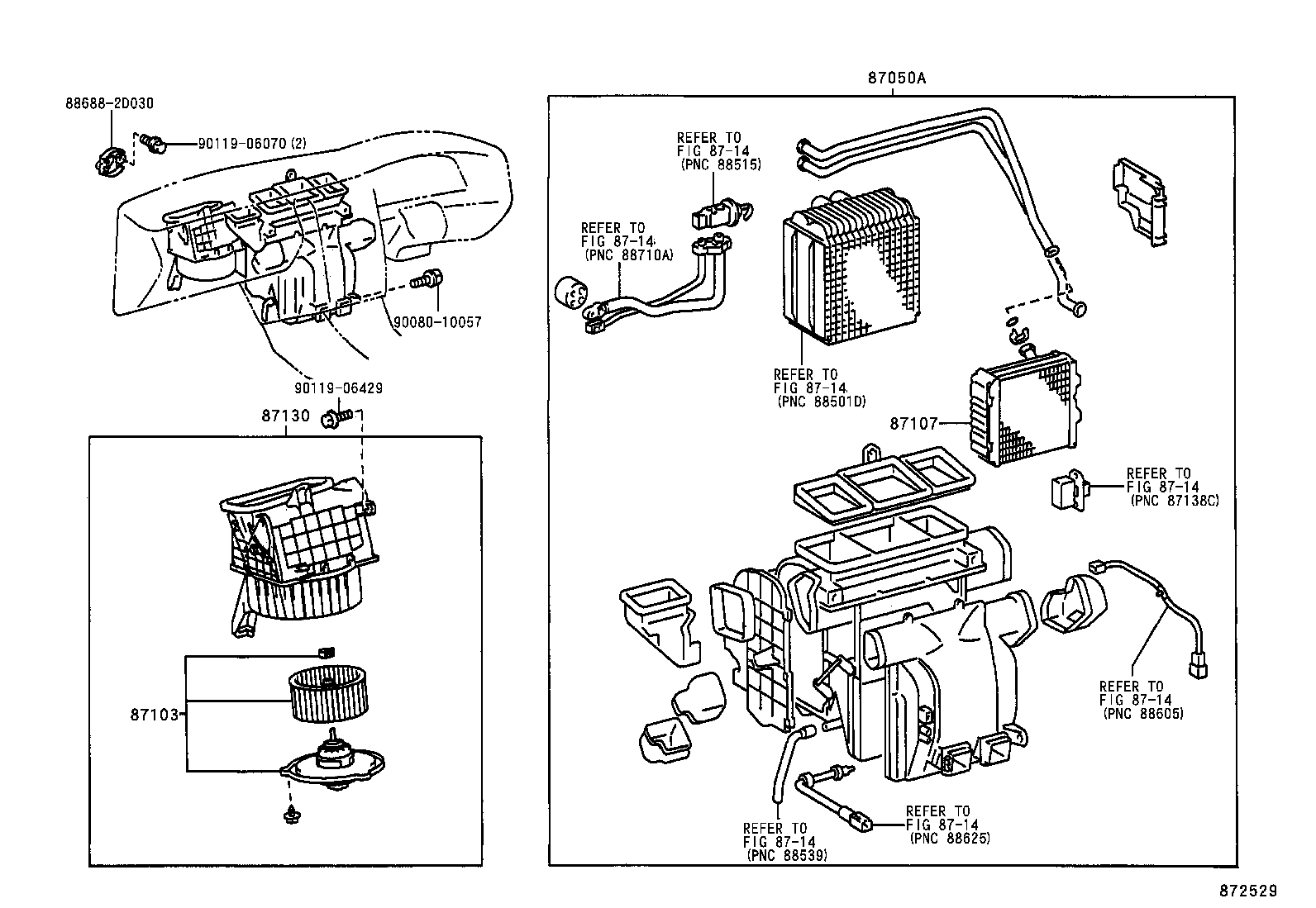

Click highlighted areas on diagram

W(AIR CONDITIONER)

diagram 87050A 87103 87107 87130 8714 8714 8714 8714 8714 8714 8714 886882D030 9008010057 9011906070 9011906429
Part # Description Qty Price
87050A - RADIATOR ASSY, AIR CONDITIONER
87050-05110

CT190..UKP

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-05020

AT190,CT190,ST191..UKP..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-05040

AT190,CT190,ST191..UKP..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-05040

AT190,CT190,ST191..UKP..LHD

 1
Common parts
88688-2D030
90080-10057
90119-06070
90119-06429
Linked diagrams
8714
