CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

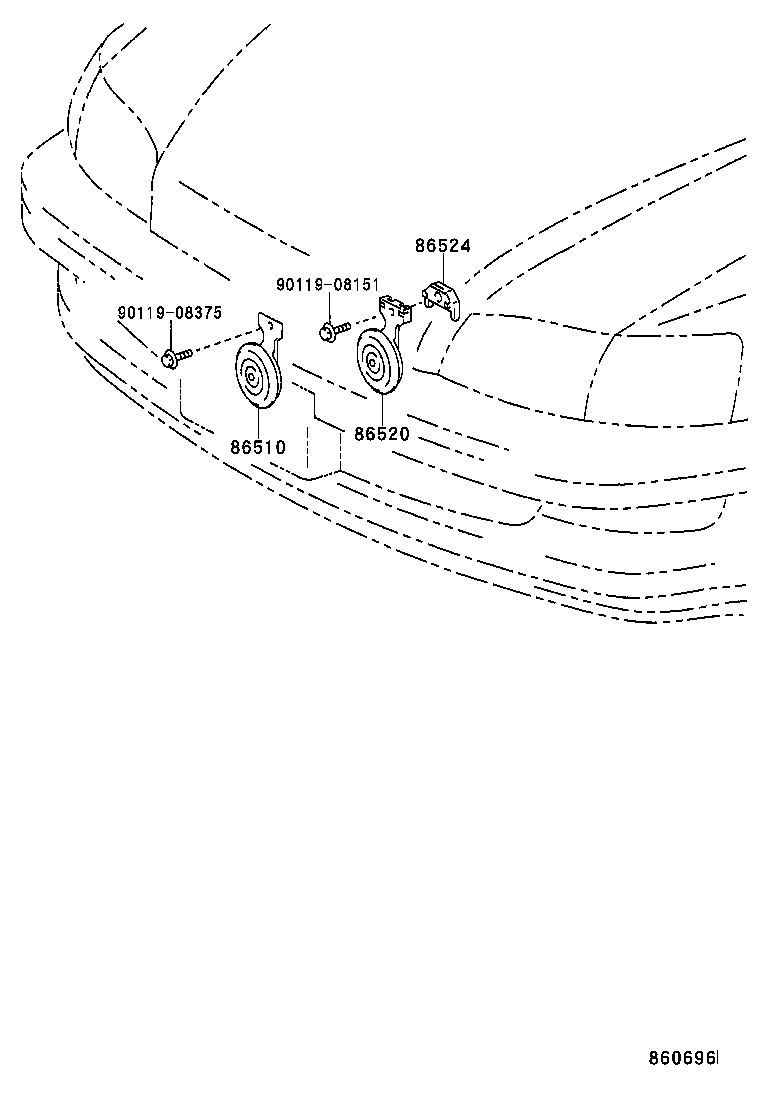

Click highlighted areas on diagram

diagram 86510 86520 86524 9011908151 9011908375
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-05010

AT190,CT190,ST191..UKP

HELLA

 1
86510-20220

AT190,CT190,ST191..UKP

NIPPONDENSO

 1
86520 - HORN ASSY, LOW PITCHED
86520-05010

AT190,CT190,ST191..UKP

HELLA

 1
86520-20230

AT190,CT190,ST191..UKP

NIPPONDENSO

 1
86524 - SPACER, HORN
86524-32020

AT190,CT190,ST191..UKP

 1
Common parts
90119-08151
90119-08375
