CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

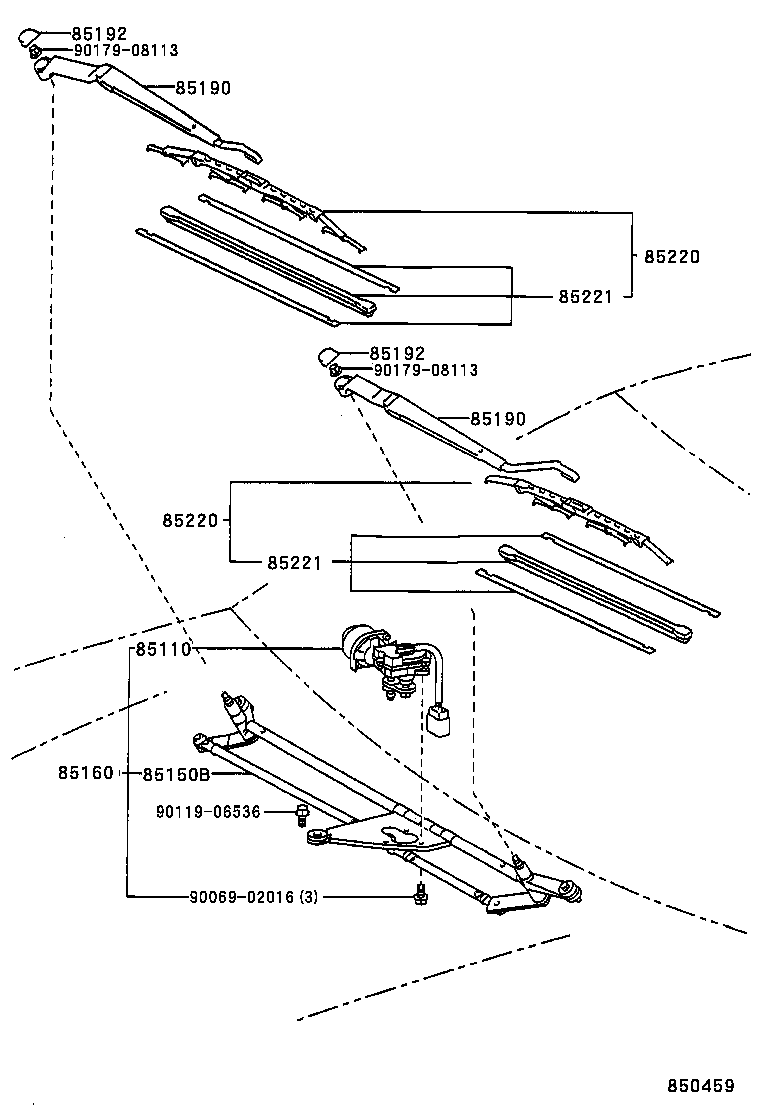

Click highlighted areas on diagram

diagram 85110 85150B 85160 85190 85190 85192 85192 85220 85220 85221 85221 9006902016 9011906536 9017908113 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-05021

AT190,CT190,ST191..UKP..LHD

 1
85150B - LINK ASSY, WIPER
85150-05020

AT190,CT190,ST191..UKP..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85010-05021

AT190,CT190,ST191..UKP..LHD

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85211-05020

AT190,CT190,ST191..UKP..LHD

RH

 1
85221-05020

AT190,CT190,ST191..UKP..LHD

LH

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85211-05020

AT190,CT190,ST191..UKP..LHD

RH

 1
85221-05020

AT190,CT190,ST191..UKP..LHD

LH

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

AT190,CT190,ST191..UKP

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

AT190,CT190,ST191..UKP

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85222-05020

AT190,CT190,ST191..UKP..LHD

LH

 1
85222-05010

AT190,CT190,ST191..UKP..LHD

RH

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85222-05020

AT190,CT190,ST191..UKP..LHD

LH

 1
85222-05010

AT190,CT190,ST191..UKP..LHD

RH

 1
85221 - BLADE, WINDSHIELD WIPER
85223-05010

AT190,CT190,ST191..UKP

PASSENGER SIDE

 1
85213-05010

AT190,CT190,ST191..UKP

DRIVER SIDE

 1
85221 - BLADE, WINDSHIELD WIPER
85223-05010

AT190,CT190,ST191..UKP

PASSENGER SIDE

 1
85213-05010

AT190,CT190,ST191..UKP

DRIVER SIDE

 1
Common parts
90069-02016
90119-06536
90179-08113
