CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)
ILLUST NO. 5 OF10(9601- )UKP..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-05550 |
AT190,CT190,ST191..UKP..LHD..MTM |
1 | ||
| 82345 - DIODE | ||||
| 82345-12040 |
AT190,CT190,ST191..UKP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AT190,CT190,ST191..UKP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12040 |
AT190,CT190,ST191..UKP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AT190,CT190,ST191..UKP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20170 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20890 |
AT190,CT190,ST191..UKP |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82817-05010 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| Common parts | ||||
| 82711-2B870 | ||||
| 90119-06390 | ||||
| 90179-06026 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

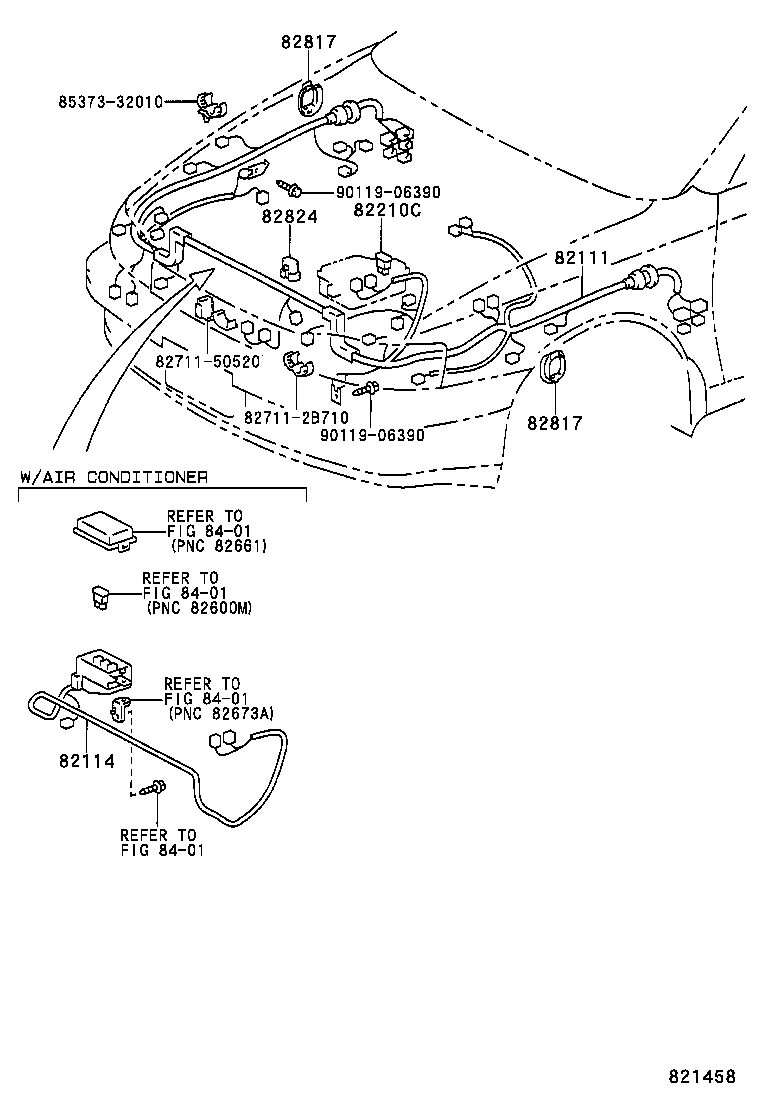

ILLUST NO. 1 OF10(9601- )UKP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-05630 |
CT190..UKP |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
AT190,CT190,ST191..UKP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
CT190..UKP 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08246 |
AT190,CT190,ST191..UKP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08189 |
AT190,CT190..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
AT190,CT190,ST191..UKP FENDER RH |
1 | ||
| 82817-2D090 |
AT190,CT190,ST191..UKP COWL |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
AT190,CT190,ST191..UKP FENDER RH |
1 | ||
| 82817-2D090 |
AT190,CT190,ST191..UKP COWL |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AT190,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 82711-2B710 | ||||
| 82711-50520 | ||||
| 85373-32010 | ||||
| 90119-06390 | ||||
| Linked diagrams | ||||
| 8401 | ||||

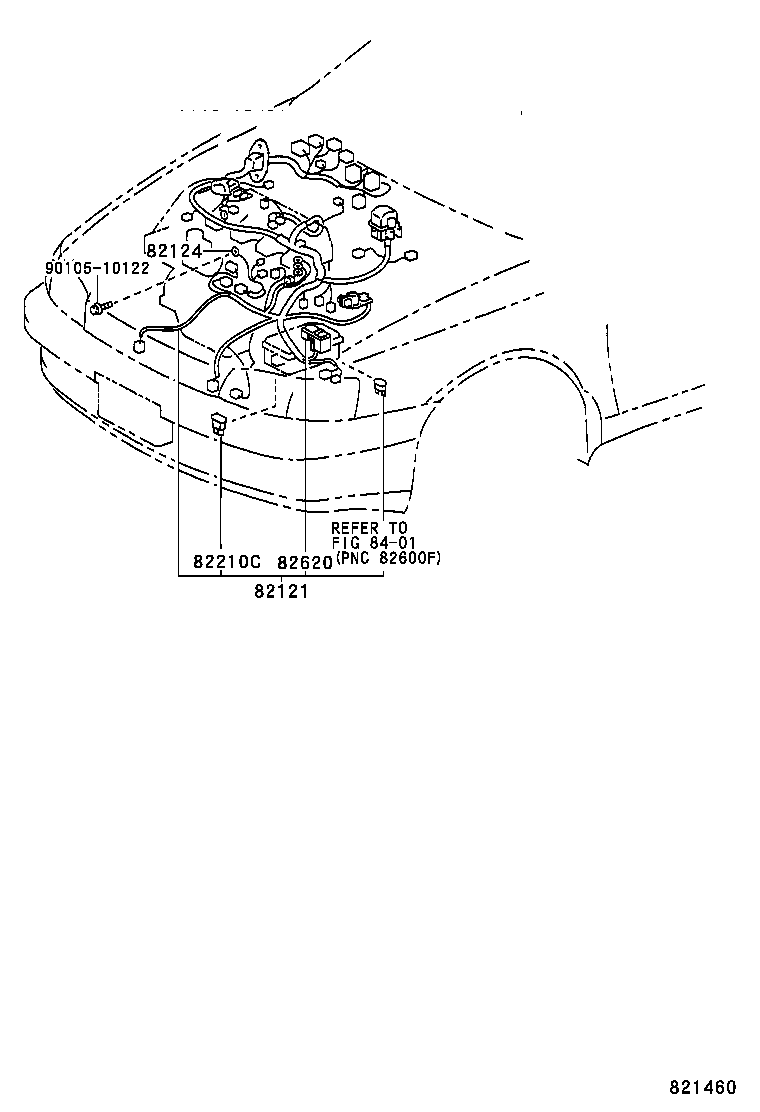

ILLUST NO. 2 OF10(9601- )CT190..UKP
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-05260 |
CT190..UKP |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-20170 |
CT190..UKP |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
AT190,CT190,ST191..UKP 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08203 |
CT190..UKP 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08246 |
AT190,CT190,ST191..UKP 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08189 |
AT190,CT190..UKP 40A,TERM.:FEMALE,GRN |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20160 |
AT190,CT190,ST191..UKP |
1 | ||
| 82620-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 82620-05010 |
ST191..UKP..RHD;AT190,CT190..UKP |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| Linked diagrams | ||||
| 8401 | ||||

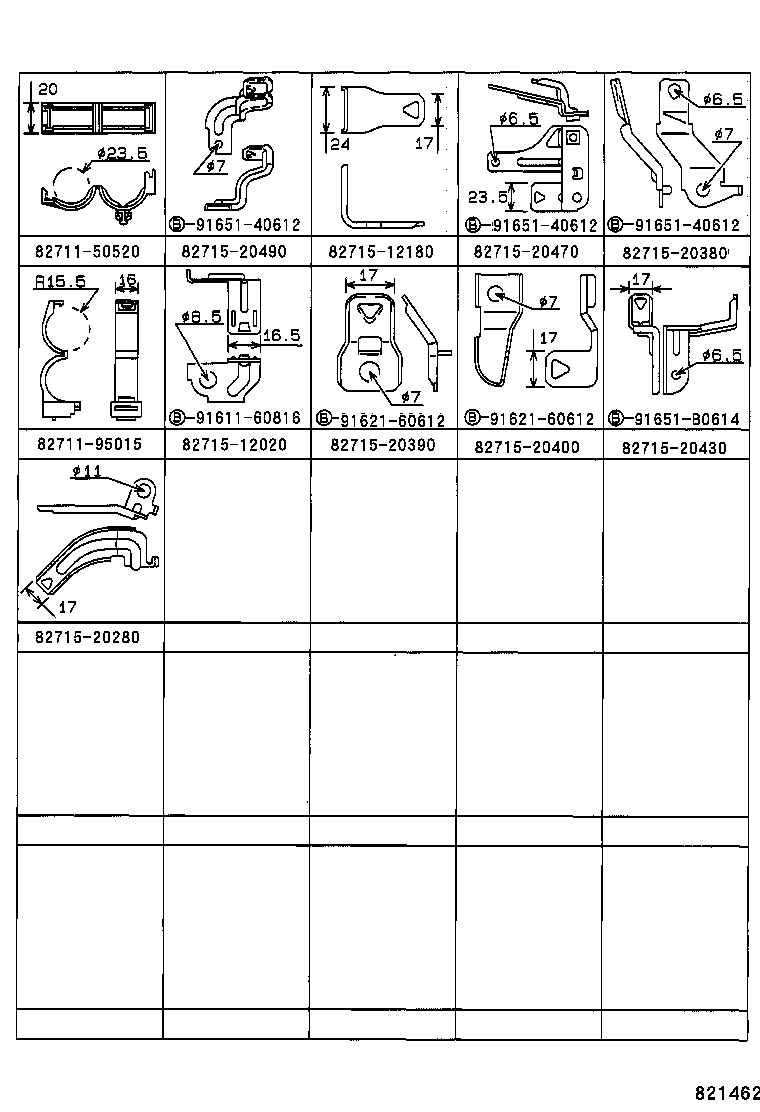

ILLUST NO. 3 OF10(9601- )UKP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-50520 | ||||
| 82711-95015 | ||||
| 82715-12020 | ||||
| 82715-12180 | ||||
| 82715-20280 | ||||
| 82715-20380 | ||||
| 82715-20390 | ||||
| 82715-20400 | ||||
| 82715-20430 | ||||
| 82715-20470 | ||||
| 82715-20490 | ||||
| 91611-60816 | ||||
| 91621-60612 | ||||
| 91651-40612 | ||||
| 91651-B0614 | ||||

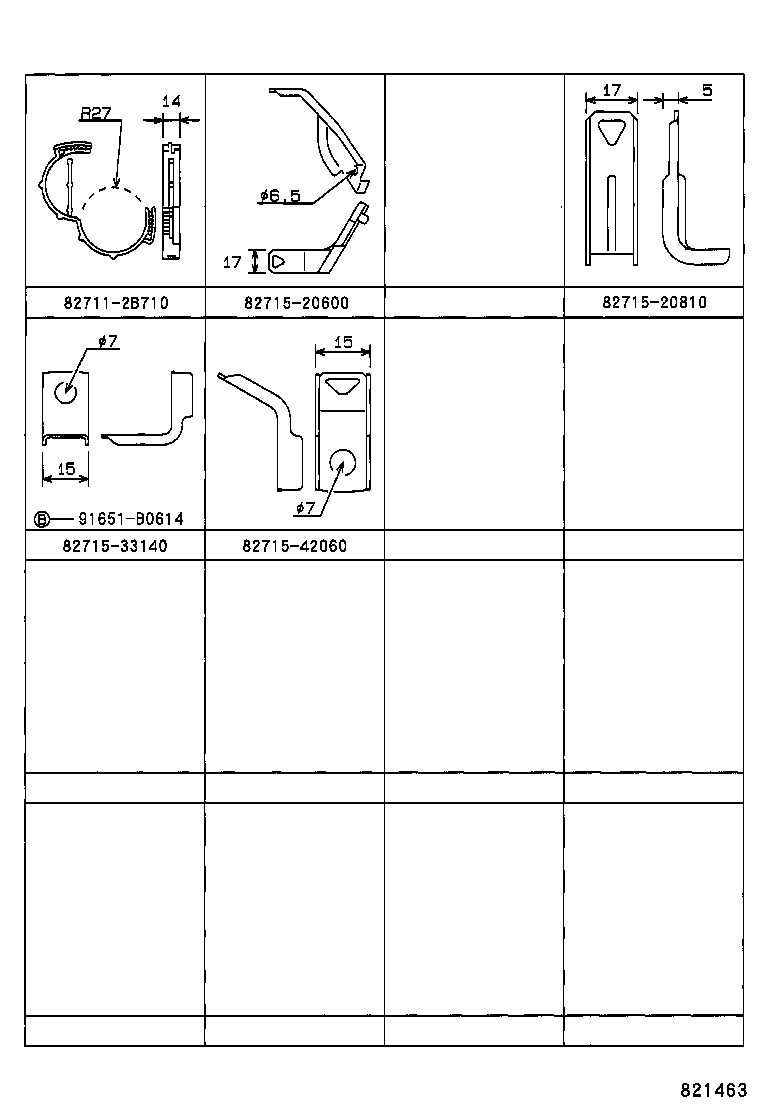

ILLUST NO. 3 OF10(9601- )UKP
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2B710 | ||||
| 82715-20600 | ||||
| 82715-20810 | ||||
| 82715-33140 | ||||
| 82715-42060 | ||||
| 91651-B0614 | ||||

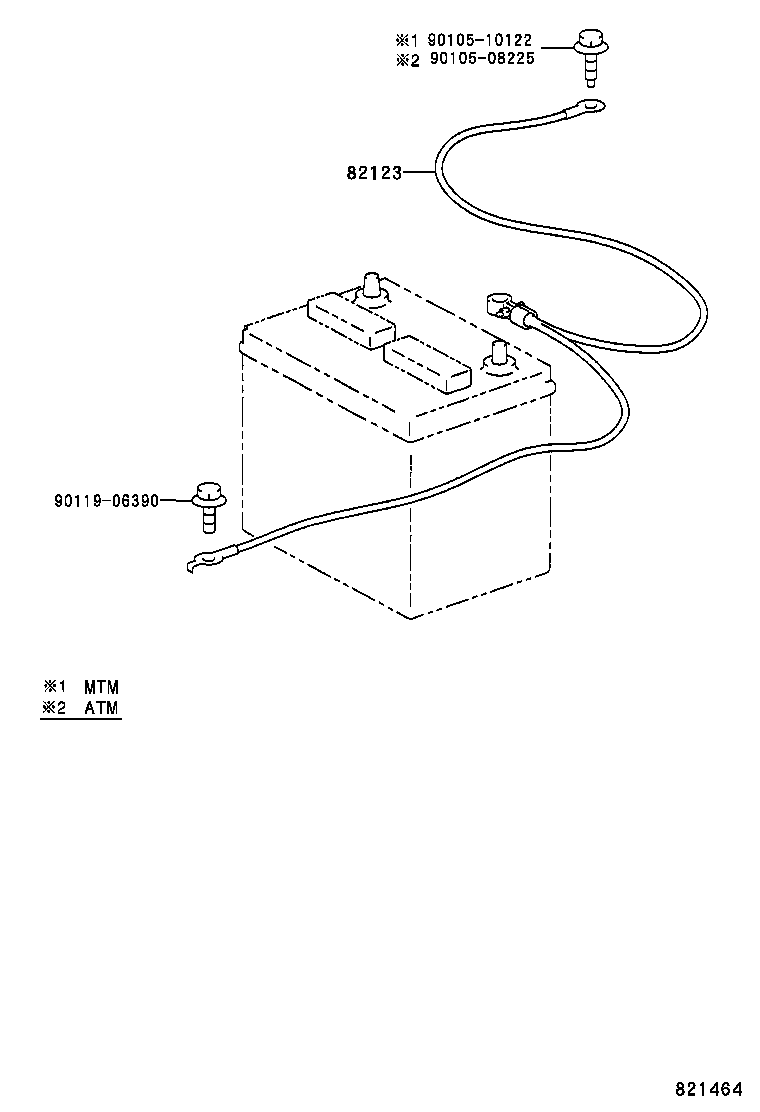

ILLUST NO. 4 OF10(9601- )UKP
BATTERY CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-05030 |
CT190..UKP |
1 | ||
| Common parts | ||||
| 90105-08225 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||

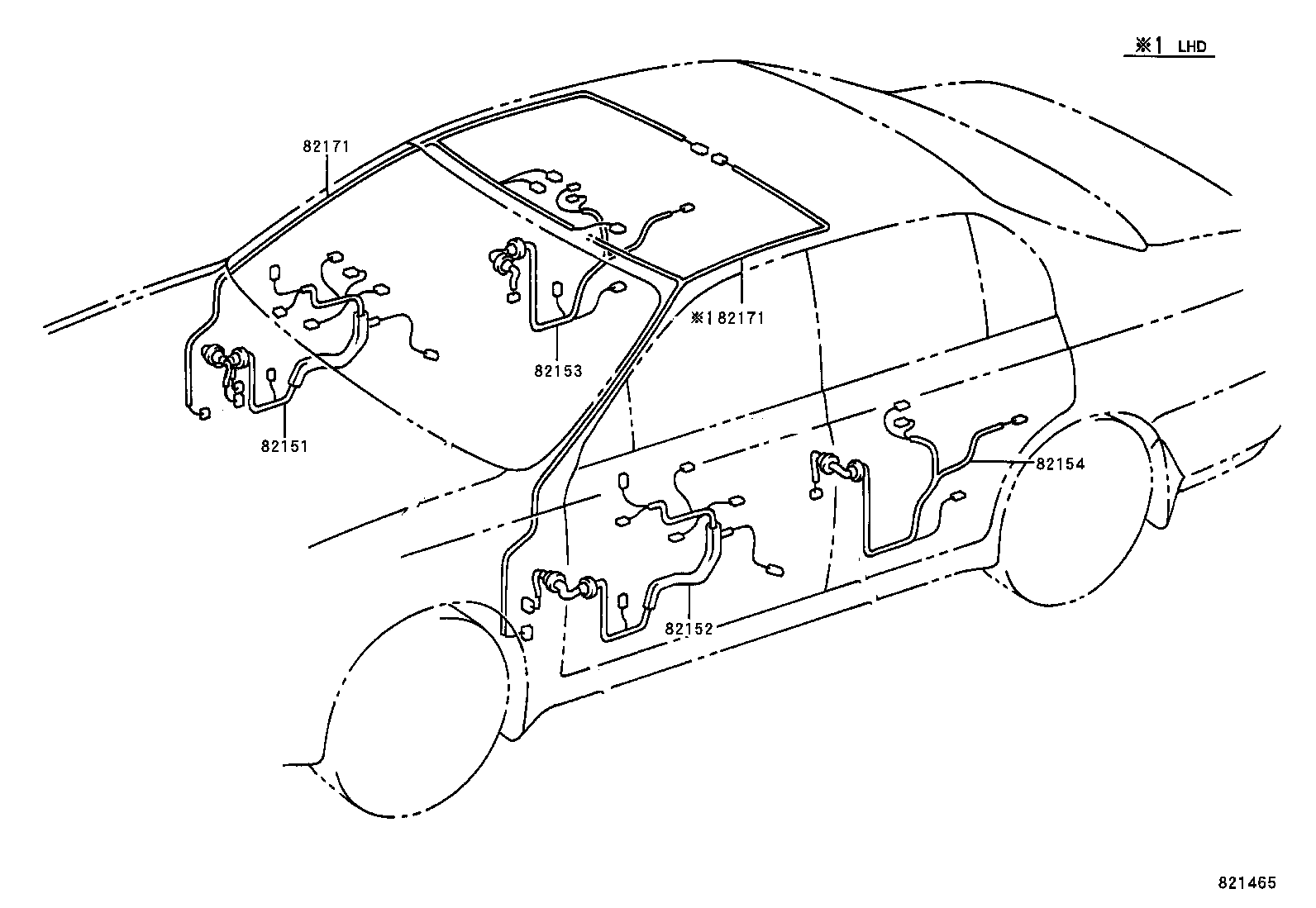

ILLUST NO. 6 OF10(9601- )UKP
DOOR, ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-05280 |
CT190,ST191..UKP..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-05280 |
CT190,ST191..UKP..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-05060 |
CT190,ST191..UKP |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-05060 |
CT190,ST191..UKP |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-05100 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 82171-05120 |
AT190,CT190,ST191..UKP..LHD W(MOON ROOF) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-05100 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 82171-05120 |
AT190,CT190,ST191..UKP..LHD W(MOON ROOF) |
1 | ||

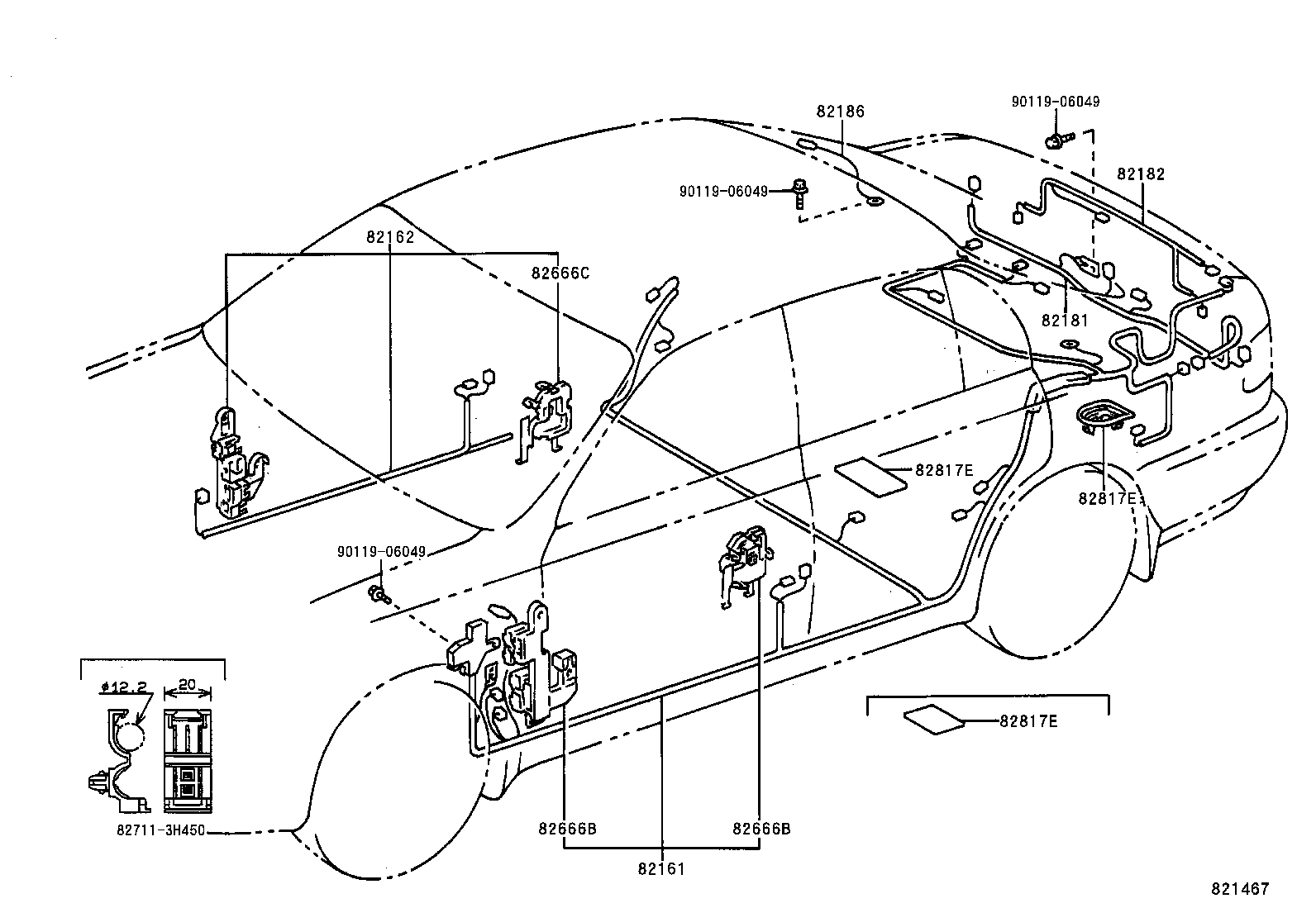

ILLUST NO. 7 OF10(9601- )UKP..LHD
FLOOR, LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-05420 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-05150 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-05040 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-05050 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20100 |
AT190,CT190,ST191..UKP..LHD COWL SIDE |
1 | ||
| 82666-20020 |
AT190,CT190,ST191..UKP..LHD CTR PILLAR |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20100 |
AT190,CT190,ST191..UKP..LHD COWL SIDE |
1 | ||
| 82666-20020 |
AT190,CT190,ST191..UKP..LHD CTR PILLAR |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-20010 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT190,ST191..UKP |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT190,ST191..UKP |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-2B860 |
AT190,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 82711-3H450 | ||||
| 90119-06049 | ||||

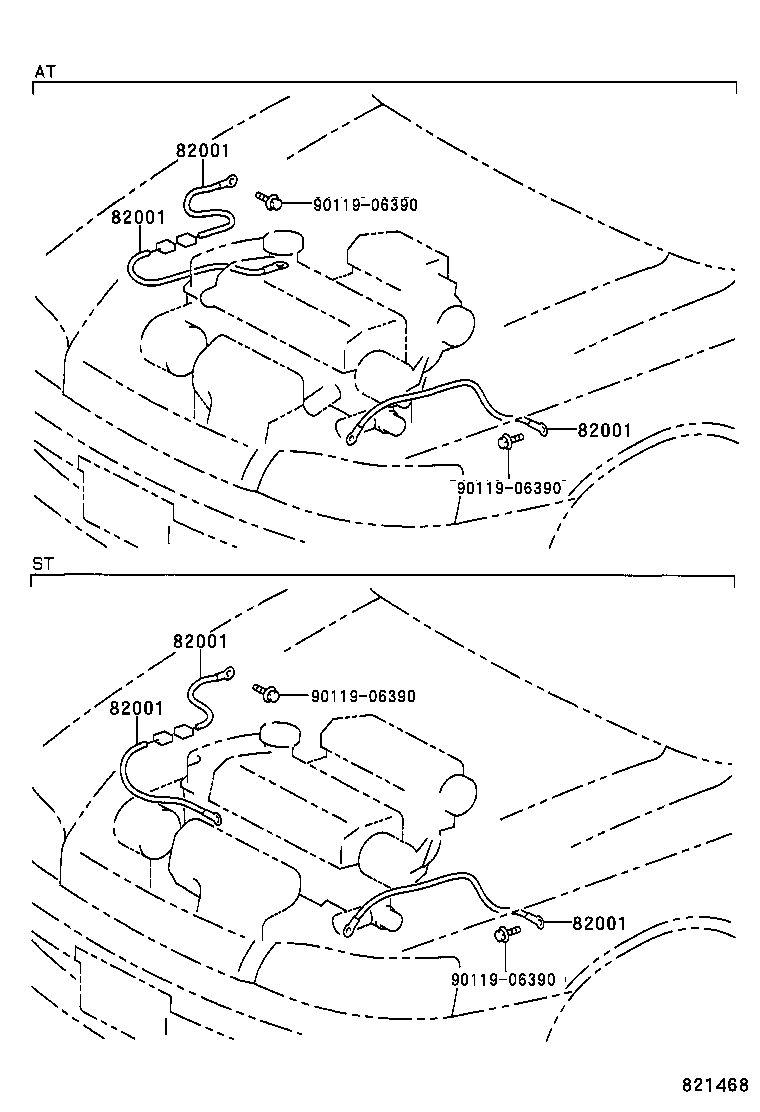

ILLUST NO. 8 OF10(9601- )UKP
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
