CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

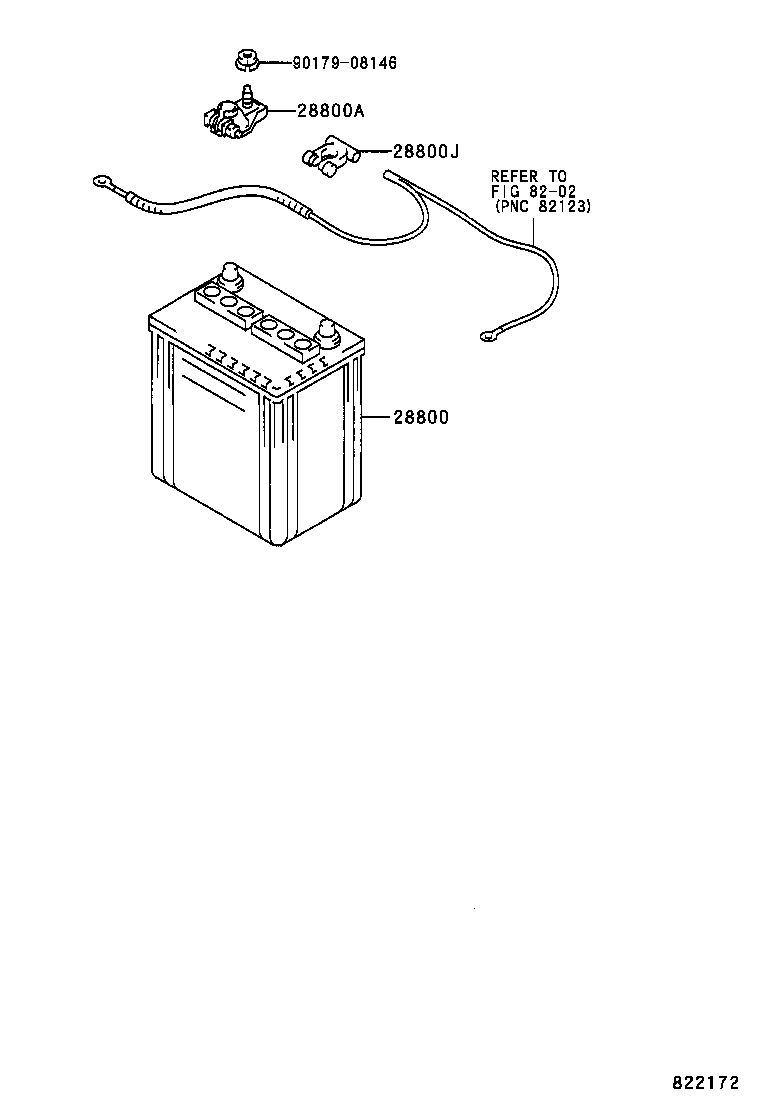

Click highlighted areas on diagram

diagram 28800 28800A 28800J 8202 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-0B010

2CT..CT190..UKP

LN3

 1
28800-0B011

2CT..CT190..UKP

LN3

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05048

4AFE,2CT,3SFE..AT190,CT190,ST191..UKP

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06028

2CT..CT190..UKP

 1
Common parts
90179-08146
Linked diagrams
8202
