CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

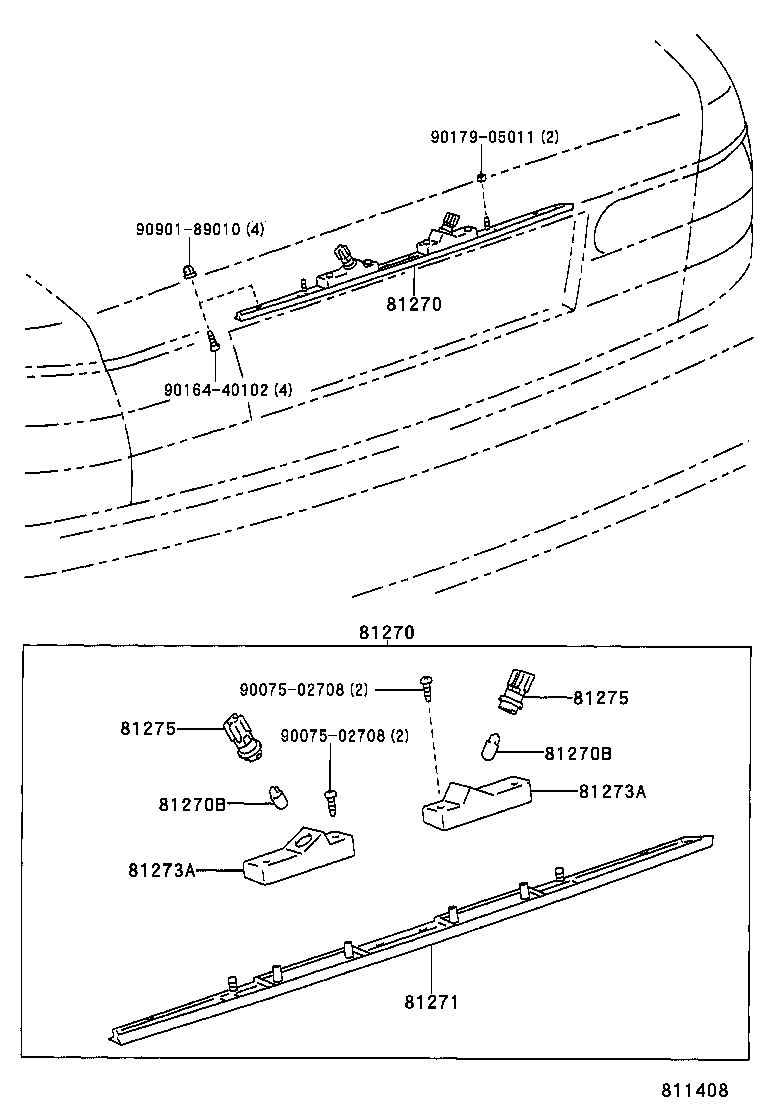

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81273A 81273A 81275 81275 9007502708 9007502708 9016440102 9017905011 9090189010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-05010

AT190,CT190,ST191..UKP

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-05010

AT190,CT190,ST191..UKP

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90080-81030

AT190,CT190,ST191..UKP

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90080-81030

AT190,CT190,ST191..UKP

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-05010

AT190,CT190,ST191..UKP

 1
81273A - BODY, LICENSE PLATE LAMP
81277-20510

AT190,CT190,ST191..UKP

LH

 1
81273-20510

AT190,CT190,ST191..UKP

RH

 1
81273A - BODY, LICENSE PLATE LAMP
81277-20510

AT190,CT190,ST191..UKP

LH

 1
81273-20510

AT190,CT190,ST191..UKP

RH

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99011

AT190,CT190,ST191..UKP

 2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99011

AT190,CT190,ST191..UKP

 2
Common parts
90075-02708
90164-40102
90179-05011
90901-89010
