CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)

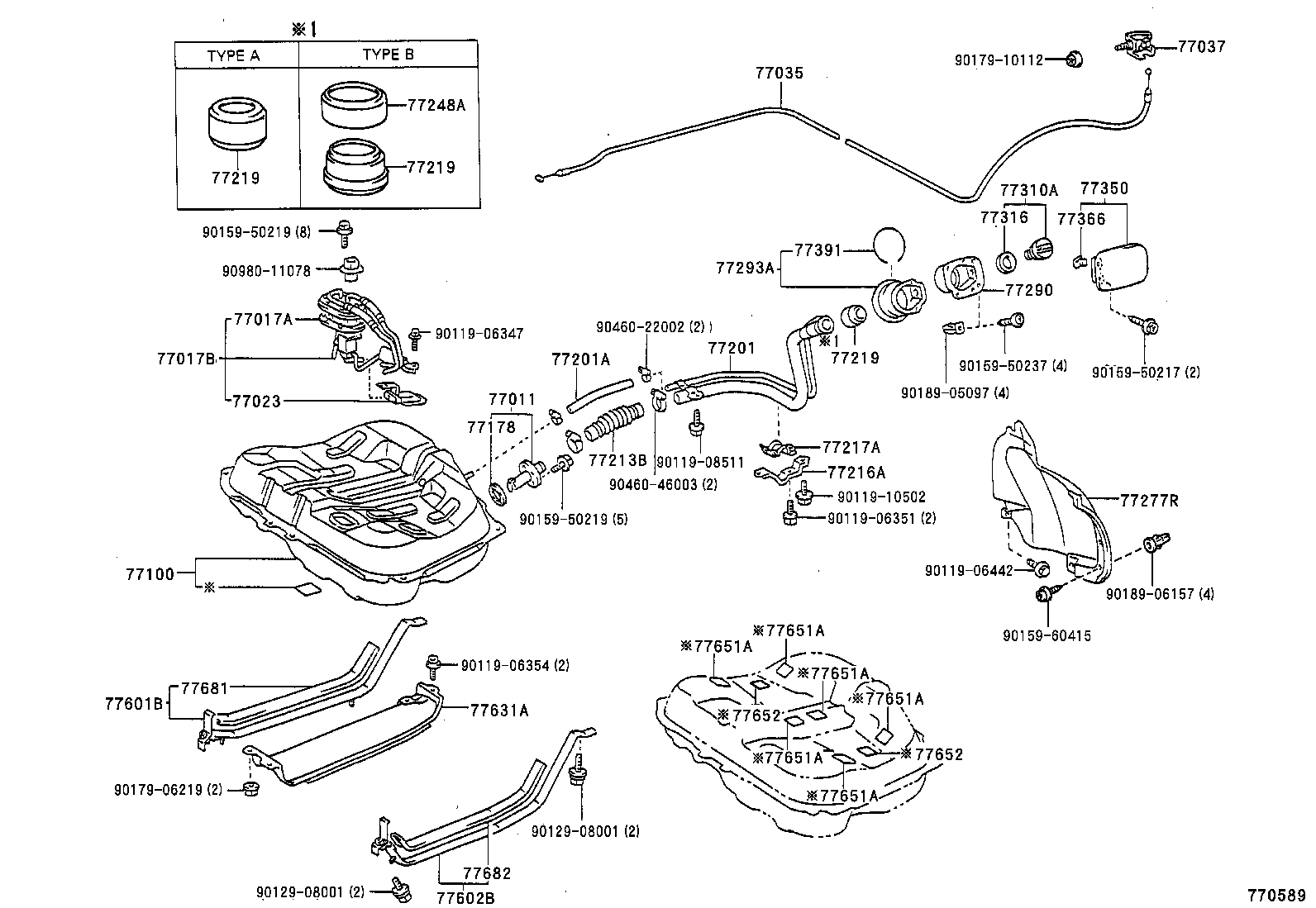

ILLUST NO. 1 OF 2(9601-9710)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10050 |
AT190,CT190,ST191..UKP |
1 | ||
| 77011-05020 |
AT190,CT190,ST191..UKP |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-05010 |
CT190..UKP |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-05010 |
CT190..UKP |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
CT190..UKP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-05020 |
AT190,CT190,ST191..UKP..LHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-20070 |
AT190,CT190,ST191..UKP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-09050 |
AT190,CT190,ST191..UKP |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77178-20030 |
AT190,CT190,ST191..UKP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-05020 |
AT190,CT190,ST191..UKP |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90080-44067 |
AT190,CT190,ST191..UKP L=210 |
1 | ||
| 90445-22024 |
AT190,CT190,ST191..UKP L=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-18010 |
AT190,CT190,ST191..UKP L=230 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-05010 |
AT190,CT190,ST191..UKP TYPE B |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-05010 |
AT190,CT190,ST191..UKP TYPE B |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-05010 |
AT190,CT190,ST191..UKP TYPE B |
2 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
CT190..UKP (J) |
1 | ||
| 77310-05010 |
CT190..UKP (L) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-06010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20220 |
AT190,CT190,ST191..UKP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-35010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,CT190,ST191..UKP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,CT190,ST191..UKP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,CT190,ST191..UKP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,CT190,ST191..UKP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,CT190,ST191..UKP |
6 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT190,CT190,ST191..UKP |
6 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AT190,CT190,ST191..UKP |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
AT190,CT190,ST191..UKP |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
AT190,CT190,ST191..UKP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
AT190,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 90119-06347 | ||||
| 90119-06351 | ||||
| 90119-06354 | ||||
| 90119-06442 | ||||
| 90119-08511 | ||||
| 90119-10502 | ||||
| 90129-08001 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50237 | ||||
| 90159-60415 | ||||
| 90179-06219 | ||||
| 90179-10112 | ||||
| 90189-05097 | ||||
| 90189-06157 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90980-11078 | ||||
ILLUST NO. 2 OF 2(9601-9710)CT190..UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-05060 |
CT190..UKP |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
CT190..UKP *H,L=190,ID=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
CT190..UKP *H,L=150,ID=7.6 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-05070 |
CT190..UKP |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
CT190..UKP *H,L=160 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20120 |
AT190,CT190,ST191..UKP |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20120 |
AT190,CT190,ST191..UKP ROUGH ROAD PACKAGE |
1 | ||
| 77267-20110 |
AT190,CT190,ST191..UKP |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20120 |
AT190,CT190,ST191..UKP ROUGH ROAD PACKAGE |
1 | ||
| 77267-20110 |
AT190,CT190,ST191..UKP |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-20120 |
AT190,CT190,ST191..UKP |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-20010 |
AT190,CT190,ST191..UKP |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
AT190,CT190,ST191..UKP |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
AT190,CT190,ST191..UKP *H,L=220 |
1 | ||
| Common parts | ||||
| 90119-06720 | ||||
| 90119-06746 | ||||
| 90467-13063 | ||||
| 90480-01359 | ||||
| 90480-01606 | ||||
| 90959-01442 | ||||
| 90959-01448 | ||||
| 91651-B0614 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
| 96133-41100 | ||||
