CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

Click highlighted areas on diagram

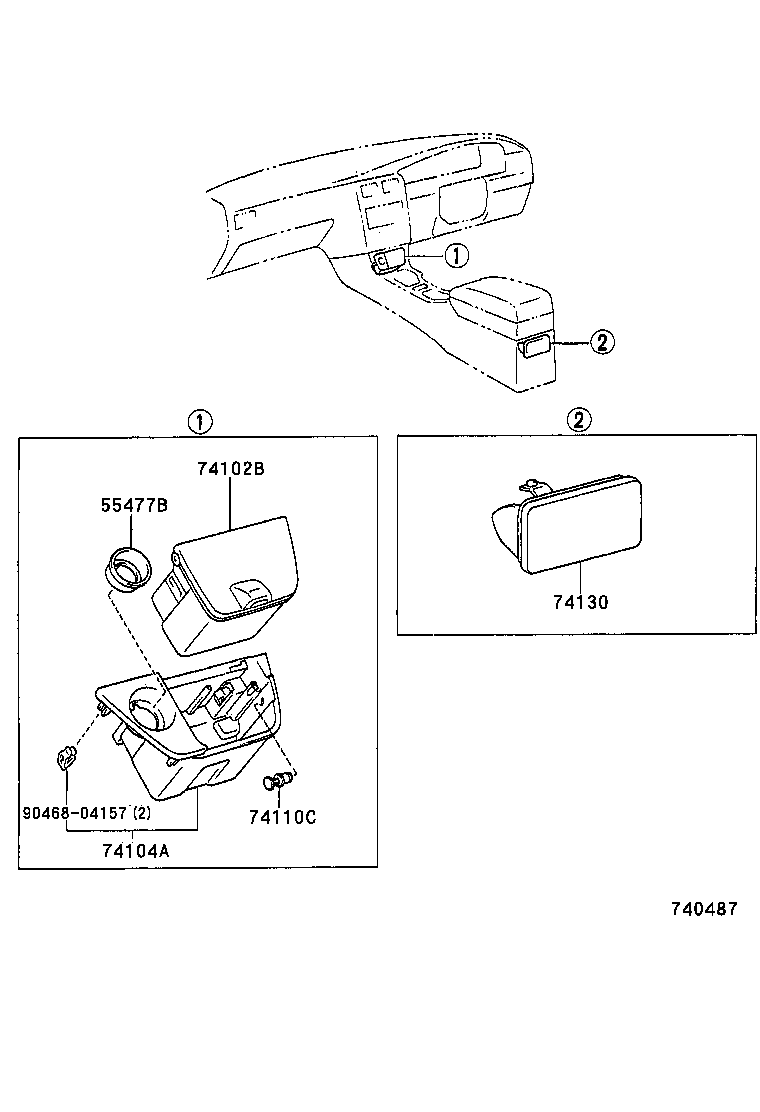

diagram 55477B 74102B 74104A 74110C 74130 9046804157
Part # Description Qty Price
55477B - BEZEL, CIGARETTE LIGHTER HOLE
55477-05010

AT190,CT190,ST191..UKP

 1
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-05020C0

AT190,CT190,ST191..UKP..LHD

BLACK,TRIM1#,8#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-05020C0

AT190,CT190,ST191..UKP..LHD

BLACK,TRIM1#,8#

 1
74110C - CLIP, FRONT ASH RECEPTACLE, INNER
90467-0711322

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-05010C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
Common parts
90468-04157
