CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

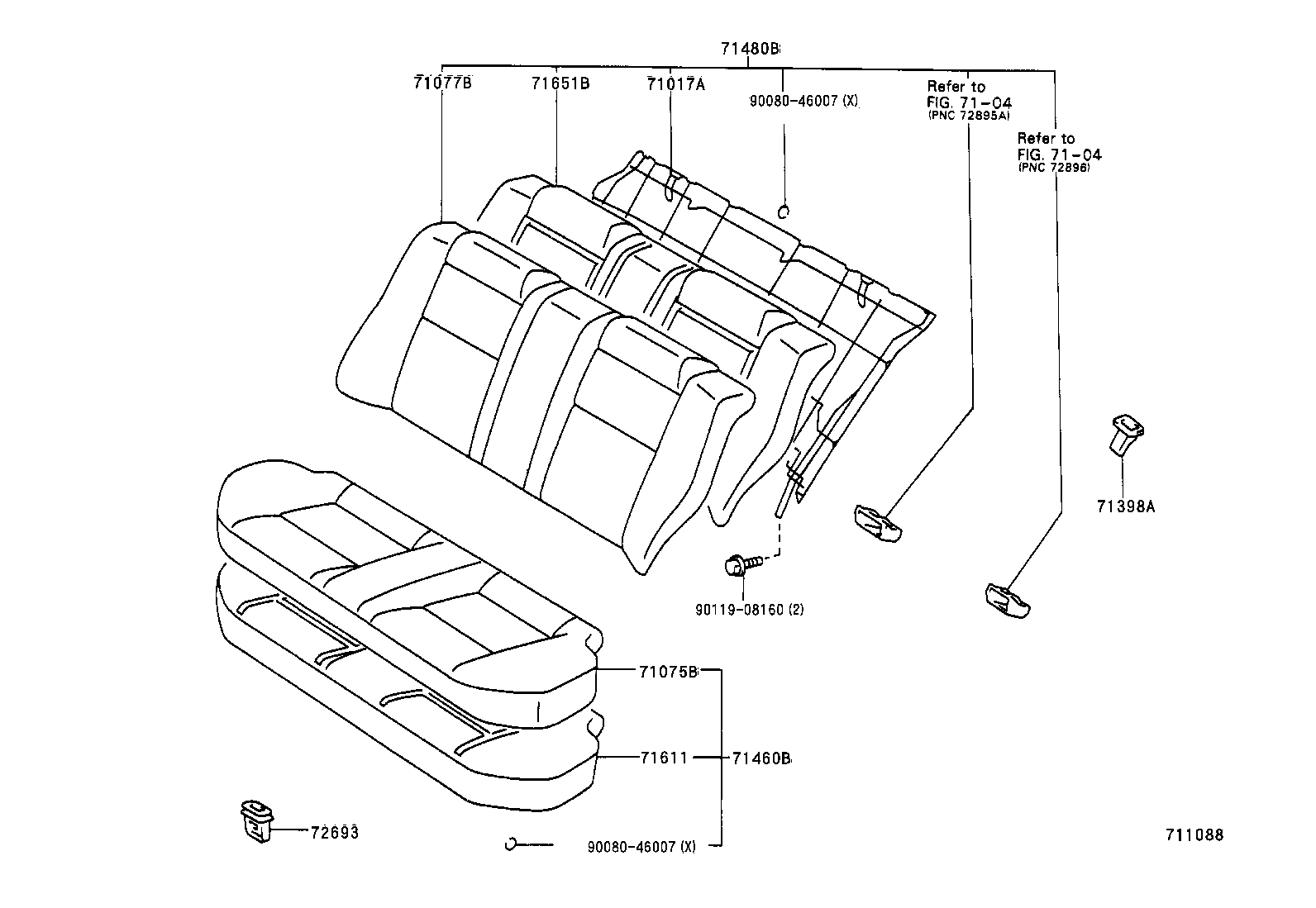

Click highlighted areas on diagram

BENCH SEAT

diagram 71017A 71075B 71077B 71398A 71460B 71480B 71611 71651B 72693 9008046007 9008046007 9011908160
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-05150J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
71075-05150B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-05140J0

CT190,ST191..UKP

***,DK. BLUE,TRIM8#

 1
71460-05140B0

CT190,ST191..UKP

***,SHADOW GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71503-05010

AT190,CT190,ST191..UKP

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

AT190,CT190,ST191..UKP

 4
Common parts
90080-46007
90119-08160

(9601- )UKP

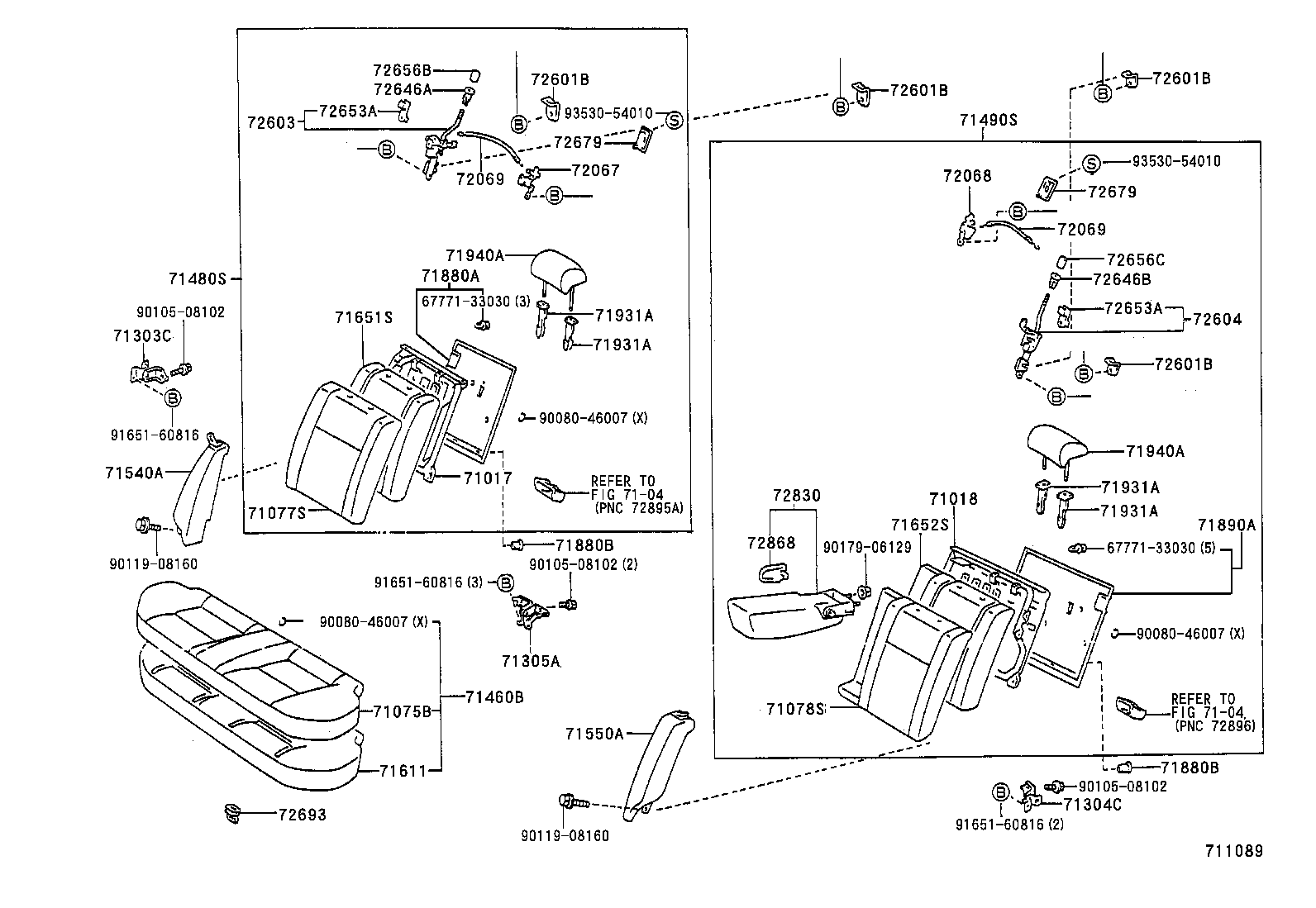

Click highlighted areas on diagram

diagram 6777133030 6777133030 71017 71018 7104 7104 71075B 71077S 71078S 71303C 71304C 71305A 71460B 71480S 71490S 71540A 71550A 71611 71651S 71652S 71880A 71880B 71880B 71890A 71931A 71931A 71931A 71931A 71940A 71940A 72067 72068 72069 72069 72601B 72601B 72601B 72601B 72603 72604 72646A 72646B 72653A 72653A 72656B 72656C 72679 72679 72693 72830 72868 9008046007 9008046007 9008046007 9010508102 9010508102 9010508102 9011908160 9011908160 9017906129 9165160816 9165160816 9165160816 9353054010 9353054010
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-05010

AT190,CT190,ST191..UKP

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-05010

CT190,ST191..UKP

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-05150J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
71075-05150B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-05120B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
71077-05120J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-05090B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
71078-05090J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-05010

AT190,CT190,ST191..UKP

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-05010

AT190,CT190,ST191..UKP

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-05020

AT190,CT190,ST191..UKP

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-05140J0

CT190,ST191..UKP

***,DK. BLUE,TRIM8#

 1
71460-05140B0

CT190,ST191..UKP

***,SHADOW GRAY,TRIM1#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-05200B0

CT190,ST191..UKP

***,SHADOW GRAY,TRIM1#

 1
71480-05200J0

CT190,ST191..UKP

***,DK. BLUE,TRIM8#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-05170J0

CT190,ST191..UKP

***,DK. BLUE,TRIM8#

 1
71490-05170B0

CT190,ST191..UKP

***,SHADOW GRAY,TRIM1#

 1
71540A - BACK ASSY, REAR SIDE SEAT, RH
71540-05040J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
71540-05040B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
71550A - BACK ASSY, REAR SIDE SEAT, LH
71550-05040B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
71550-05040J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
71611 - PAD, REAR SEAT CUSHION
71503-05010

AT190,CT190,ST191..UKP

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-05010

AT190,CT190,ST191..UKP

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-05010

CT190,ST191..UKP

 1
71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH
71880-05011C4

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
71880B - CLIP(FOR REAR SEAT BACK CARPET)
90467-0906622

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 4
71880B - CLIP(FOR REAR SEAT BACK CARPET)
90467-0906622

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 4
71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH
71890-05011C4

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-05010J0

AT190,CT190,ST191..UKP

W(LOCK),DK. BLUE,TRIM8#

 2
71931-05010B0

AT190,CT190,ST191..UKP

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71930-05010B0

AT190,CT190,ST191..UKP

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931-05010J0

AT190,CT190,ST191..UKP

W/O(LOCK),DK. BLUE,TRIM8#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-05010J0

AT190,CT190,ST191..UKP

W(LOCK),DK. BLUE,TRIM8#

 2
71931-05010B0

AT190,CT190,ST191..UKP

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71930-05010B0

AT190,CT190,ST191..UKP

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931-05010J0

AT190,CT190,ST191..UKP

W/O(LOCK),DK. BLUE,TRIM8#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-05010J0

AT190,CT190,ST191..UKP

W(LOCK),DK. BLUE,TRIM8#

 2
71931-05010B0

AT190,CT190,ST191..UKP

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71930-05010B0

AT190,CT190,ST191..UKP

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931-05010J0

AT190,CT190,ST191..UKP

W/O(LOCK),DK. BLUE,TRIM8#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71930-05010J0

AT190,CT190,ST191..UKP

W(LOCK),DK. BLUE,TRIM8#

 2
71931-05010B0

AT190,CT190,ST191..UKP

W/O(LOCK),SHADOW GRAY,TRIM1#

 2
71930-05010B0

AT190,CT190,ST191..UKP

W(LOCK),SHADOW GRAY,TRIM1#

 2
71931-05010J0

AT190,CT190,ST191..UKP

W/O(LOCK),DK. BLUE,TRIM8#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-05030J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 2
71940-05030B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-05030J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 2
71940-05030B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 2
72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH
72067-20060

AT190,CT190,ST191..UKP

 1
72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH
72068-20060

AT190,CT190,ST191..UKP

 1
72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL
72069-20020

AT190,CT190,ST191..UKP

 2
72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL
72069-20020

AT190,CT190,ST191..UKP

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-20080

AT190,CT190,ST191..UKP

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-20080

AT190,CT190,ST191..UKP

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-20080

AT190,CT190,ST191..UKP

 2
72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK
72601-20080

AT190,CT190,ST191..UKP

 2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72603-20090

AT190,CT190,ST191..UKP

 1
72603-20170

AT190,CT190,ST191..UKP

 1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72604-20090

AT190,CT190,ST191..UKP

 1
72604-20170

AT190,CT190,ST191..UKP

 1
72646A - GROMMET, REAR SEAT BACK STOP BUTTON
72646-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
72646-05010J0

AT190,CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
72646B - GROMMET, REAR SEAT BACK STOP BUTTON
72646-05010J0

AT190,CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
72646-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
72653A - SNAP, REAR SEAT BACK LOCK ROD
69759-24020

AT190,CT190,ST191..UKP

LH

 1
69759-24010

AT190,CT190,ST191..UKP

RH

 1
72653A - SNAP, REAR SEAT BACK LOCK ROD
69759-24020

AT190,CT190,ST191..UKP

LH

 1
69759-24010

AT190,CT190,ST191..UKP

RH

 1
72656B - BUTTON, REAR SEAT BACK STOP RELEASE
72661-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
72661-05010J0

AT190,CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
72656C - BUTTON, REAR SEAT BACK STOP RELEASE
72661-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
72661-05010J0

AT190,CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
72679 - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-20020C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 2
72679 - BEZEL, REAR SEAT BACK LOCK CONTROL
72679-20020C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

AT190,CT190,ST191..UKP

 4
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-05020B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
72830-05020J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
72868 - COVER, CENTER ARMREST HINGE, RH
72868-05010J0

CT190,ST191..UKP

DK. BLUE,TRIM8#

 1
72868-05010B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
Common parts
67771-33030
90080-46007
90105-08102
90119-08160
90179-06129
91651-60816
93530-54010
Linked diagrams
7104
