CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

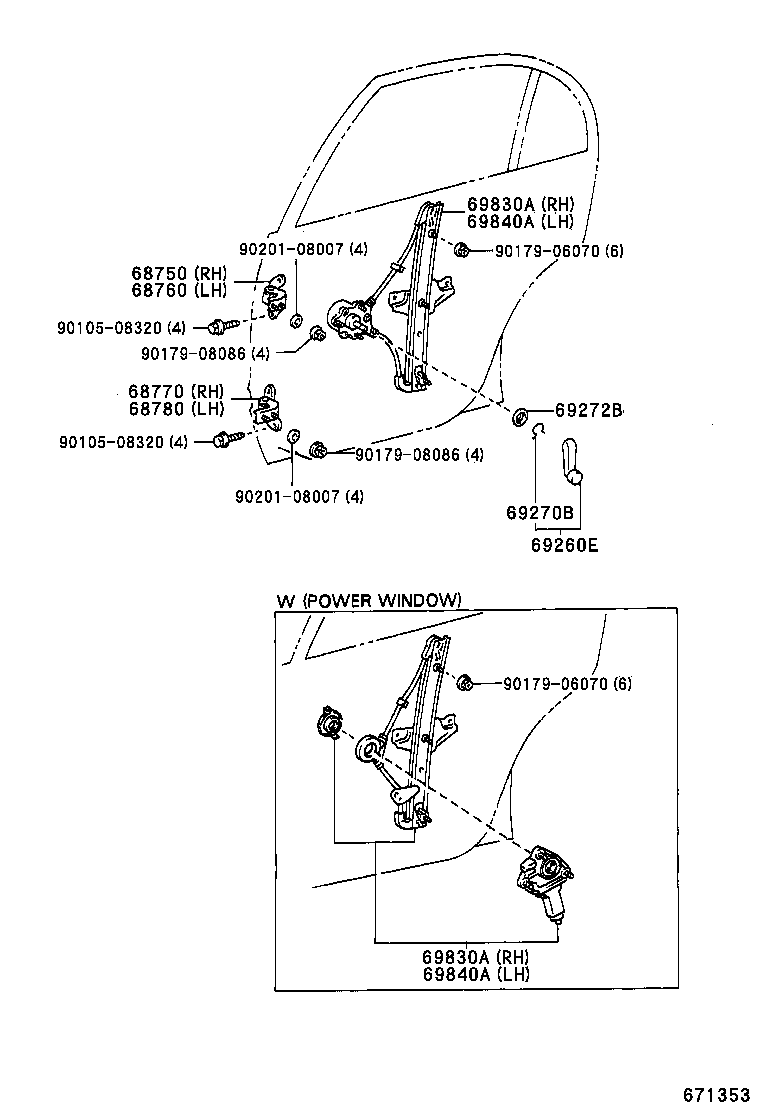

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69270B 69272B 69830A 69830A 69840A 69840A 9010508320 9010508320 9017906070 9017906070 9017908086 9017908086 9020108007 9020108007
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-05010

AT190,CT190,ST191..UKP

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-05010

AT190,CT190,ST191..UKP

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-05010

AT190,CT190,ST191..UKP

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-05010

AT190,CT190,ST191..UKP

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-05020

CT190,ST191..UKP

 1
69830A - REGULATOR ASSY, REAR DOOR WINDOW, RH
69830-05020

CT190,ST191..UKP

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-05020

CT190,ST191..UKP

 1
69840A - REGULATOR ASSY, REAR DOOR WINDOW, LH
69840-05020

CT190,ST191..UKP

 1
Common parts
90105-08320
90179-06070
90179-08086
90201-08007
