CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

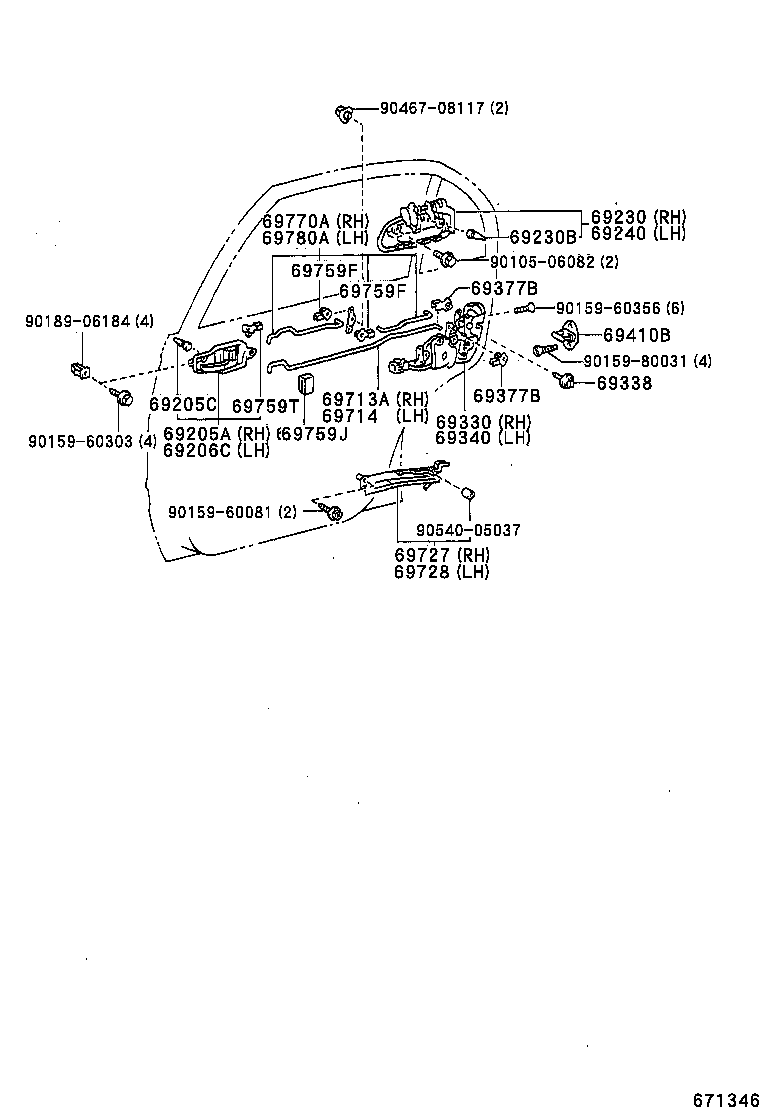

Click highlighted areas on diagram

diagram 69205A 69205C 69206C 69230 69230B 69240 69330 69338 69340 69377B 69377B 69410B 69713A 69714 69727 69728 69759F 69759F 69759J 69759T 69770A 69780A 9010506082 9015960081 9015960303 9015960356 9015980031 9018906184 9046708117 9054005037
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
69205-05010J0

AT190,CT190,ST191..UKP

DARK BLUE,TRIM8#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90080-54017

AT190,CT190,ST191..UKP

 2
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-05010B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
69206-05010J0

AT190,CT190,ST191..UKP

DARK BLUE,TRIM8#

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-05010

AT190,CT190,ST191..UKP

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90080-54017

AT190,CT190,ST191..UKP

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-05010

AT190,CT190,ST191..UKP

 1
69330 - LOCK ASSY, REAR DOOR, RH
69305-20060

AT190,CT190,ST191..UKP

 1
69338 - KNOB, CHILD PROTECTOR LOCK LEVER
69338-05010

AT190,CT190,ST191..UKP

 2
69340 - LOCK ASSY, REAR DOOR, LH
69306-20060

AT190,CT190,ST191..UKP

 1
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-24060

AT190,CT190,ST191..UKP

RH

 2
69759-24050

AT190,CT190,ST191..UKP

LH

 2
69377B - SNAP, REAR DOOR LOCK CONTROL ROD
69759-24060

AT190,CT190,ST191..UKP

RH

 2
69759-24050

AT190,CT190,ST191..UKP

LH

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

AT190,CT190,ST191..UKP

 2
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-20140

AT190,CT190,ST191..UKP

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-20140

AT190,CT190,ST191..UKP

 1
69727 - PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69727-20030

AT190,CT190,ST191..UKP

 1
69728 - PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69728-20030

AT190,CT190,ST191..UKP

 1
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24030

AT190,CT190,ST191..UKP

RED

 2
69759-20380

AT190,CT190,ST191..UKP

BLACK

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24030

AT190,CT190,ST191..UKP

RED

 2
69759-20380

AT190,CT190,ST191..UKP

BLACK

 2
69759J - SILENCER, DOOR LOCK LINK
69759-20390

AT190,CT190,ST191..UKP

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-05010

AT190,CT190,ST191..UKP

RH,PINK

 2
69759-05020

AT190,CT190,ST191..UKP

LH,YELLOW

 2
69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH
69770-20090

AT190,CT190,ST191..UKP

 1
69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH
69780-20090

AT190,CT190,ST191..UKP

 1
Common parts
90105-06082
90159-60081
90159-60303
90159-60356
90159-80031
90189-06184
90467-08117
90540-05037
