CT190L-BEMNX (1996)
Toyota Corona Sed (Ukp)

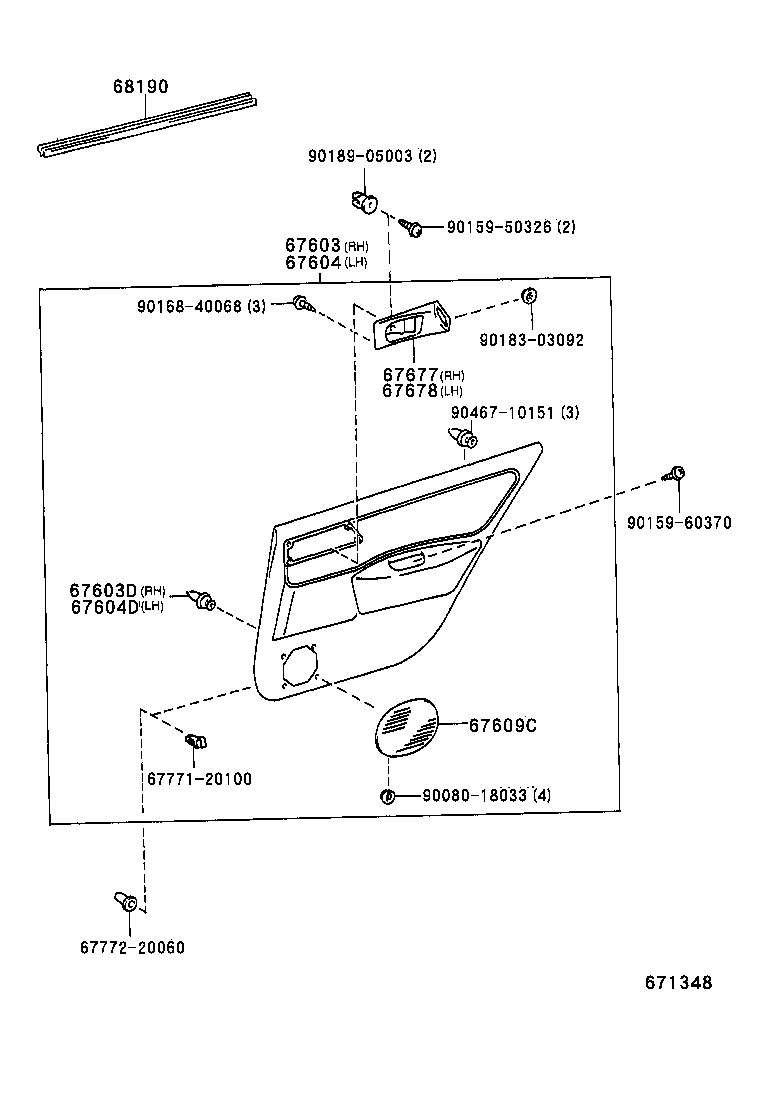

ILLUST NO. 1 OF 2(9601- )UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-05440B1 |
CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67630-05440J1 |
CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-20110 |
AT190,CT190,ST191..UKP |
7 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-05440B1 |
CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67640-05440J1 |
CT190,ST191..UKP DK. BLUE,TRIM8# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-20110 |
AT190,CT190,ST191..UKP |
7 | ||
| 67609C - GRILLE SUB-ASSY, REAR DOOR SPEAKER | ||||
| 67653-05020B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
2 | ||
| 67653-05020J0 |
AT190,CT190,ST191..UKP DK. BLUE,TRIM8# |
2 | ||
| 67677 - COVER, SIDE TRIM BOARD, REAR RH | ||||
| 67677-05020J0 |
AT190,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 67677-05020B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67678 - COVER, SIDE TRIM BOARD, REAR LH | ||||
| 67678-05020B0 |
AT190,CT190,ST191..UKP SHADOW GRAY,TRIM1# |
1 | ||
| 67678-05020J0 |
AT190,CT190,ST191..UKP DK.BLUE,TRIM8# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68174-05030 |
AT190,CT190,ST191..UKP LH |
1 | ||
| 68173-05010 |
AT190,CT190,ST191..UKP RH |
1 | ||
| 68173-05030 |
AT190,CT190,ST191..UKP RH |
1 | ||
| 68174-05010 |
AT190,CT190,ST191..UKP LH |
1 | ||
| Common parts | ||||
| 67771-20100 | ||||
| 67772-20060 | ||||
| 90080-18033 | ||||
| 90159-50326 | ||||
| 90159-60370 | ||||
| 90168-40068 | ||||
| 90183-03092 | ||||
| 90189-05003 | ||||
| 90467-10151 | ||||

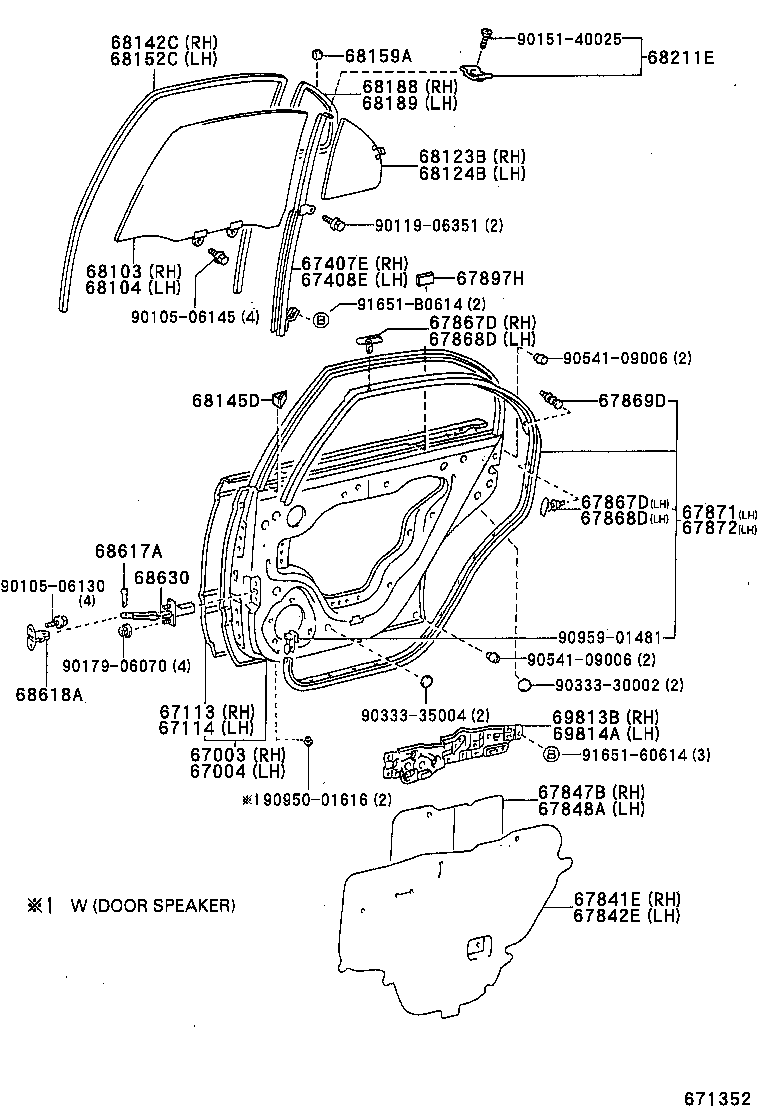

ILLUST NO. 2 OF 2(9601-9710)UKP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-05020 |
AT190,CT190,ST191..UKP |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-05020 |
AT190,CT190,ST191..UKP |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-05020 |
AT190,CT190,ST191..UKP |
12 | ||
| 67867-12150 |
AT190,CT190,ST191..UKP |
12 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-05020 |
AT190,CT190,ST191..UKP |
12 | ||
| 67867-12150 |
AT190,CT190,ST191..UKP |
12 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AT190,CT190,ST191..UKP |
12 | ||
| 67867-05020 |
AT190,CT190,ST191..UKP |
12 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AT190,CT190,ST191..UKP |
12 | ||
| 67867-05020 |
AT190,CT190,ST191..UKP |
12 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-12020 |
AT190,CT190,ST191..UKP |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-05070 |
AT190,CT190,ST191..UKP |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-05070 |
AT190,CT190,ST191..UKP |
1 | ||
| 67897H - CUSHION, REAR DOOR | ||||
| 67897-05010 |
AT190,CT190,ST191..UKP |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-05010 |
AT190,CT190,ST191..UKP *TEM,T=4.0,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-05010 |
AT190,CT190,ST191..UKP *TEM,T=4.0,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-05010 |
AT190,CT190,ST191..UKP *TEM,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-05010 |
AT190,CT190,ST191..UKP *TEM,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 68145-05010 |
AT190,CT190,ST191..UKP |
2 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 68159A - PAD, QUARTER WINDOW MOULDING, REAR NO.1 | ||||
| 68159-20020 |
AT190,CT190,ST191..UKP |
2 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 68211E - CLIP, DOOR GLASS WEATHERSTRIP | ||||
| 90904-67016 |
AT190,CT190,ST191..UKP |
2 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
AT190,CT190,ST191..UKP |
2 | ||
| 68618A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 68618-20010 |
AT190,CT190,ST191..UKP |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-05020 |
AT190,CT190,ST191..UKP |
2 | ||
| 69813B - PLATE, REAR DOOR WINDOW REGULATOR BASE, RH | ||||
| 69813-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| 69814A - PLATE, REAR DOOR WINDOW REGULATOR BASE, LH | ||||
| 69814-05010 |
AT190,CT190,ST191..UKP |
1 | ||
| Common parts | ||||
| 90105-06130 | ||||
| 90105-06145 | ||||
| 90119-06351 | ||||
| 90151-40025 | ||||
| 90179-06070 | ||||
| 90333-30002 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90950-01616 | ||||
| 90959-01481 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||
