CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

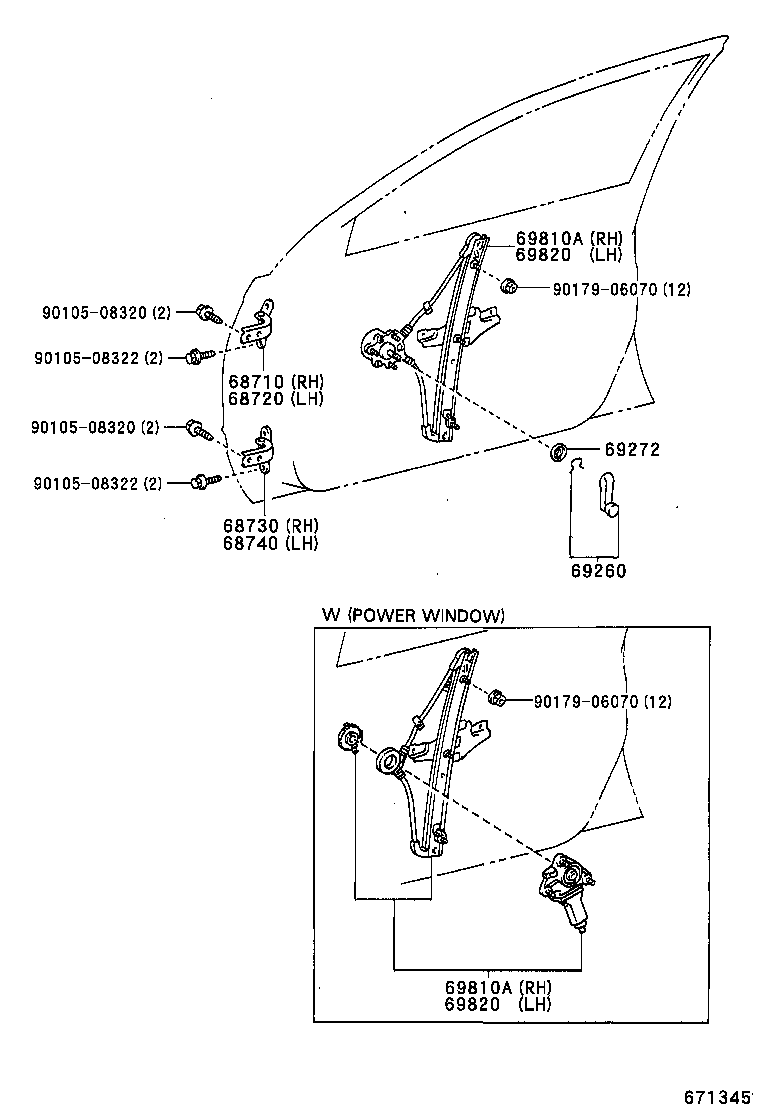

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69272 69810A 69810A 69820 69820 9010508320 9010508320 9010508322 9010508322 9017906070 9017906070
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-05010

AT190,CT190,ST191..UKP

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-05010

AT190,CT190,ST191..UKP

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-05010

AT190,CT190,ST191..UKP

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-05010

AT190,CT190,ST191..UKP

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-05020

CT190,ST191..UKP

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-05020

CT190,ST191..UKP

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-05020

CT190,ST191..UKP

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-05020

CT190,ST191..UKP

 1
Common parts
90105-08320
90105-08322
90179-06070
