CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

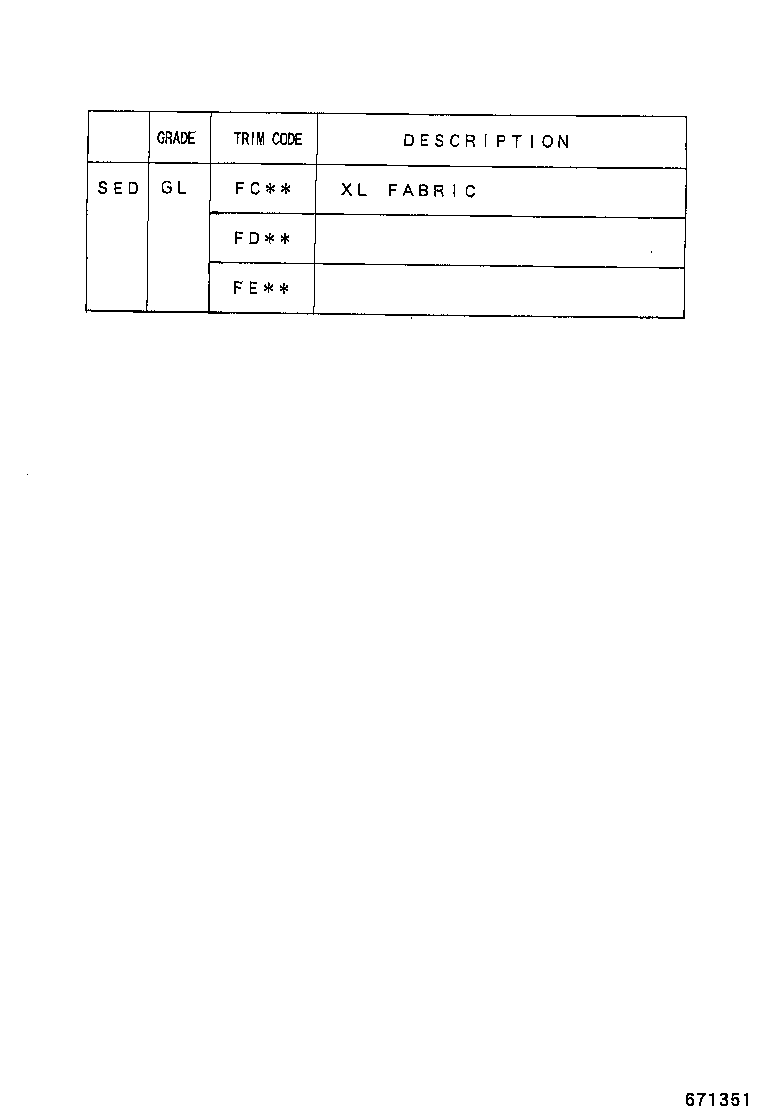

ILLUST NO. 1 OF 3(9601- )UKP

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601B 67601H 67601J 67602 67602A 67602B 67625B 67635 67651H 67652C 67655 67656 6777122040 67777 67778 68170 9015940206 9015950326 9015960370 9016840068 9016840068 9018303092 9018904102 9018905003 9018905150 9018905150 9046710151 9046805047 9356055016 9356055016
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-05010

CT190,ST191..UKP

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-05010

CT190,ST191..UKP

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-05180B1

CT190,ST191..UKP..LHD

SHADOW GRAY,TRIM1#

 1
67610-05180J1

CT190,ST191..UKP..LHD

DK.BLUE,TRIM8#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-0707122

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 2
67601H - RETAINER, DOOR TRIM, RH
67771-20110

AT190,CT190,ST191..UKP

MOSS GREEN

 2
67771-28030

AT190,CT190,ST191..UKP

YELLOW

 3
67771-28030

AT190,CT190,ST191..UKP

YELLOW

 2
67771-20110

AT190,CT190,ST191..UKP

MOSS GREEN

 3
67601J - RETAINER, DOOR TRIM, NO.2 RH
67771-28030

AT190,CT190,ST191..UKP

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-05180J1

CT190,ST191..UKP..LHD

DK.BLUE,TRIM8#

 1
67620-05180B1

CT190,ST191..UKP..LHD

SHADOW GRAY,TRIM1#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-28030

AT190,CT190,ST191..UKP

YELLOW

 3
67771-20110

AT190,CT190,ST191..UKP

MOSS GREEN

 2
67771-20110

AT190,CT190,ST191..UKP

MOSS GREEN

 3
67771-28030

AT190,CT190,ST191..UKP

YELLOW

 2
67602B - RETAINER, DOOR TRIM, NO.2 LH
67771-28030

AT190,CT190,ST191..UKP

 1
67625B - BRACKET, DOOR TRIM, NO.1 RH
67625-20100

AT190,CT190,ST191..UKP

 1
67635 - BRACKET, DOOR TRIM, NO.1 LH
67635-20040

AT190,CT190,ST191..UKP

 1
67651H - GRILLE, SPEAKER DOOR, RH
67651-05011B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
67651-05011J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 1
67652C - GRILLE, SPEAKER DOOR, LH
67652-05011B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
67652-05011J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67655-05020B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
67655-05020J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 1
67656 - GARNISH, DOOR TRIM, LH
67656-05020J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 1
67656-05020B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-05020J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 1
67777-05020B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-05020B0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
67778-05020J0

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-05020

AT190,CT190,ST191..UKP

RH

 1
68172-05010

AT190,CT190,ST191..UKP

LH

 1
68171-05010

AT190,CT190,ST191..UKP

RH

 1
68172-05020

AT190,CT190,ST191..UKP

LH

 1
Common parts
67771-22040
90159-40206
90159-50326
90159-60370
90168-40068
90183-03092
90189-04102
90189-05003
90189-05150
90467-10151
90468-05047
93560-55016

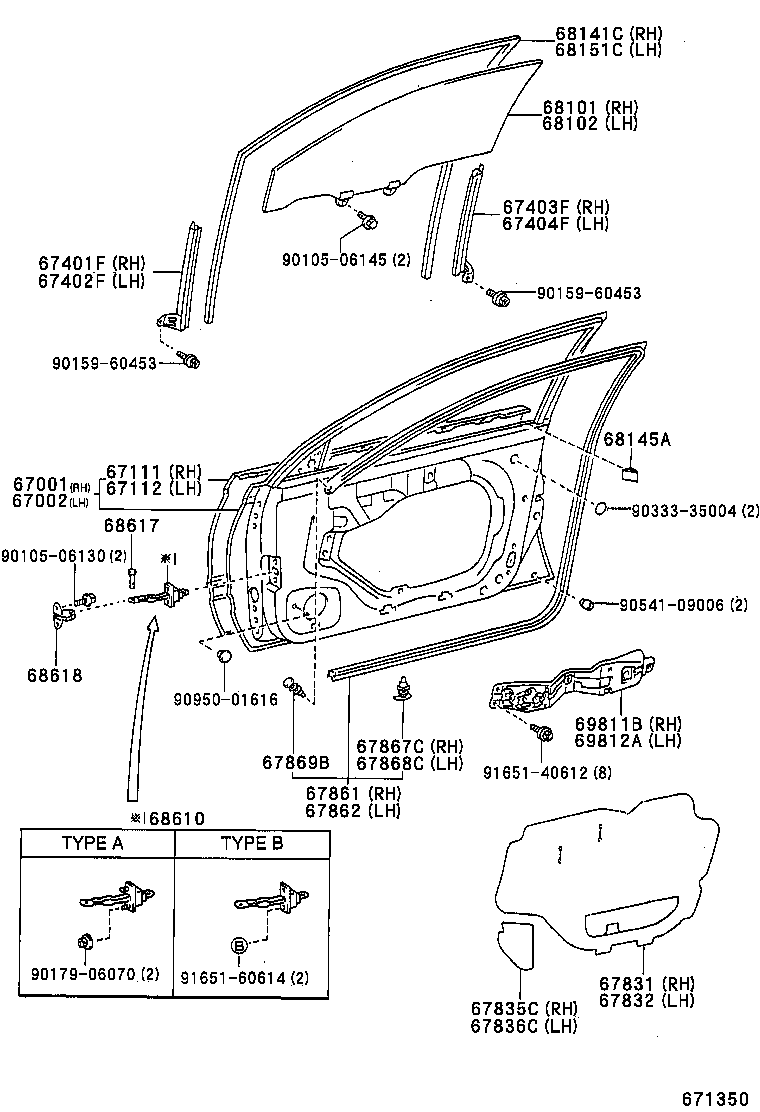

ILLUST NO. 2 OF 3(9601-9710)UKP

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67831 67832 67835C 67836C 67861 67862 67867C 67868C 67869B 68101 68102 68141C 68145A 68151C 68610 68617 68618 69811B 69812A 9010506130 9010506145 9015960453 9015960453 9017906070 9033335004 9054109006 9095001616 9165140612 9165160614
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-05020

AT190,CT190,ST191..UKP

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-05020

AT190,CT190,ST191..UKP

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-05010

AT190,CT190,ST191..UKP

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-05010

AT190,CT190,ST191..UKP

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-05010

AT190,CT190,ST191..UKP

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-05010

AT190,CT190,ST191..UKP

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-05010

AT190,CT190,ST191..UKP

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-05010

AT190,CT190,ST191..UKP

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67801-05020

AT190,CT190,ST191..UKP

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67802-05020

AT190,CT190,ST191..UKP

 1
67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH
67835-05010

AT190,CT190,ST191..UKP

 1
67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH
67836-05010

AT190,CT190,ST191..UKP

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-05030

AT190,CT190,ST191..UKP

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-05030

AT190,CT190,ST191..UKP

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

AT190,CT190,ST191..UKP

 11
67867-05010

AT190,CT190,ST191..UKP

 11
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

AT190,CT190,ST191..UKP

 11
67868-05010

AT190,CT190,ST191..UKP

 11
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-12020

AT190,CT190,ST191..UKP

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-05010

AT190,CT190,ST191..UKP

*TEM,T=4.0,GREEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-05010

AT190,CT190,ST191..UKP

*TEM,T=4.0,GREEN

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-05010

AT190,CT190,ST191..UKP

 1
68145A - CUSHION, FRONT DOOR WINDOW
68145-05010

AT190,CT190,ST191..UKP

 2
68151C - RUN, FRONT DOOR GLASS, LH
68151-05010

AT190,CT190,ST191..UKP

 1
68610 - CHECK ASSY, FRONT DOOR
68610-20151

AT190,CT190,ST191..UKP

TYPE B:REFER TO ILLUSTRATION

 2
68610-05020

AT190,CT190,ST191..UKP

TYPE A:REFER TO ILLUSTRATION

 2
68617 - PIN, FRONT DOOR CHECK
68617-20011

AT190,CT190,ST191..UKP

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-20010

AT190,CT190,ST191..UKP

 2
69811B - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH
69811-05010

AT190,CT190,ST191..UKP

 1
69812A - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH
69812-05010

AT190,CT190,ST191..UKP

 1
Common parts
90105-06130
90105-06145
90159-60453
90179-06070
90333-35004
90541-09006
90950-01616
91651-40612
91651-60614

ILLUST NO. 3 OF 3(9601-9710)UKP

Click highlighted areas on diagram

diagram
Part # Description Qty Price
