CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

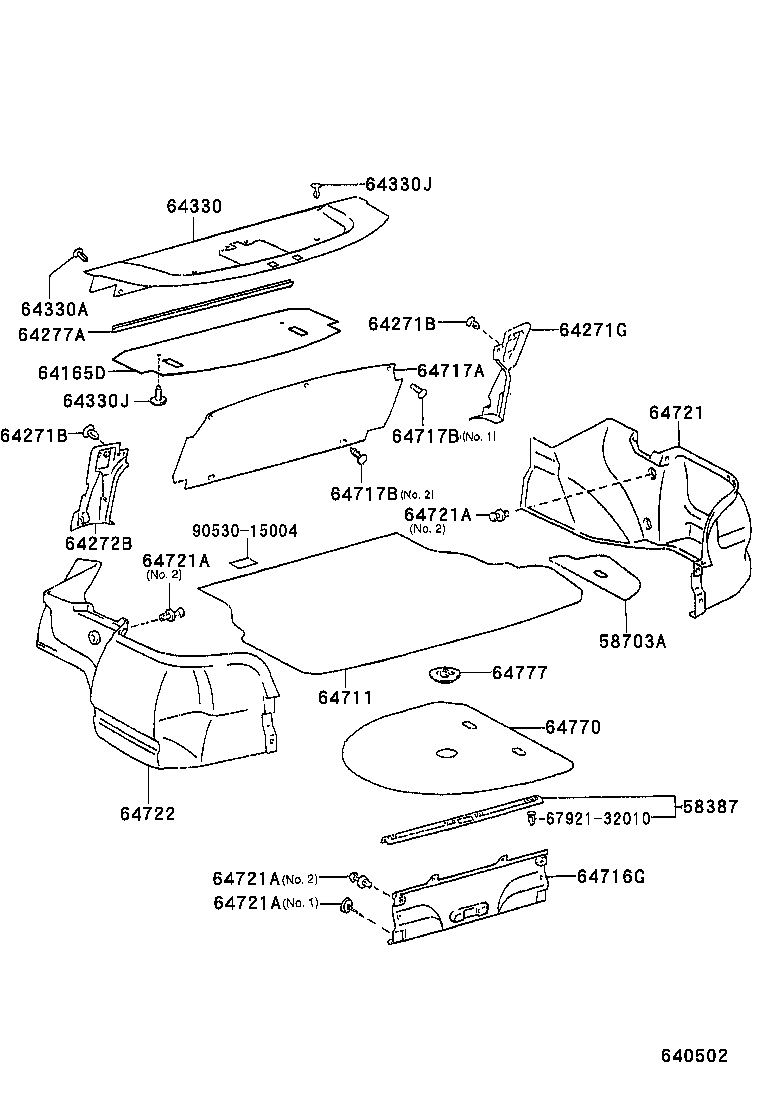

Click highlighted areas on diagram

diagram 58387 58703A 64165D 64271B 64271B 64271G 64272B 64277A 64330 64330A 64330J 64330J 64711 64716G 64717A 64717B 64717B 64721 64721A 64721A 64721A 64721A 64722 64770 64777 6792132010 9053015004
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-05010C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-05011

AT190,CT190,ST191..UKP

 1
64165D - COVER, UPPER BACK PANEL HOLE, NO.1
64165-05010

AT190,CT190,ST191..UKP

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-10018

AT190,CT190,ST191..UKP

 4
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-10018

AT190,CT190,ST191..UKP

 4
64271G - BOARD, ROOM PARTITION, RH
64271-05020C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-05020C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
64277A - MOULDING, ROOM PARTITION TRIM
64277-05010C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-05010B0

CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 1
64330-05010J1

CT190,ST191..UKP

DK.BLUE,TRIM8#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-07043W3

AT190,CT190,ST191..UKP

DK.BLUE,TRIM8#

 3
90467-07043P0

AT190,CT190,ST191..UKP

SHADOW GRAY,TRIM1#

 3
64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-06016C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 2
64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-06016C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 2
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-05030C1

CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
64716G - COVER, LUGGAGE COMPARTMENT TRIM, REAR
64716-05011C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-05030C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08056C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#,NO.1

 4
90467-06150C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#,NO.2

 14
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08056C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#,NO.1

 4
90467-06150C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#,NO.2

 14
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08056C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#,NO.1

 4
90467-06150C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#,NO.2

 14
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08056C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#,NO.1

 4
90467-06150C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#,NO.2

 14
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-05020C0

AT190,CT190,ST191..UKP

BLACK,TRIM1#,8#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-05010

AT190,CT190,ST191..UKP

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32030

AT190,CT190,ST191..UKP

 1
Common parts
67921-32010
90530-15004
