CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )UKP

Click highlighted areas on diagram

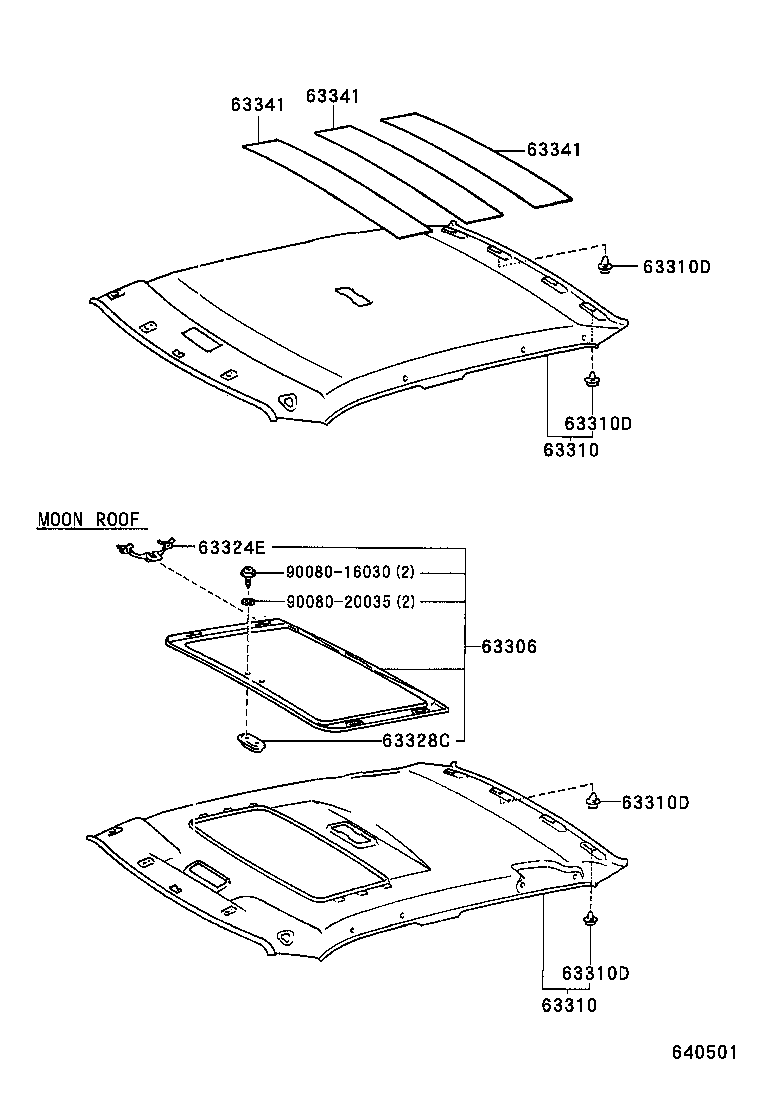

diagram 63306 63310 63310 63310D 63310D 63310D 63310D 63324E 63328C 63341 63341 63341 9008016030 9008020035
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-0W010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 1
63310 - HEADLINING ASSY, ROOF
63310-05100B0

AT190,CT190,ST191..UKP

MEDIUM GRAY,TRIM1#,8#

 1
63310-05120B0

AT190,CT190,ST191..UKP

W(MOON ROOF),MEDIUM GRAY,TRIM1#,8#

 1
63310 - HEADLINING ASSY, ROOF
63310-05100B0

AT190,CT190,ST191..UKP

MEDIUM GRAY,TRIM1#,8#

 1
63310-05120B0

AT190,CT190,ST191..UKP

W(MOON ROOF),MEDIUM GRAY,TRIM1#,8#

 1
63310D - CLIP, ROOF HEADLINING
90467-05021B2

AT190,CT190,ST191..UKP

MD.GRAY,TRIM1#,8#

 2
63310D - CLIP, ROOF HEADLINING
90467-05021B2

AT190,CT190,ST191..UKP

MD.GRAY,TRIM1#,8#

 2
63310D - CLIP, ROOF HEADLINING
90467-05021B2

AT190,CT190,ST191..UKP

MD.GRAY,TRIM1#,8#

 2
63310D - CLIP, ROOF HEADLINING
90467-05021B2

AT190,CT190,ST191..UKP

MD.GRAY,TRIM1#,8#

 2
63324E - SPRING, SUNSHADE LOCK
63324-05010

AT190,CT190,ST191..UKP

 4
63328C - KNOB, SUNSHADE TRIM
63328-0W010B0

AT190,CT190,ST191..UKP

GRAY,TRIM1#,8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-05010

AT190,CT190,ST191..UKP

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-05010

AT190,CT190,ST191..UKP

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-05010

AT190,CT190,ST191..UKP

 3
Common parts
90080-16030
90080-20035
