CT190L-BEMNX (1996)

Toyota Corona Sed (Ukp)

Production Jan 1996 - Oct 1997
Engine 2CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9710)UKP

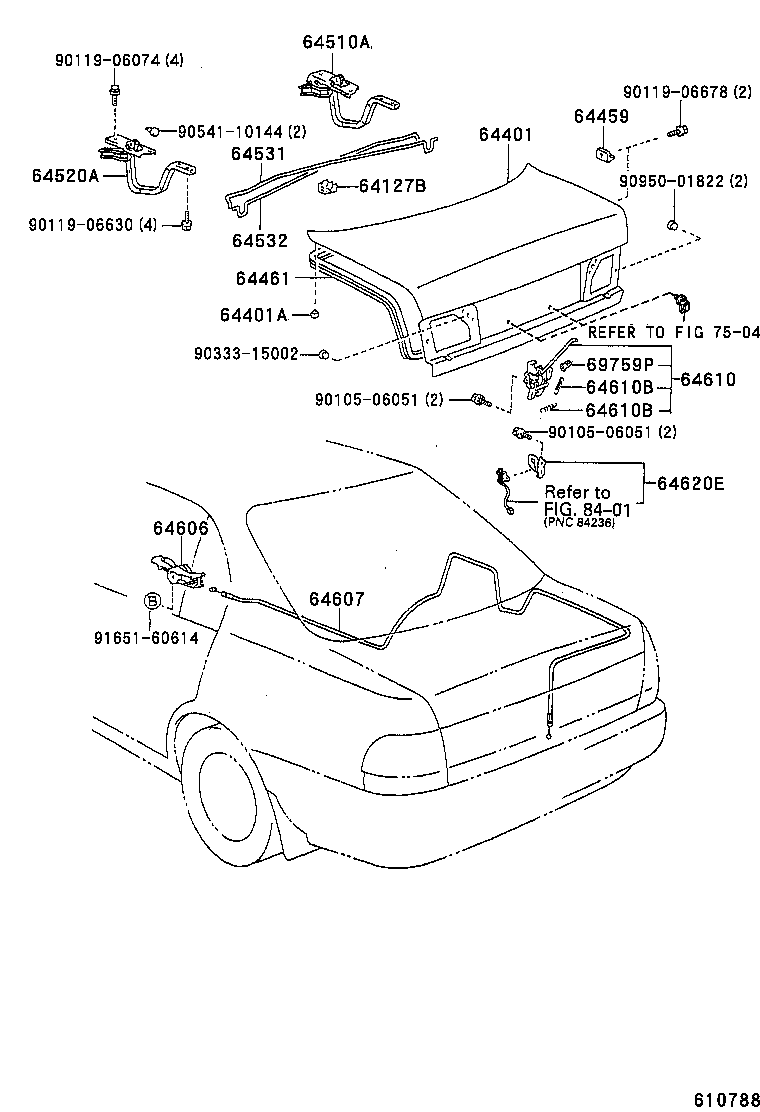

Click highlighted areas on diagram

diagram 64127B 64401 64401A 64459 64461 64510A 64520A 64531 64532 64606 64607 64610 64610B 64610B 64620E 69759P 7504 9010506051 9010506051 9011906074 9011906630 9011906678 9033315002 9054110144 9095001822 9165160614
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-20120

AT190,CT190,ST191..UKP

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-05010

AT190,CT190,ST191..UKP

W(LICENCE PLATE LAMP)

 1
64401-05020

AT190,CT190,ST191..UKP

W(REAR SPOILER & LICENCE PLATE LAMP)

 1
64401-05030

AT190,CT190,ST191..UKP

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06054

AT190,CT190,ST191..UKP

 2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
64459-20010

AT190,CT190,ST191..UKP

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-05010

AT190,CT190,ST191..UKP

 1
64510A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20170

AT190,CT190,ST191..UKP

 1
64520A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20160

AT190,CT190,ST191..UKP

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-05010

AT190,CT190,ST191..UKP

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-05010

AT190,CT190,ST191..UKP

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20091

AT190,CT190,ST191..UKP..LHD

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-05010

AT190,CT190,ST191..UKP

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20220

AT190,CT190,ST191..UKP

 1
64610B - SPRING, TENSION(FOR LOCK)
90506-06009

AT190,CT190,ST191..UKP

WD=0.55,CW=15.5

 1
90506-05002

AT190,CT190,ST191..UKP

WD=0.55,CW=17.25

 1
64610B - SPRING, TENSION(FOR LOCK)
90506-06009

AT190,CT190,ST191..UKP

WD=0.55,CW=15.5

 1
90506-05002

AT190,CT190,ST191..UKP

WD=0.55,CW=17.25

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-20140

AT190,CT190,ST191..UKP

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-20110

AT190,CT190,ST191..UKP

 1
Common parts
90105-06051
90119-06074
90119-06630
90119-06678
90333-15002
90541-10144
90950-01822
91651-60614
Linked diagrams
7504
